Home
>>
BMW
>>
2001
>>
X5 3.0i (E53) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Radio
>>
Radio (Top Hi-FI System (Harman&Kardon) Up to 09/00)
Radio (Top Hi-FI System (Harman&Kardon) Up to 09/00)

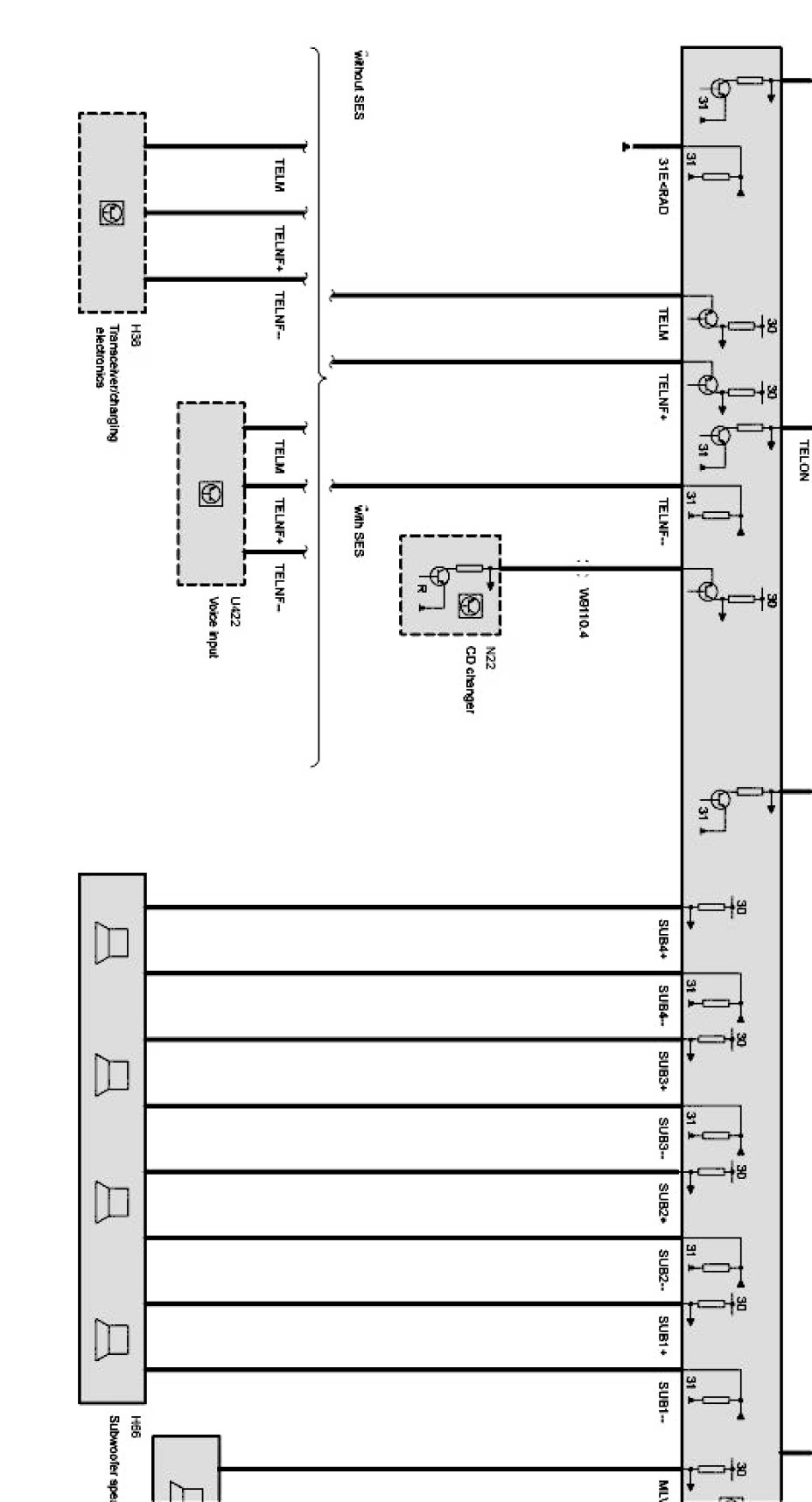

E53 Radio Part 1 Of 6:

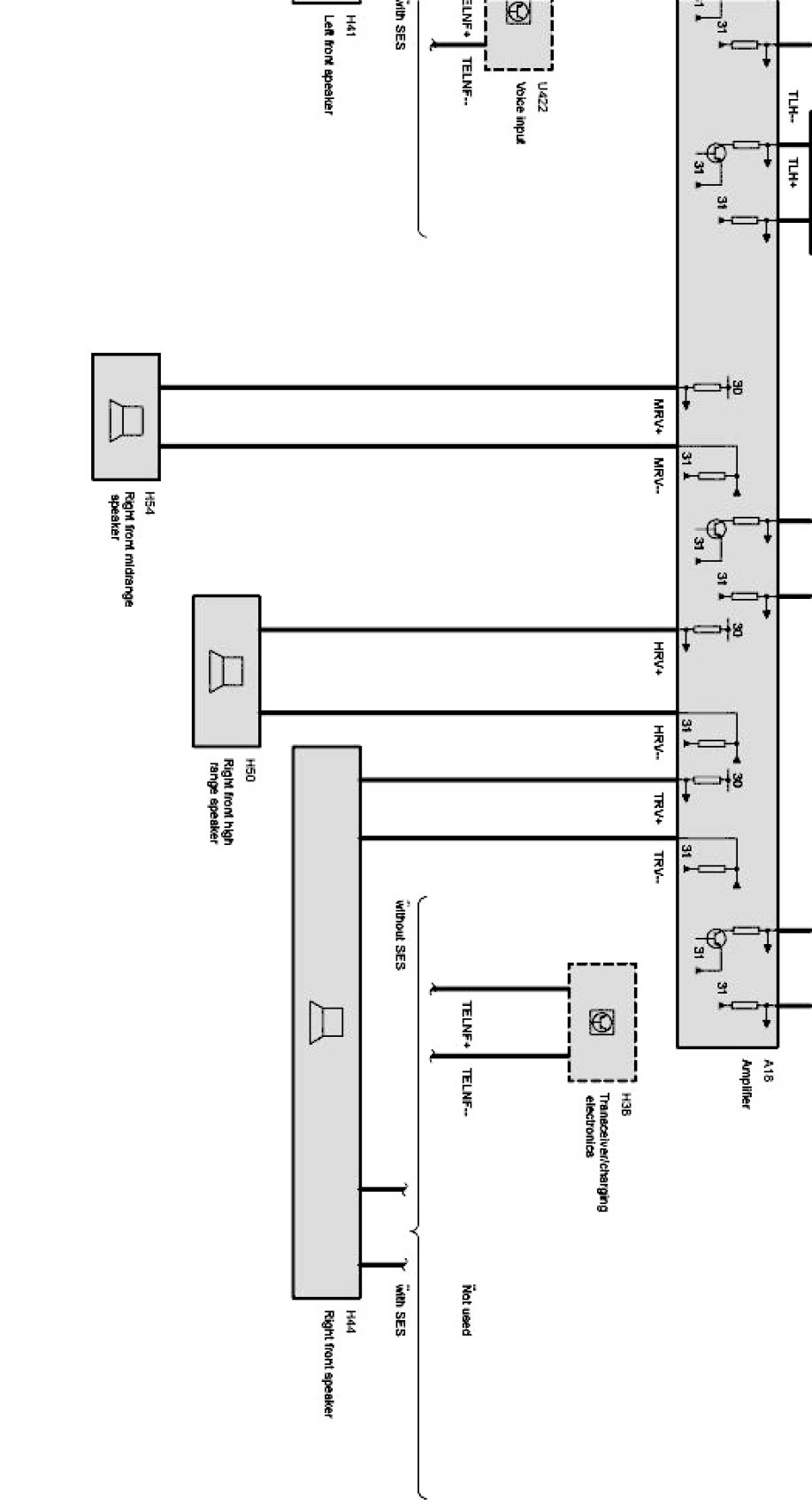

E53 Radio Part 2 Of 6:

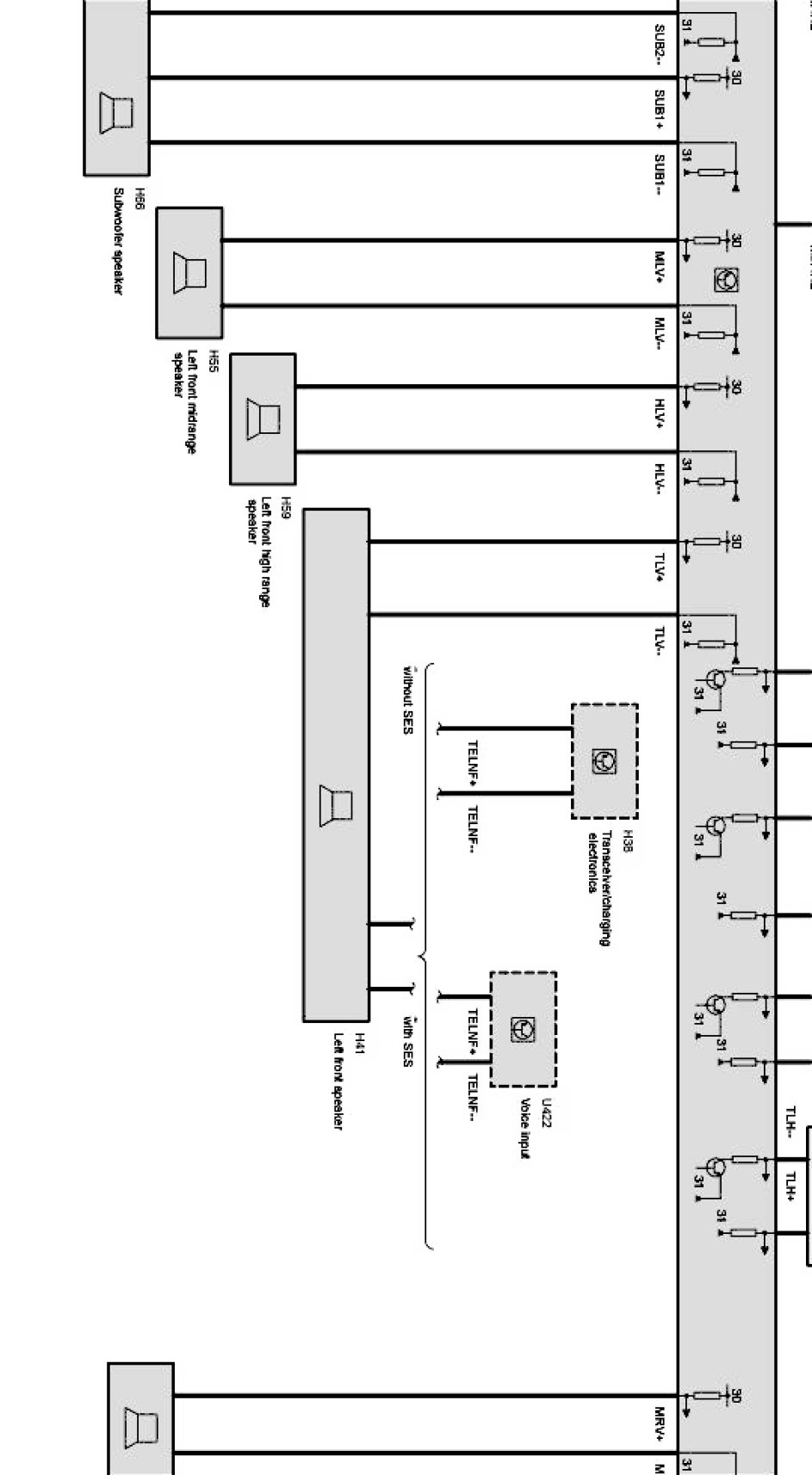

E53 Radio Part 3 Of 6:

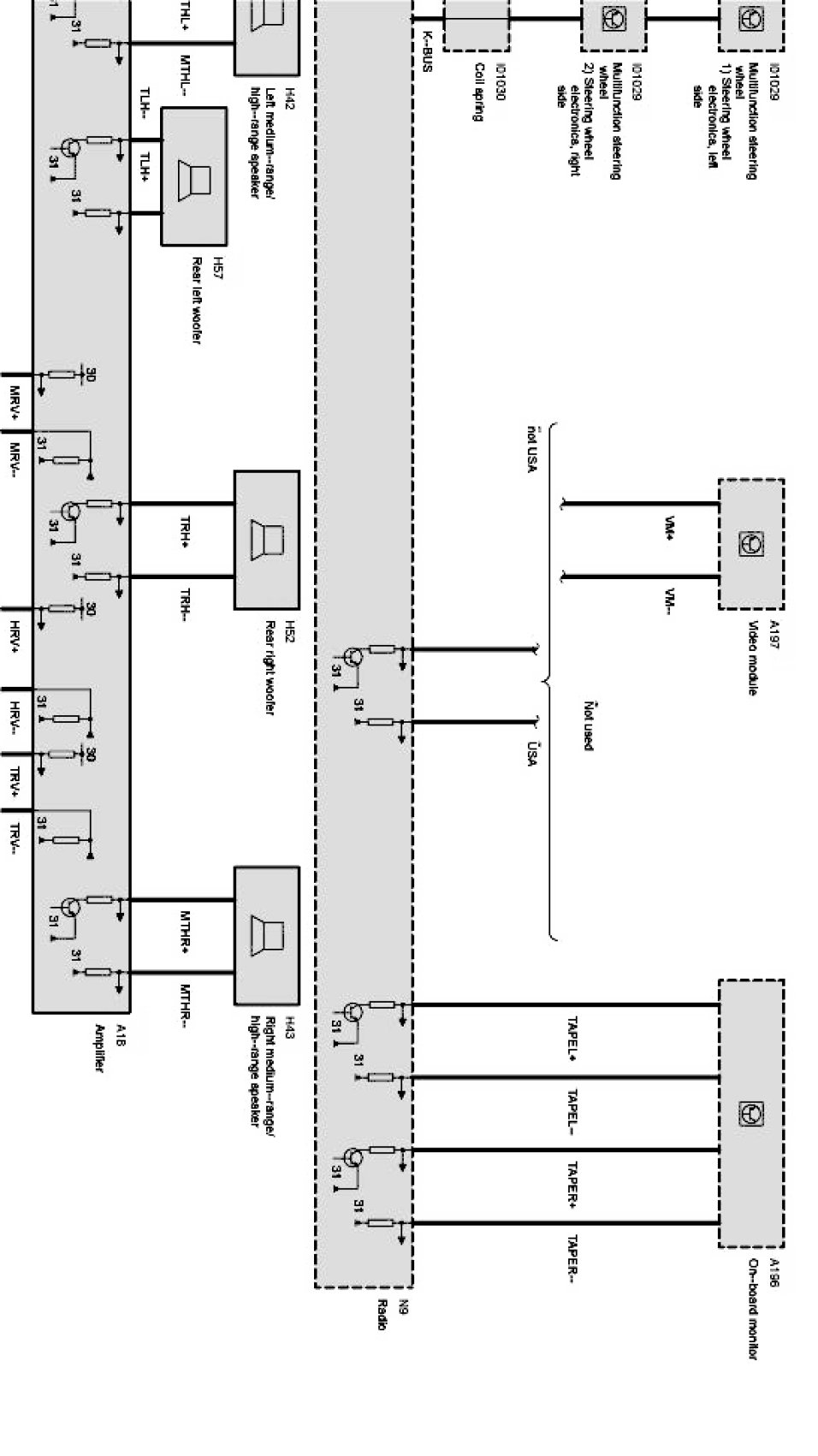

E53 Radio Part 4 Of 6:

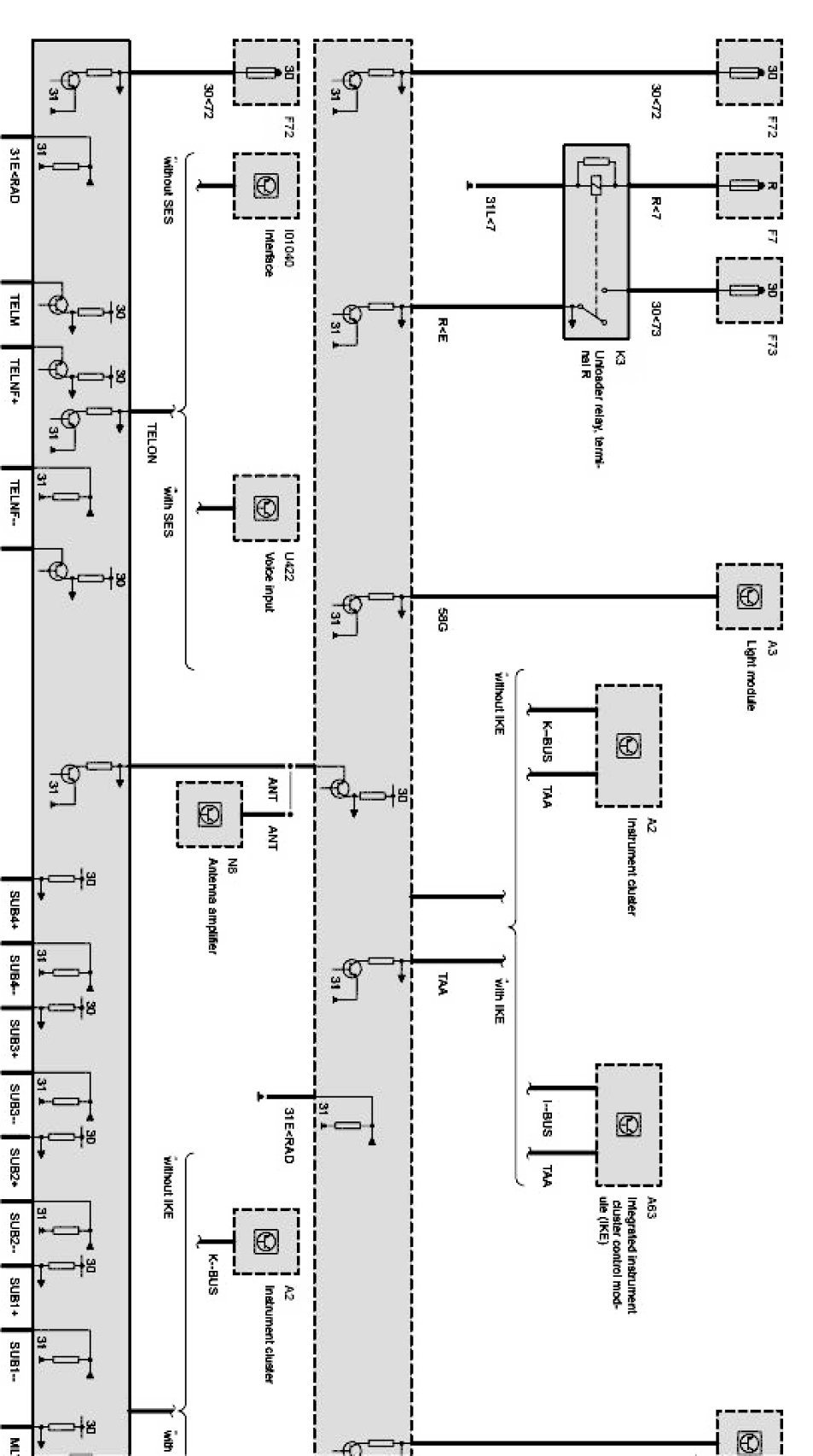

E53 Radio Part 5 Of 6:

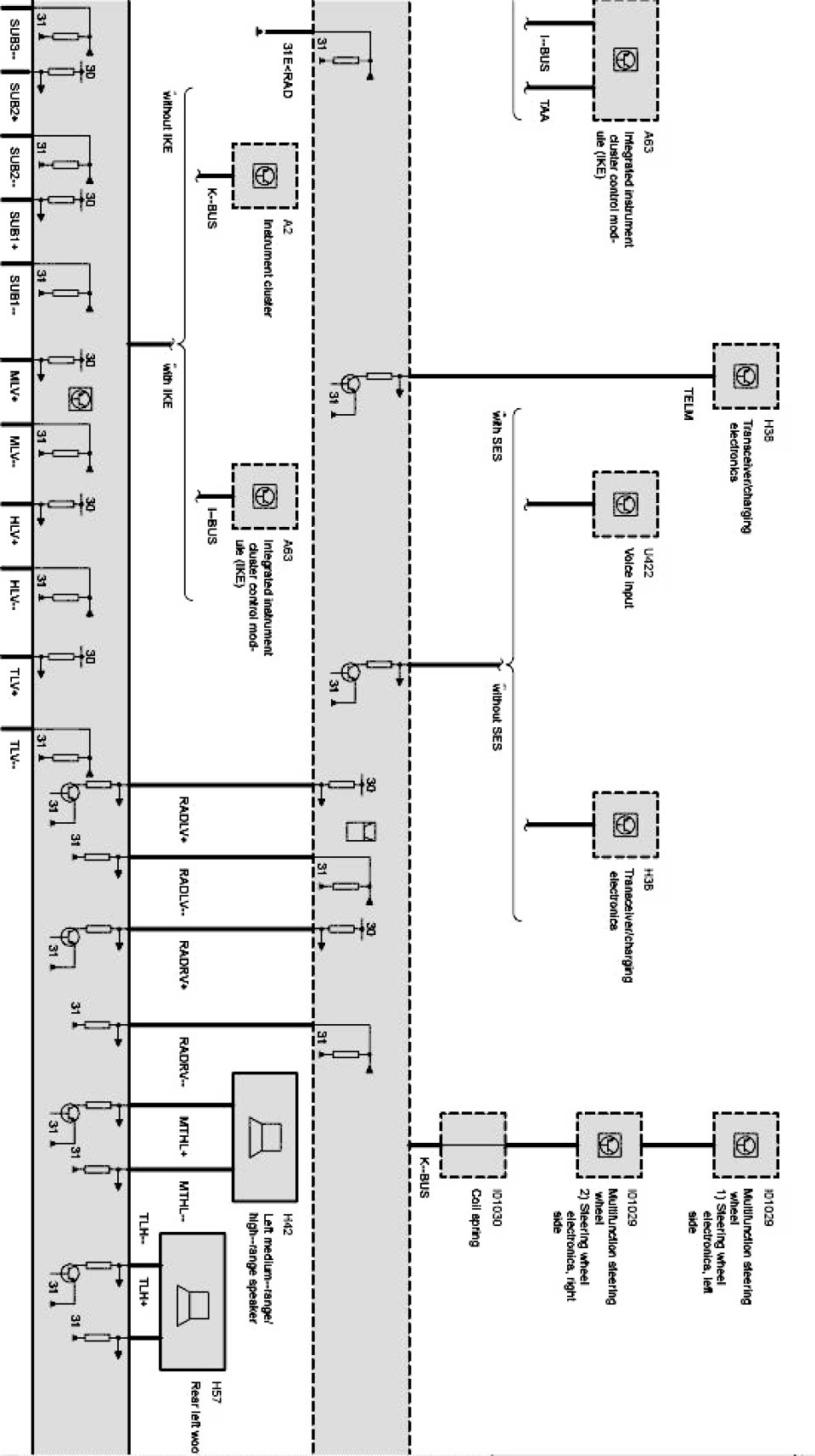

E53 Radio Part 6 Of 6:
