Radio (HiFi System (10 Speakers) Without BM on-Board Monitor As of 09/00 Up to 09/01)

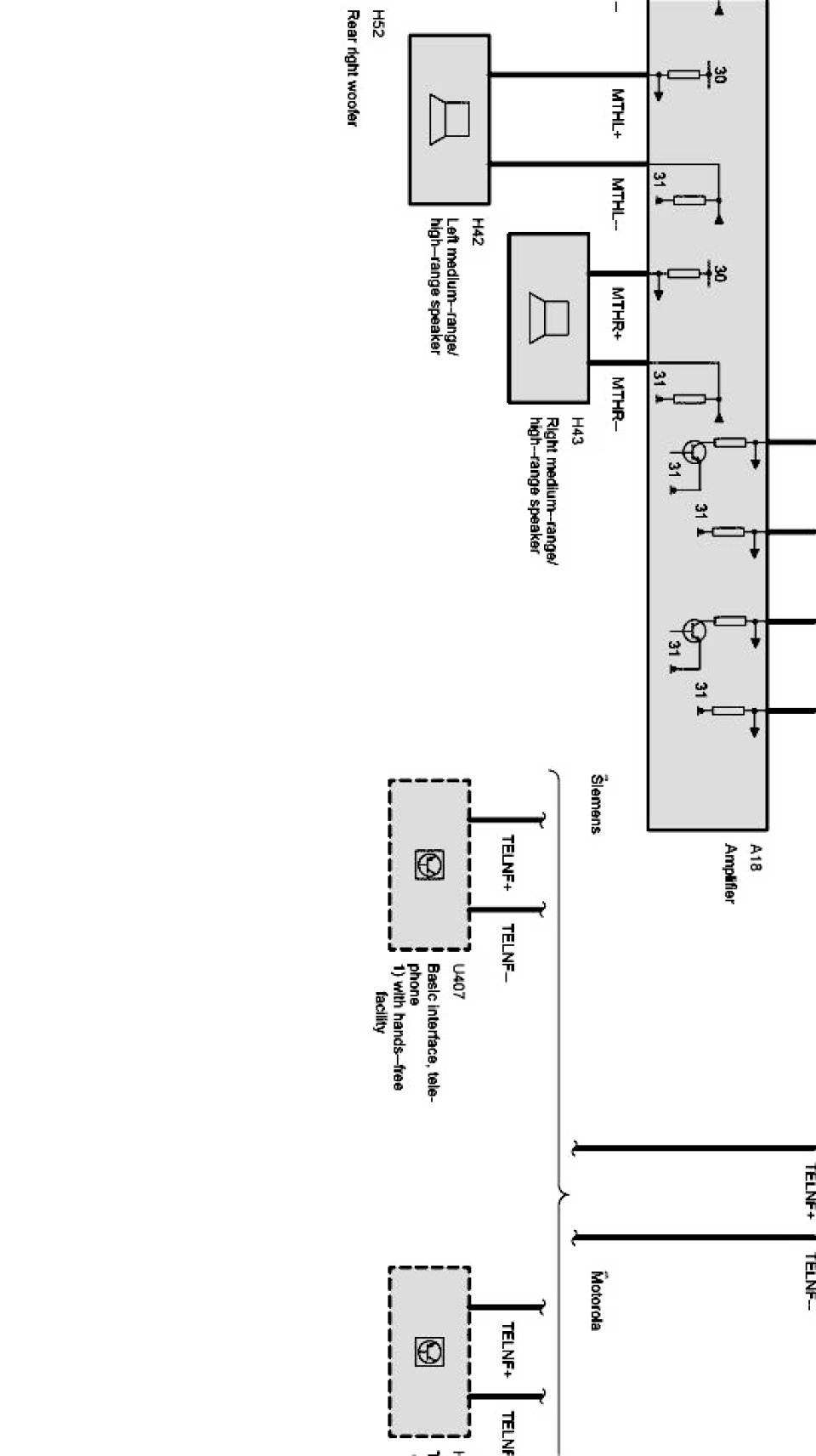

E53 Radio Part 1 Of 10:

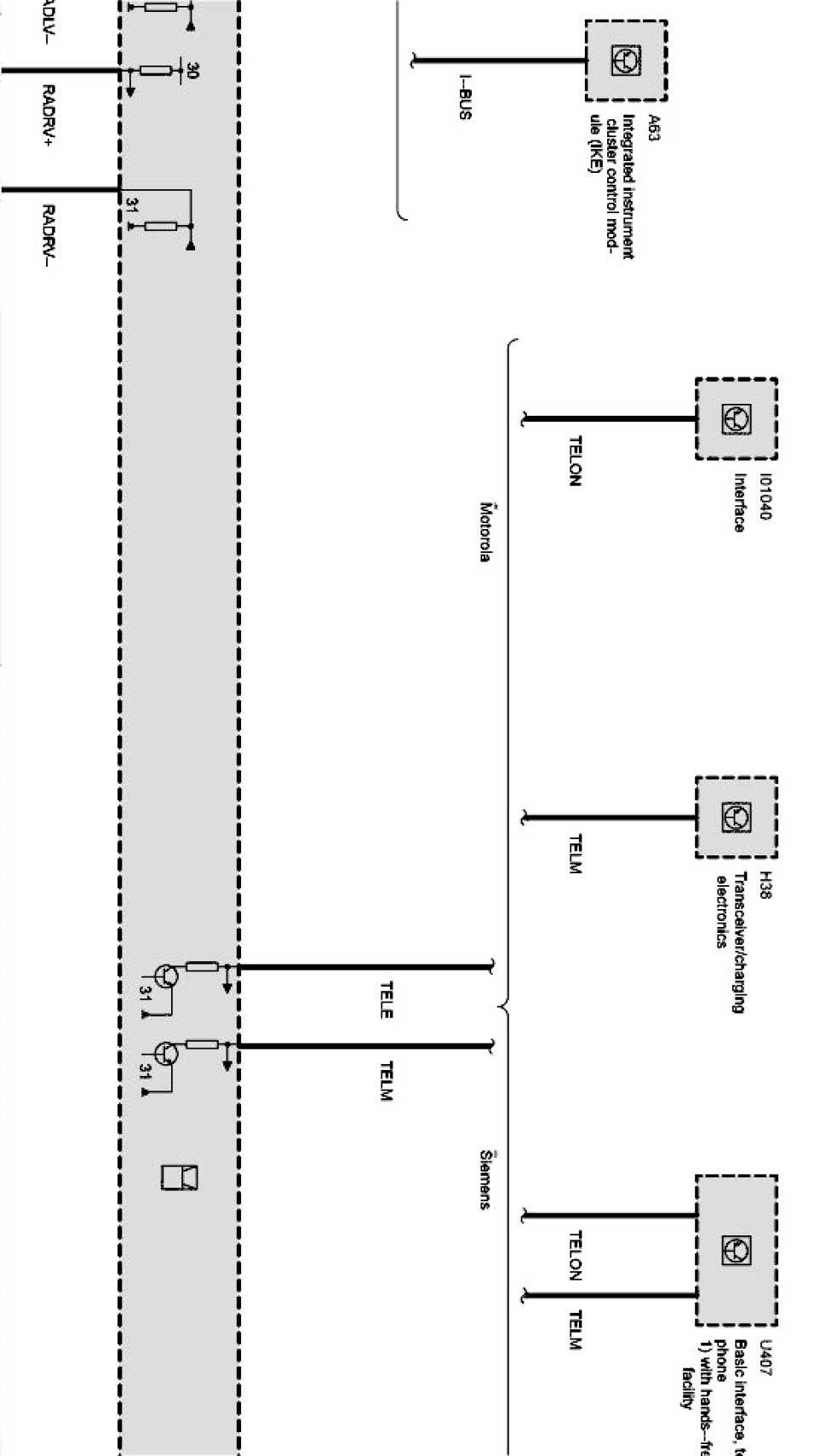

E53 Radio Part 2 Of 10:



E53 Radio Part 3 Of 10:



E53 Radio Part 4 Of 10:



E53 Radio Part 5 Of 10:



E53 Radio Part 6 Of 10:



E53 Radio Part 7 Of 10:



E53 Radio Part 8 Of 10:



E53 Radio Part 9 Of 10:



E53 Radio Part 10 Of 10:
