Front Loudspeaker (W/O TEL Telephone Interface W/O BIT Basis Interface Telephone W/O BM on-Board Monitor 09/00 Up to 09/01)

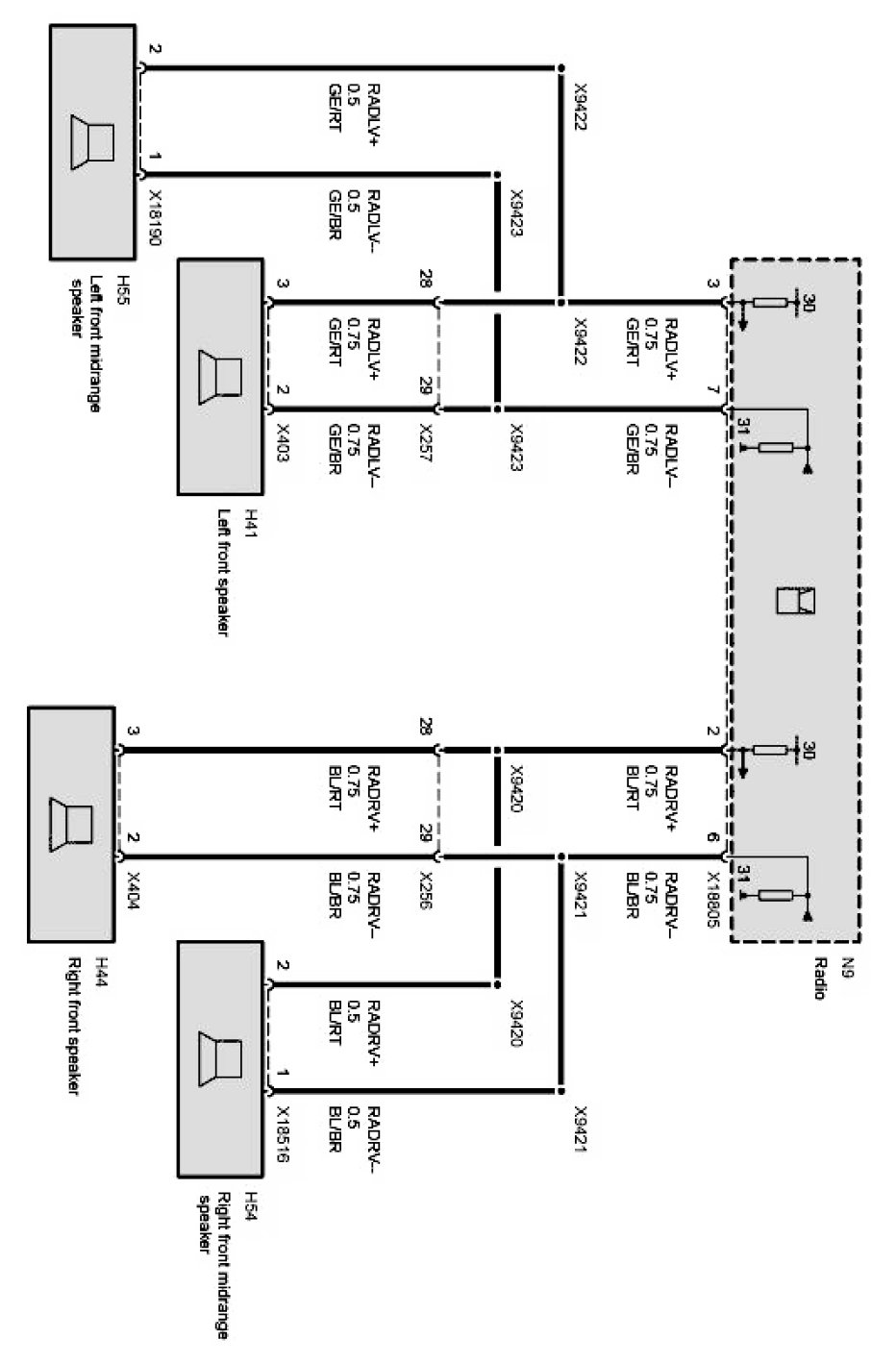

E53 Front loudspeaker without telephone Part 1 Of 1:
