Home
>>
BMW
>>
2001
>>
X5 3.0i (E53) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Body
>>
Audio, Video and Navigation
>>
Radio
>>
HiFi System (HiFi System 10 Speakers)
>>
Speaker, Woofer, Front Left
>>
W/O Telephone (W/O TEL Telephone Interface W/O BIT Basis Interface Telephone W/ BM on-Board Monitor 09/00 Up to 09/01)
W/O Telephone (W/O TEL Telephone Interface W/O BIT Basis Interface Telephone W/ BM on-Board Monitor 09/00 Up to 09/01)

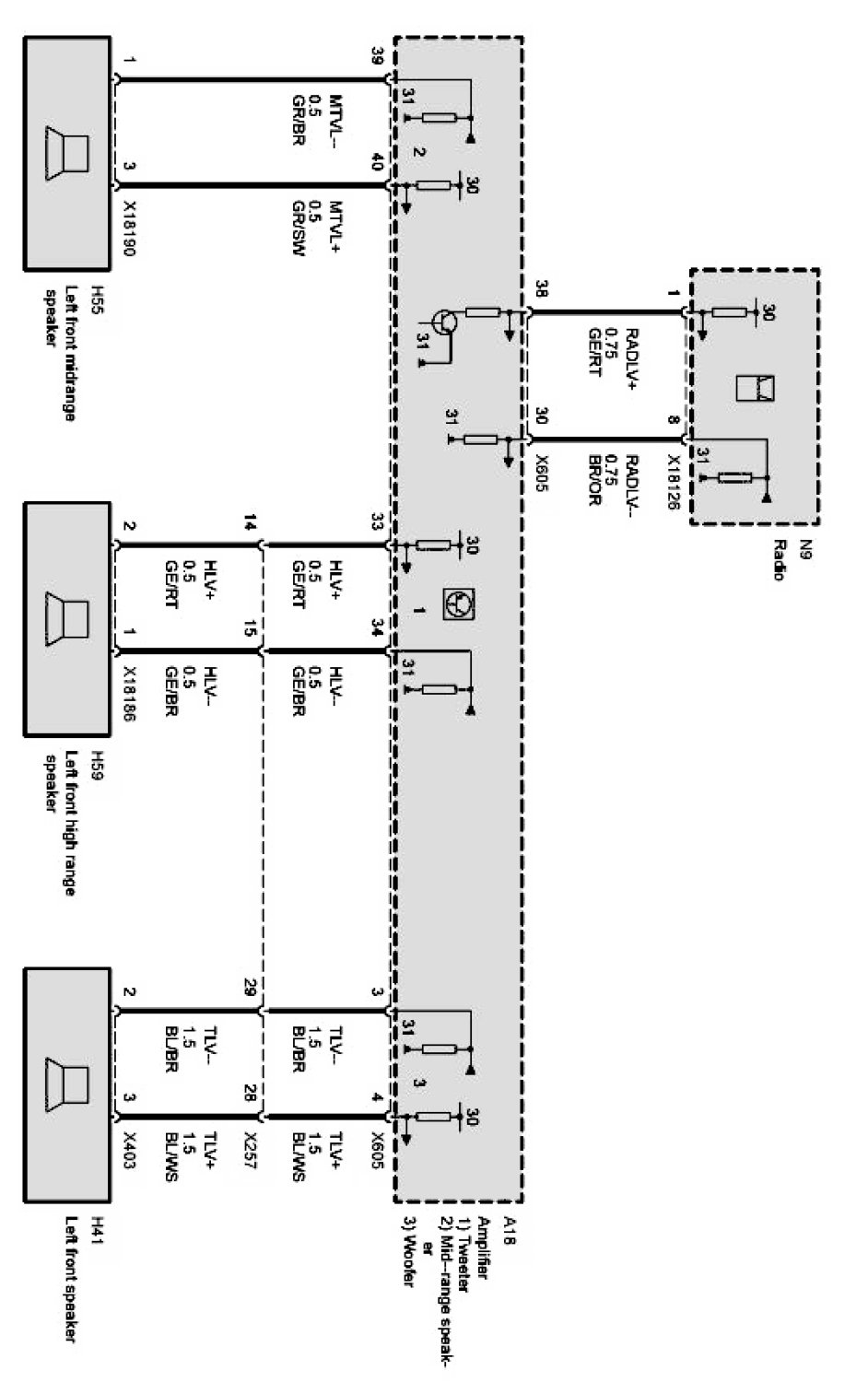

E53 Left front speaker without telephone Part 1 Of 1:
