Home
>>
BMW
>>
2001
>>
X5 3.0i (E53) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X0
>>
X01037
>>
N9 Radio (Hifi System (10 Speakers) Up To 09/00)
N9 Radio (Hifi System (10 Speakers) Up To 09/00)

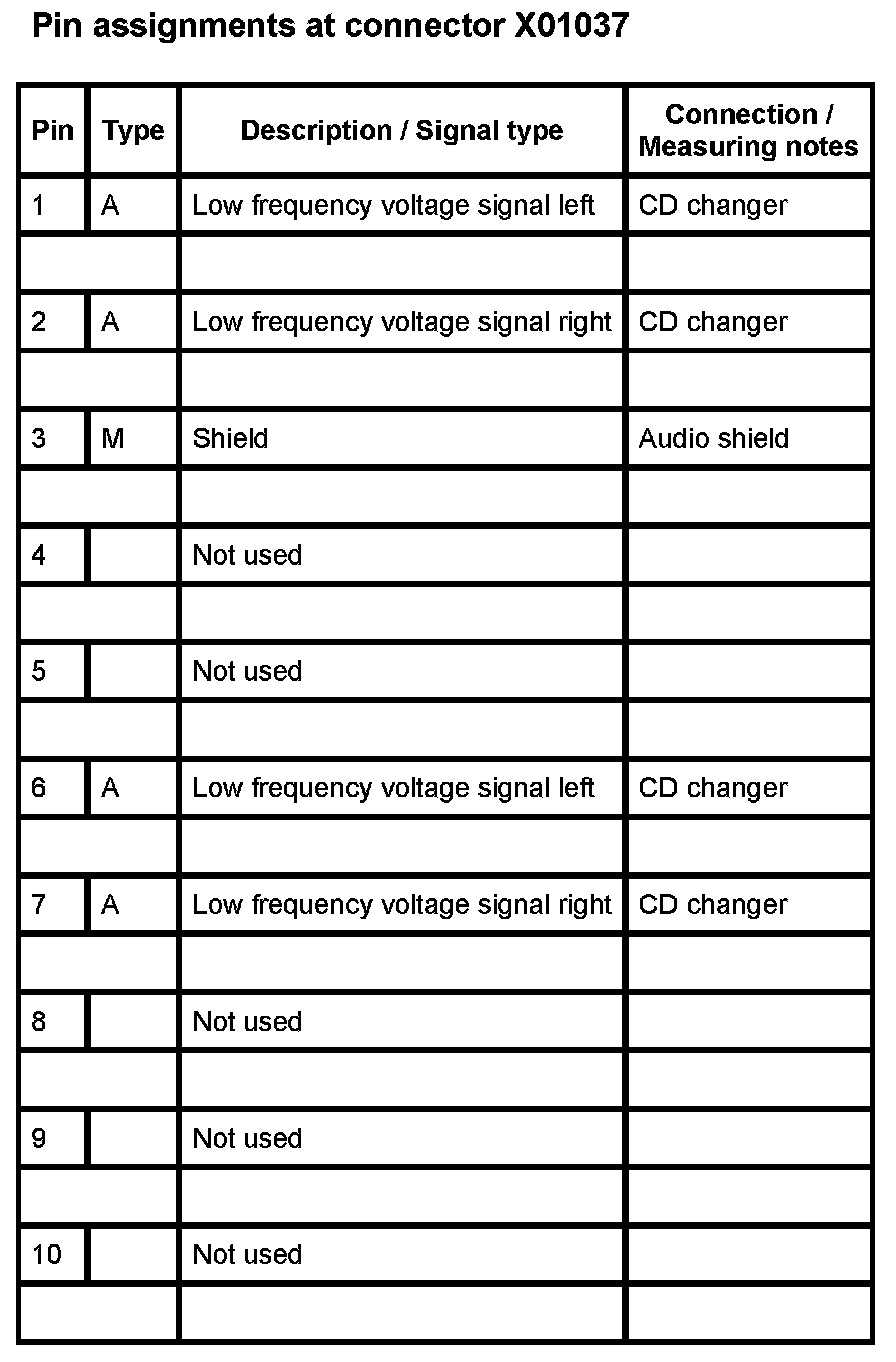

X01037:
