Replacing Seat Cover For Rear Seat (Through-Loading System)

Replacing Seat Cover For Rear Seat (Through-Loading System)

Remove rear seat.

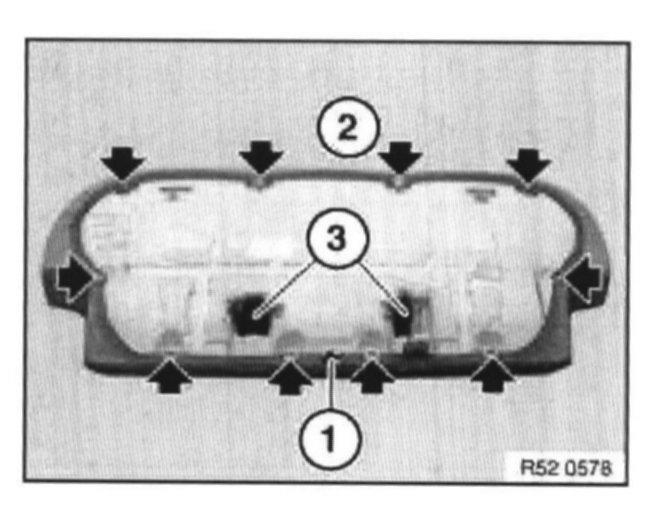

- Release tension cable (1).
- Lever tension cable out of wire eyes (2).
- Cut through all retainers (3).
- Carefully detach cover and in so doing cut through retainers of trim wires.


NOTE: Note position of clips.


- Remove all remnants of clips from cover and support.

Installation:
Fit new retainers with special tool 52 0 050. In so doing, enclose existing wire in foam seat with retainer if necessary.
Feed trim wires into new cover.
