Windshield Washer Spray Nozzle: Adjustments

Adjusting Windshield Washer Spray Nozzles


NOTE:

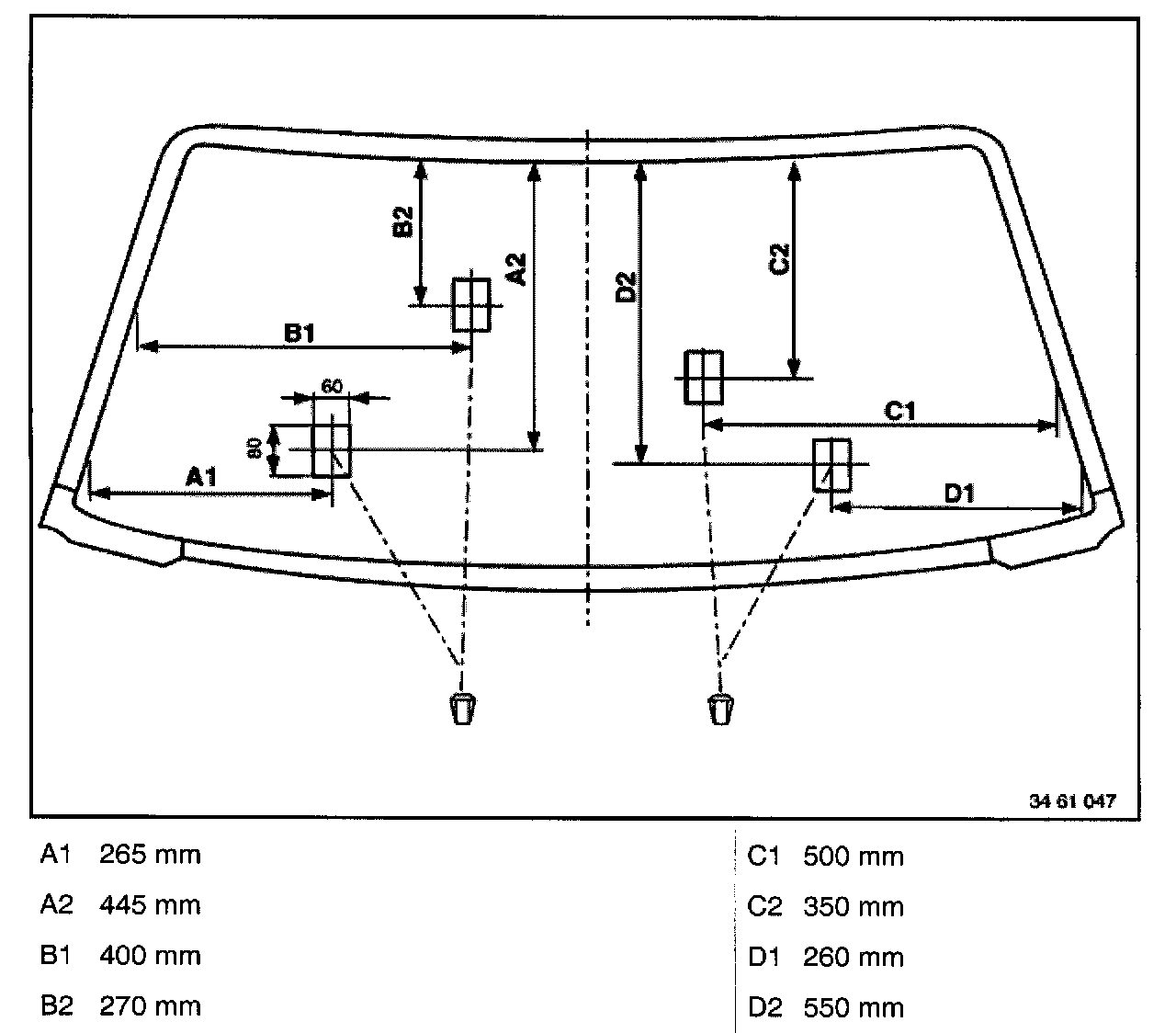

The sprays must strike in the center of the area.
Measurements apply to LHD models.
Measurements are mirror-inverted for RHD models.
Reference edge: windshield seal.












Mark points of contact with adhesive tape.

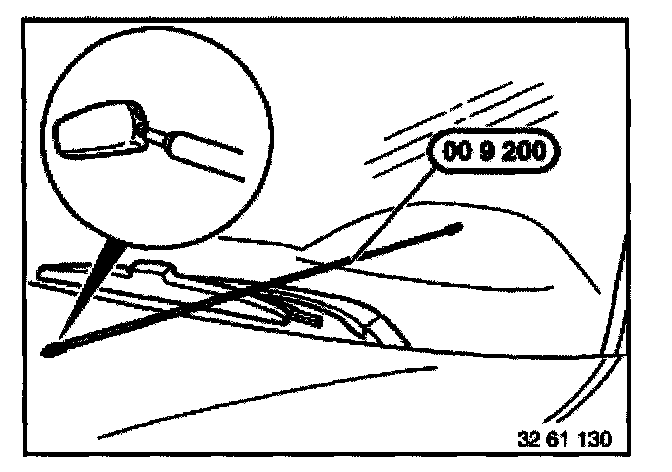

Adjust spray nozzles using special tool 00 9 200.
