Removing and Installing or Replacing Right Output Shaft

Remove or Replacing Right Output Shaft

Note: Output shafts differ in length. If necessary, mark output shafts
left: short output shaft.
right: long output shaft.

Remove rear wheel.
Release stabilizer bar.

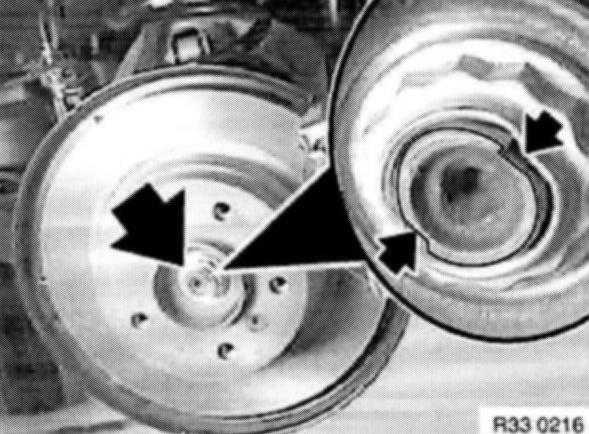

Warning!: Secure collar nut by caulking on flat areas of output shaft.





Release collar nut.
Tightening torque 33 21 2AZ.

Installation:
Replace and oil collar nut.
Secure collar nut by caulking on flat areas of output shaft.

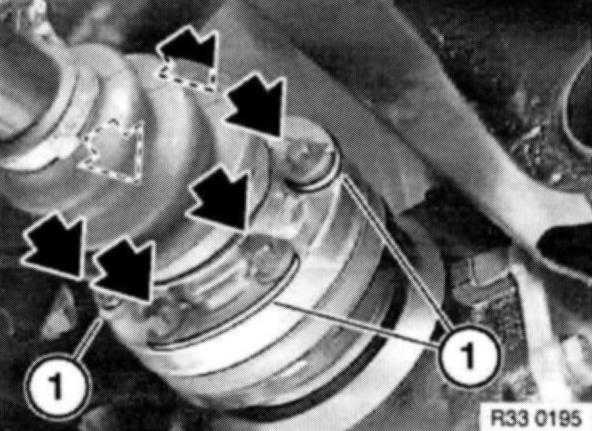

Release screws and press output shaft off drive flange.
Tightening torque, 33 21 1AZ.

Installation:
Fit shims (1).

Caution: Secure output shaft against falling down.

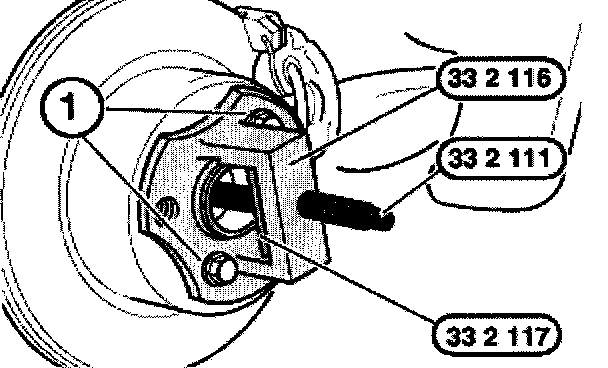

Screw on special tools 33 2 111, 33 2 116 and 33 2 117 with 2 wheel studs (1).

Press out output shaft.





Installation:

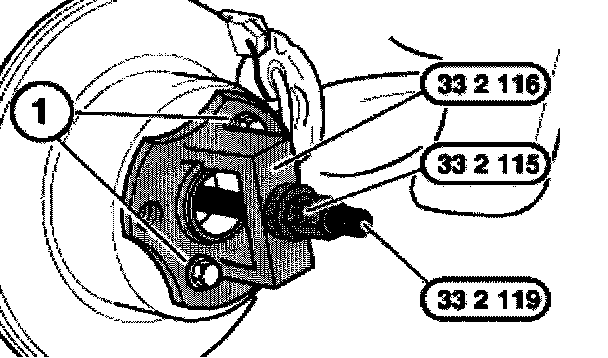

Screw special tool 33 2 119 onto output shaft.
Screw on special tool 33 2 116 with 2 wheel studs (1).

Draw in output shaft with special tool 33 2 115.
