Starter Solenoid: Service and Repair

Replacing Solenoid Switch

Turn off ignition.
Remove starter motor.

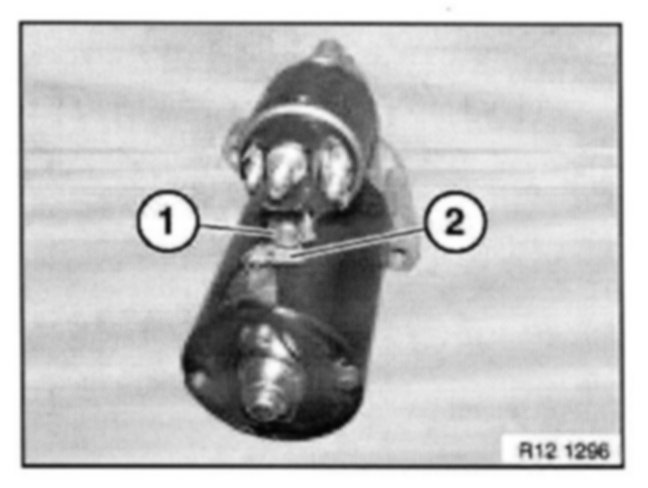

Release nut (1).
Remove cable lug (2).


CAUTION:
Do not turn cable lug (2) while tightening down - risk of short circuit to starter motor housing.

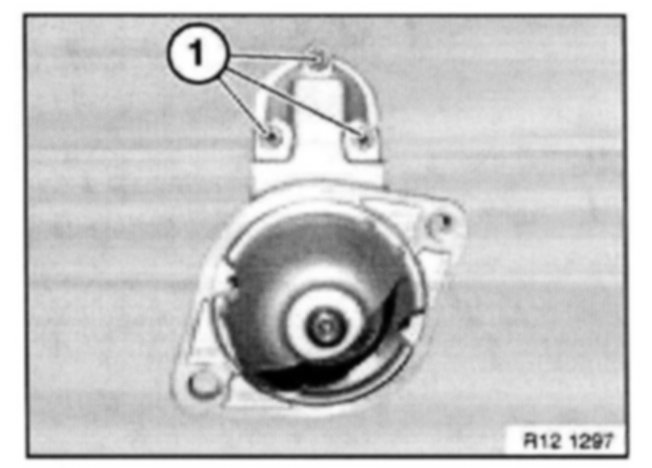

Release screws (1).

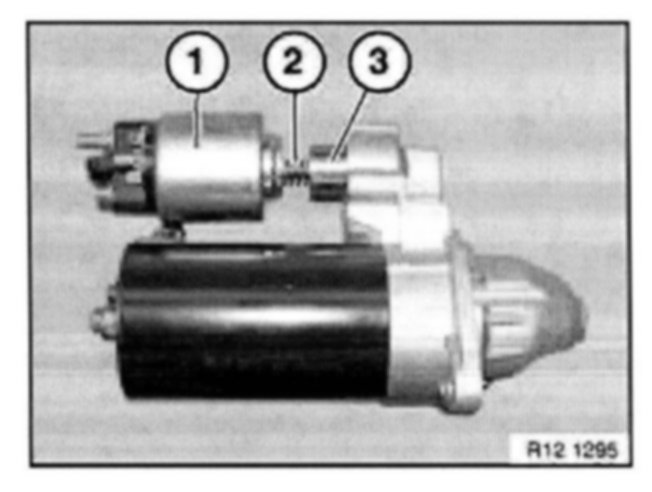

Remove solenoid switch (1) and spring (2).
Unhook pin (3).

Installation Note: Check pin (3) for wear and apply grease.
