Dimensional


Dimensional Specifications

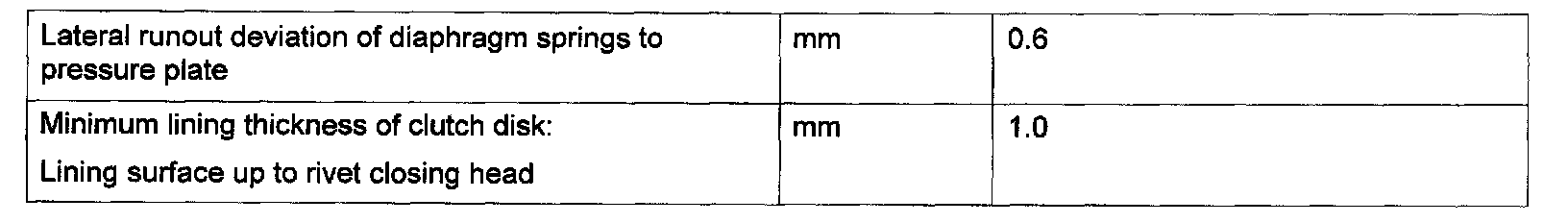

Clutch with Drive Plate All

Tightening Specifications

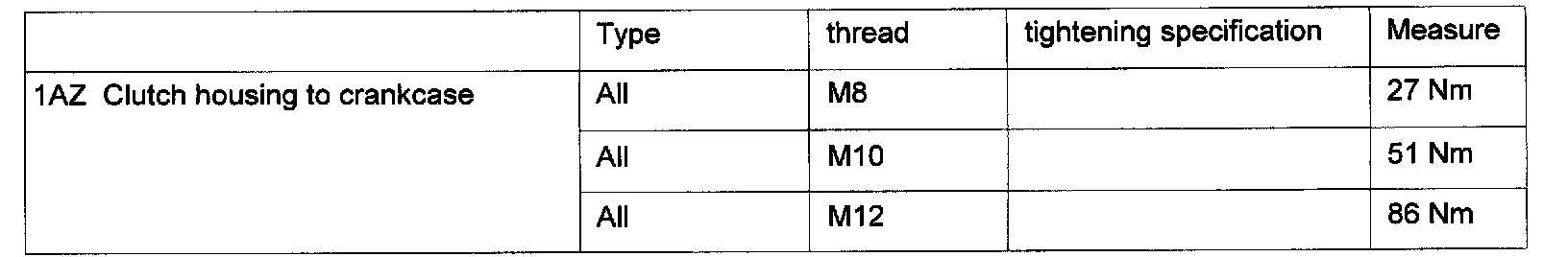

Bell housing

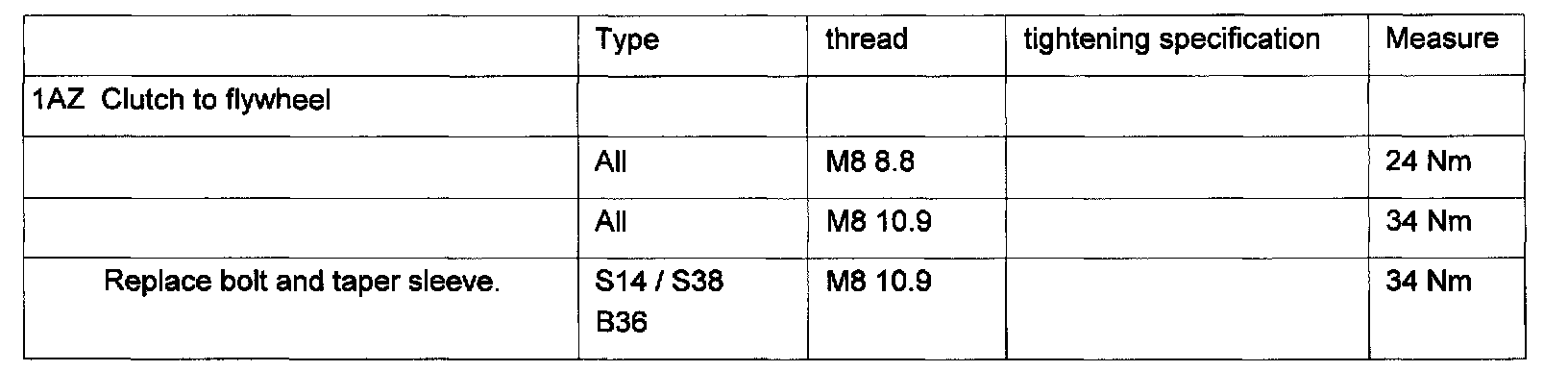

Clutch Disc and Drive Plate

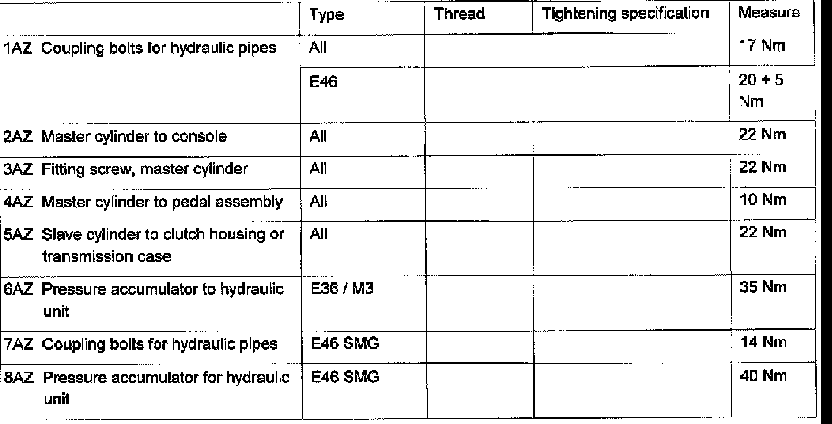

Clutch operation (hydraulic)
