Liquid Vapor Separator: Service and Repair

Removing And Installing/Replacing Expansion Tank For Tank Ventilation

Remove rear right wheel,

Remove rear right wheel arch trim.

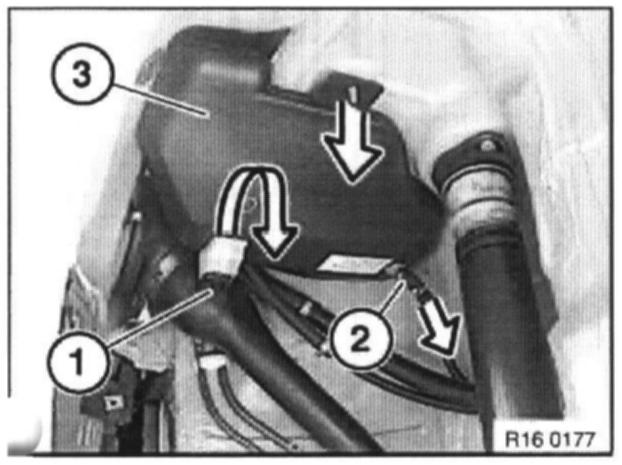

Unfasten plastic nut (1).
Unfasten hose clip (2) and remove hose.
Tilt expansion tank (3) forwards at bottom.







Release hose clip (1) and disconnect hose (2).
Release hose clip (3) and disconnect hose (4).
Remove expansion tank (5).
