Replacing Ignition Unit For Left Xenon Headlight

Replacing Ignition Unit For Left Xenon Headlight (Coupe, Convertible)


WARNING:
Version with xenon headlights: Danger to life due to high voltage! Therefore disconnect all components from voltage supply before removal.
Work on the entire xenon lighting system (ignition unit, control unit and lamp) may only be carried out by specialist personnel.


Remove left headlight (xenon headlight).
Remove left headlight insert (xenon headlight).

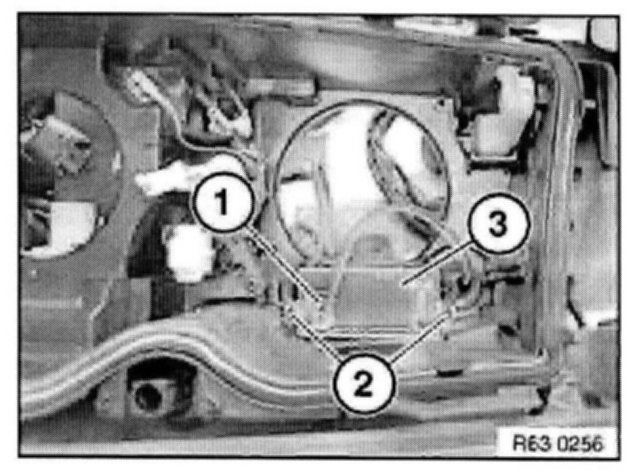

Disconnect plug connection (1).
Loosen screws (2).
Remove ignition unit for xenon headlight (3).
