Rear Converter

Removing And Installing/Replacing Catalytic Converter

Warning: Scalding hazard!

Only perform these tasks after exhaust system has cooled down.
Remove underbody protection.

US version:
Catalytic converters are located in exhaust manifolds.
Remove and install both exhaust manifolds.





ECE version:

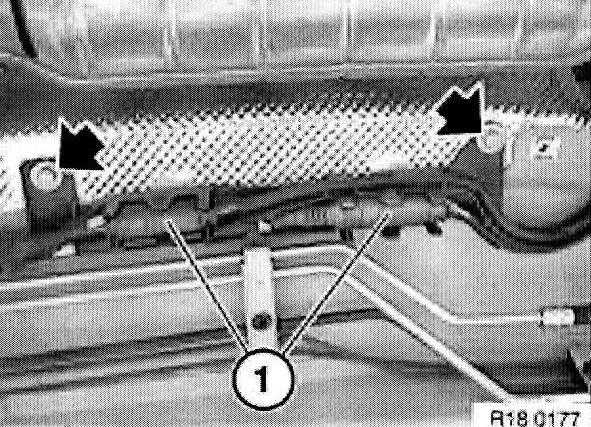

Release screws.
Unclip both plug connections (1) and disconnect.
Disconnect both plug connections.

Note: Plastic holder with both cables of monitor sensors is removed with catalytic converter.
