Engine Oil Pressure: Testing and Inspection

Checking Engine Oil Pressure





Note: When the main flow oil-filter cover is released, the oil flows from the oil-filter housing back into the sump.

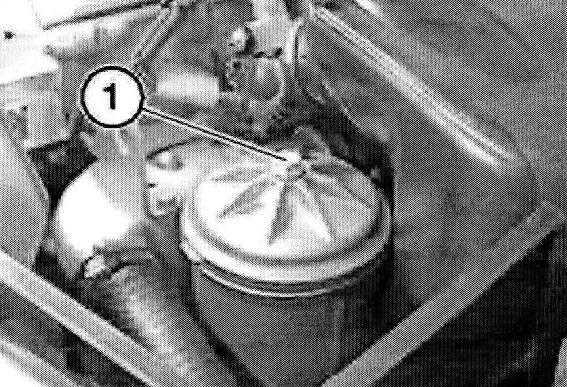

Unfasten oil filter cover.

Installation:
Replace sealing ring.
Tightening torque, refer to Specifications, Mechanical.





Installation:

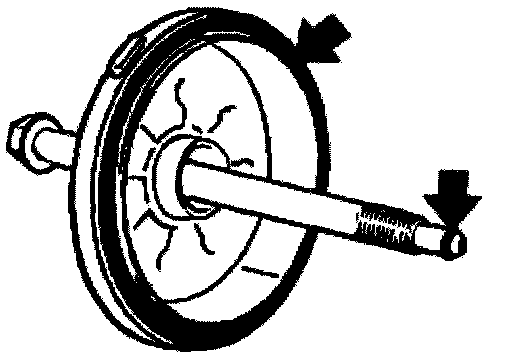

Replace sealing ring in oil-filter cover and sealing ring on bolt.

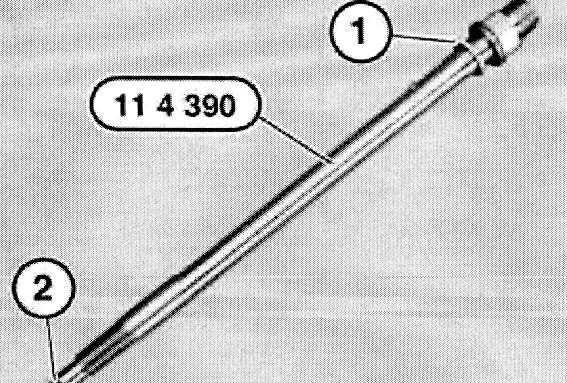

Check sealing rings (1 and 2) on special tool 11 4 390, replace if necessary.

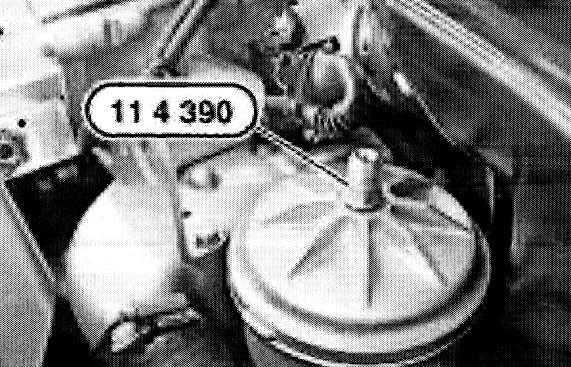

Insert special tool 11 4 390 and tighten down oil filter cover.

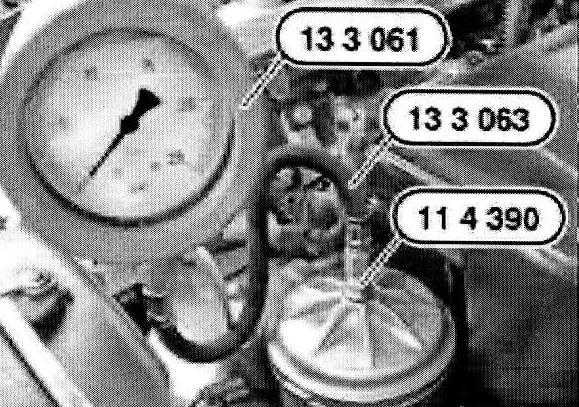

Connect special tools 13 3 061 /063.
Start engine and check engine oil pressure, refer to Specifications, Pressure, Vacuum and Temperature.
