Brake Light Switch
>>
Brake Light Switch (W/O DME Motor Electronics BMS46 Up to 03/01)
Brake Light Switch (W/O DME Motor Electronics BMS46 Up to 03/01)

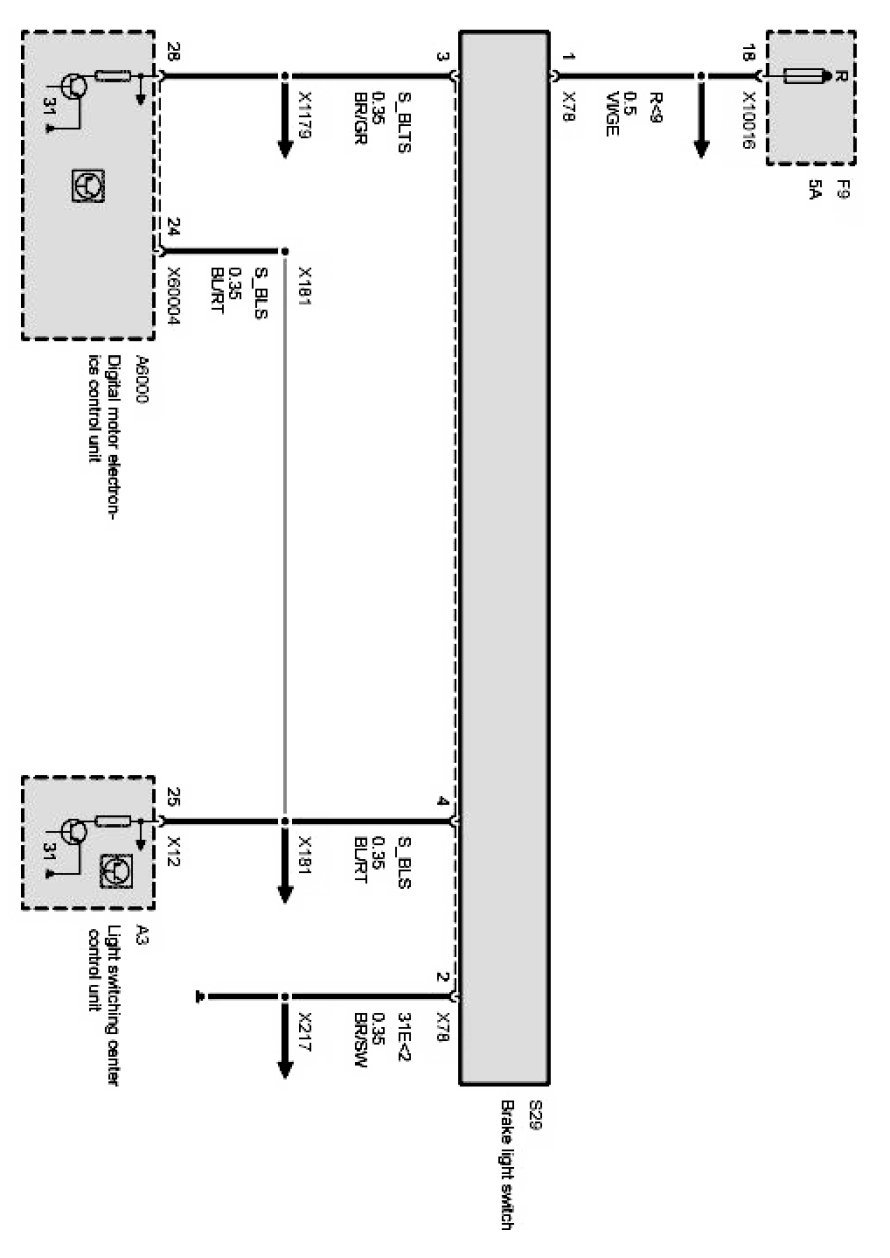

Brake-light Switch:
