M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Chassis
>>
Wheel Slip Control System
>>
Steering Angle Sensor (LWS Steering Angle Sensor)
>>
Steering Angle Sensor (As of 09/99 Up to 06/00 Without AWD)
Steering Angle Sensor (As of 09/99 Up to 06/00 Without AWD)

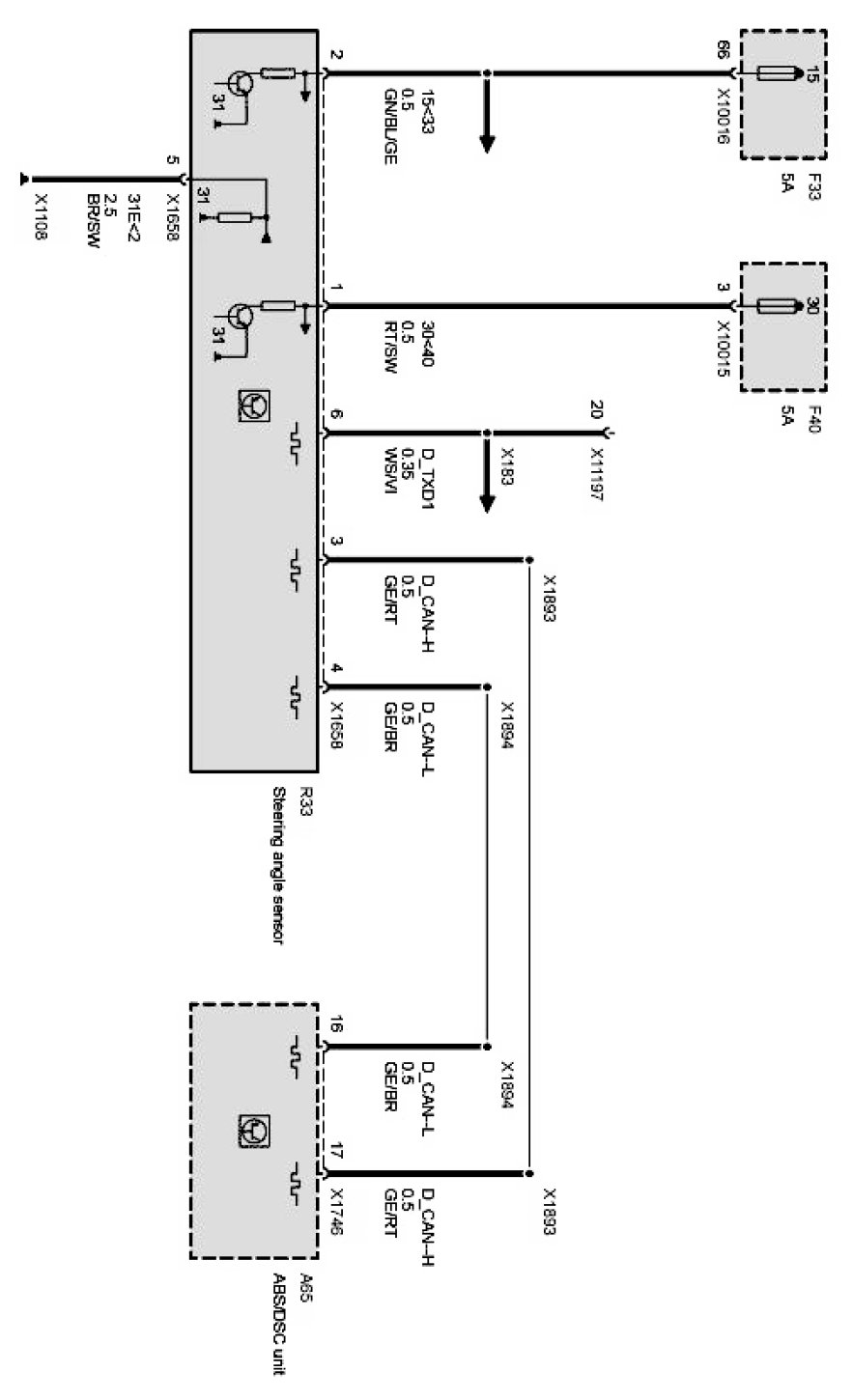

Steering-angle Sensor:
