Home >> BMW >> 2001 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and A/C Functions (IHKA Integrated Automatic Heating/A/C or IHKR Integrated Heating/A/C Regulation or Heater Control) >> Rear Window Defogger >> Unloader Relay, Rear Window Defogger >> Unloader Relay, Rear Window Defogger (( IHKA or IHKR ) With DME MS42 With DME MS43 Up to 09/00 Without Convertible)

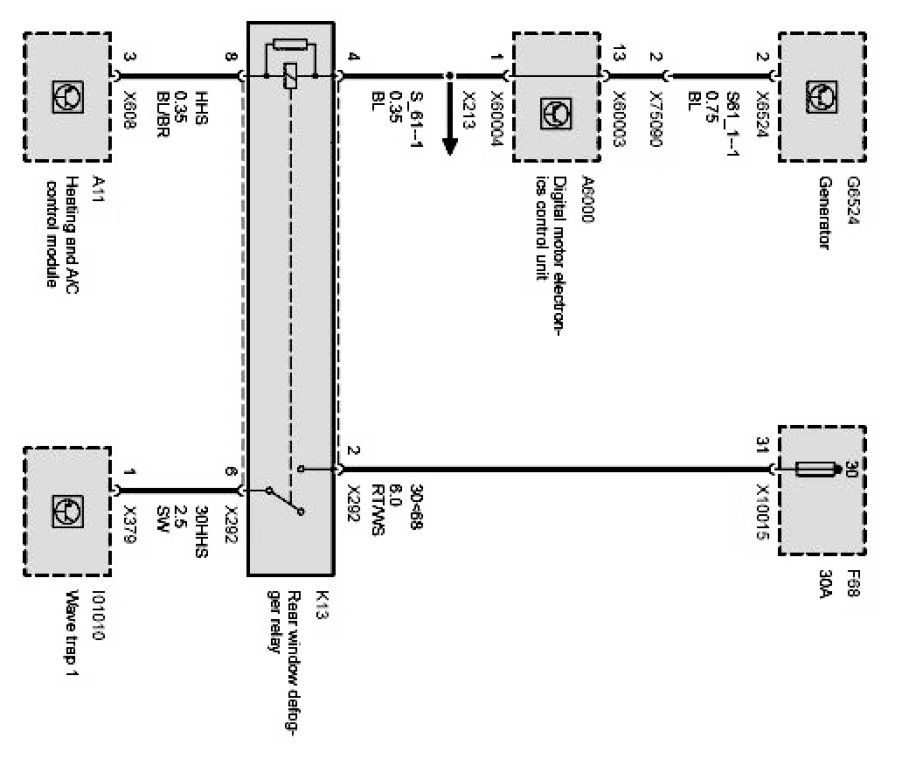

Unloader Relay, Rear Window Defogger (( IHKA or IHKR ) With DME MS42 With DME MS43 Up to 09/00 Without Convertible)
