Home >> BMW >> 2001 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Heating and A/C Functions (IHKA Integrated Automatic Heating/A/C or IHKR Integrated Heating/A/C Regulation or Heater Control) >> Air Distribution (IHKA Integrated Automatic Heating/Air Conditioning or IHKR Integrated Heating/Air-Conditioning Regulation) >> Switch, Air Distribution (IHKR Integrated Heating/Air-Conditioing Regulation)

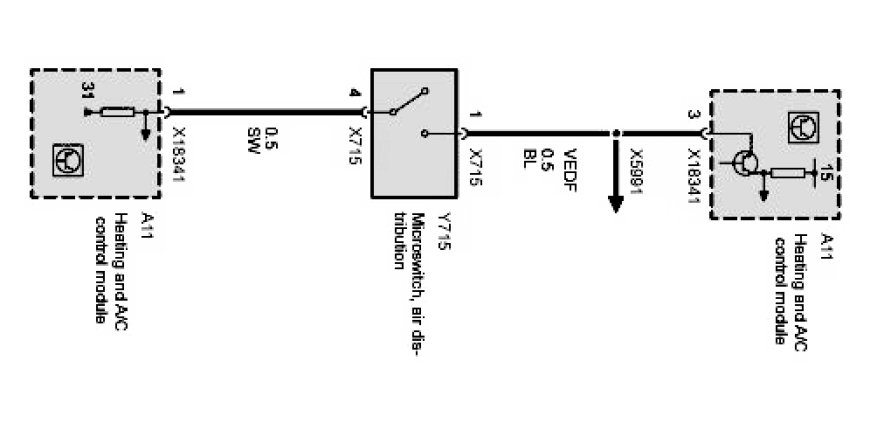

Switch, Air Distribution (IHKR Integrated Heating/Air-Conditioing Regulation)
