Home >> BMW >> 2001 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Displays and Information >> Supply, Instrument Cluster >> Interfaces, Supply >> Supply/Interface (As of 06/00 Up to 09/02)

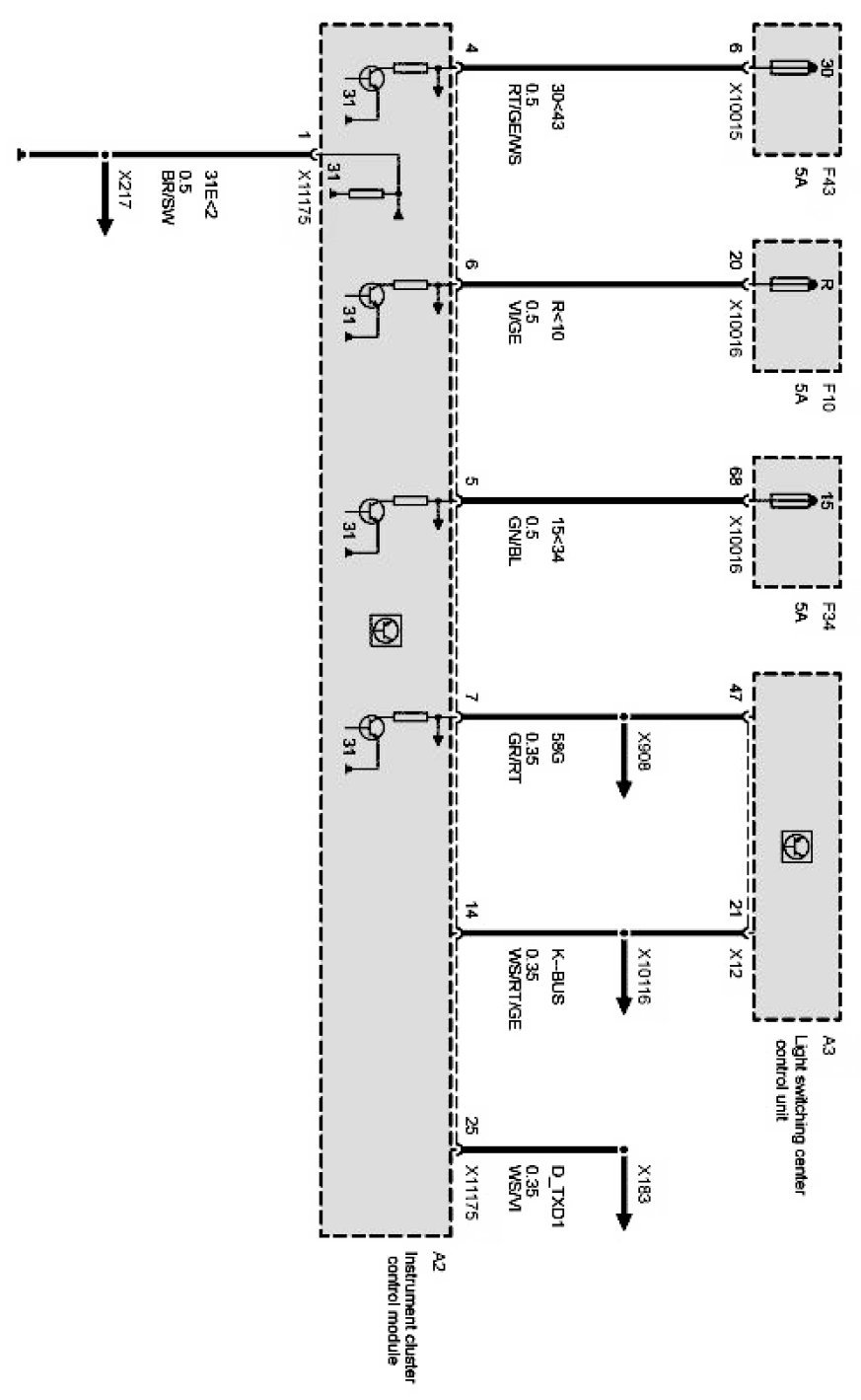

Supply/Interface (As of 06/00 Up to 09/02)

Supply/interface:
