Home >> BMW >> 2001 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Communication >> Telecommunication (TEL or BIT or TCU Telematic Control Unit or ULF Universal Charging and Hands-Free Facility) >> Telephone Provisions >> Telephone Provisions With Mayday Switch (As of 06/00 Up to 09/01)

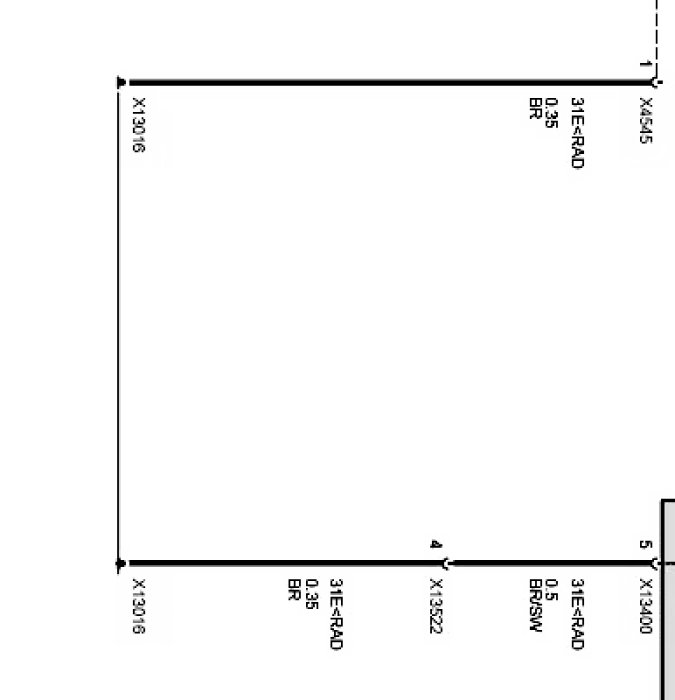

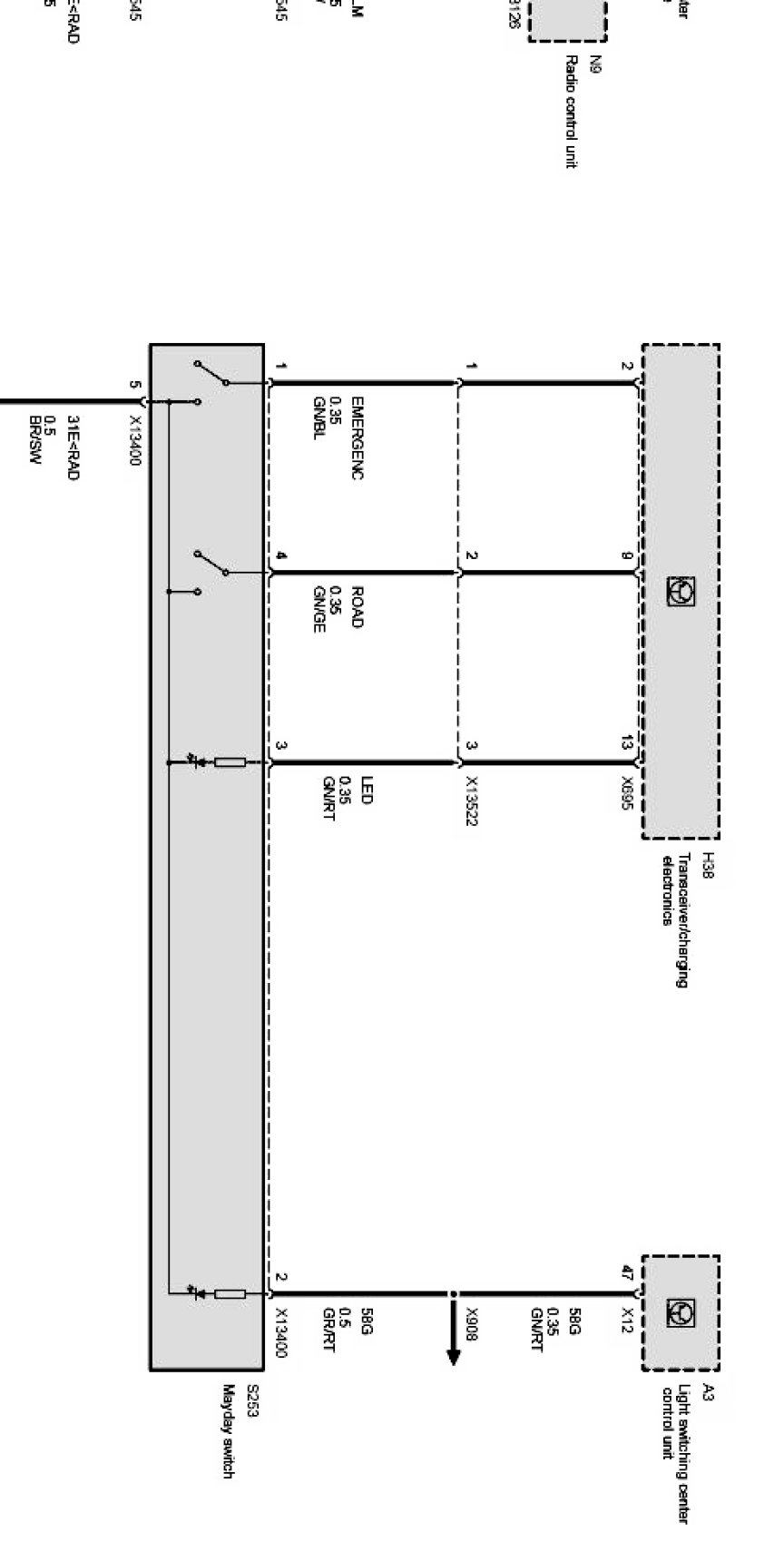

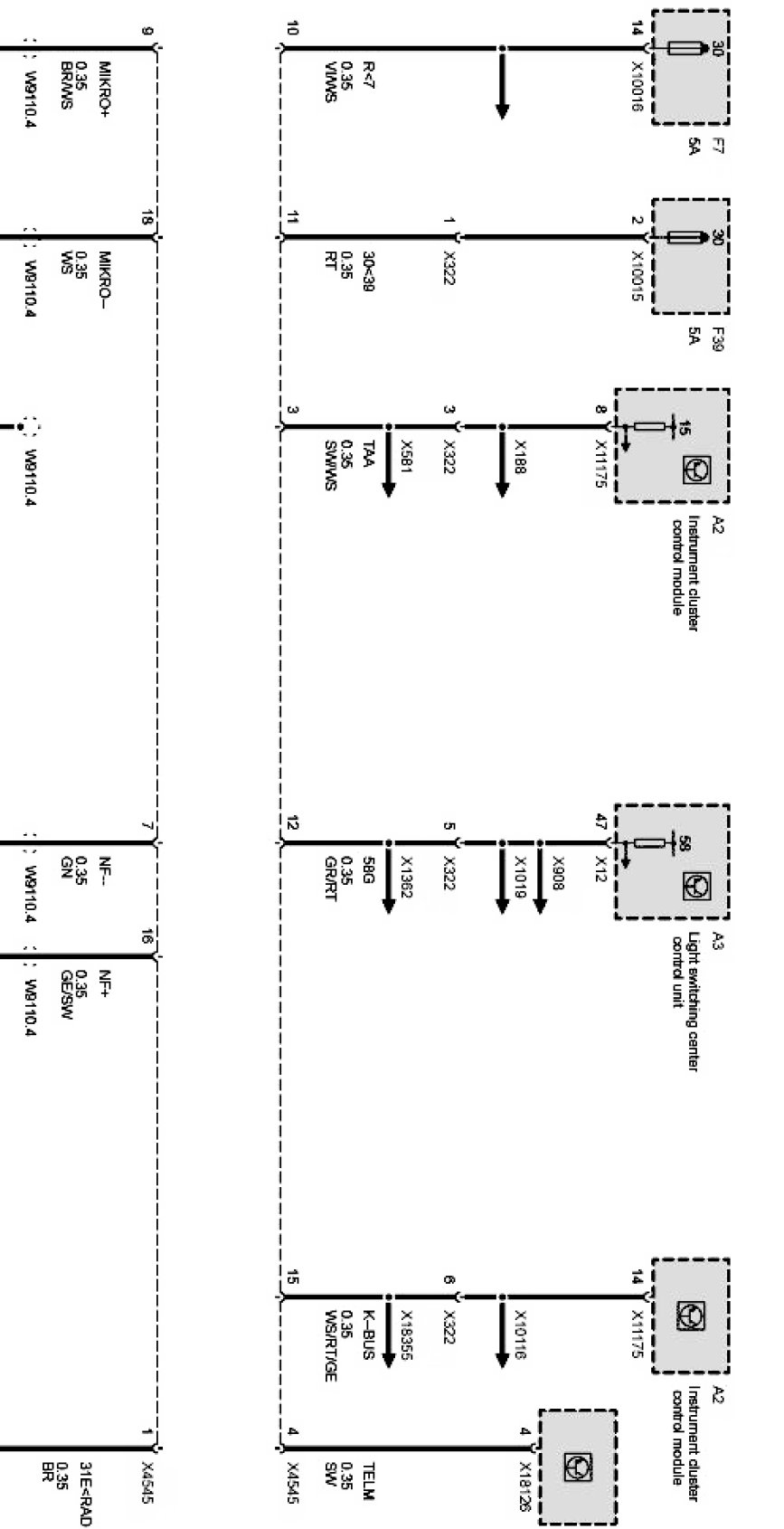

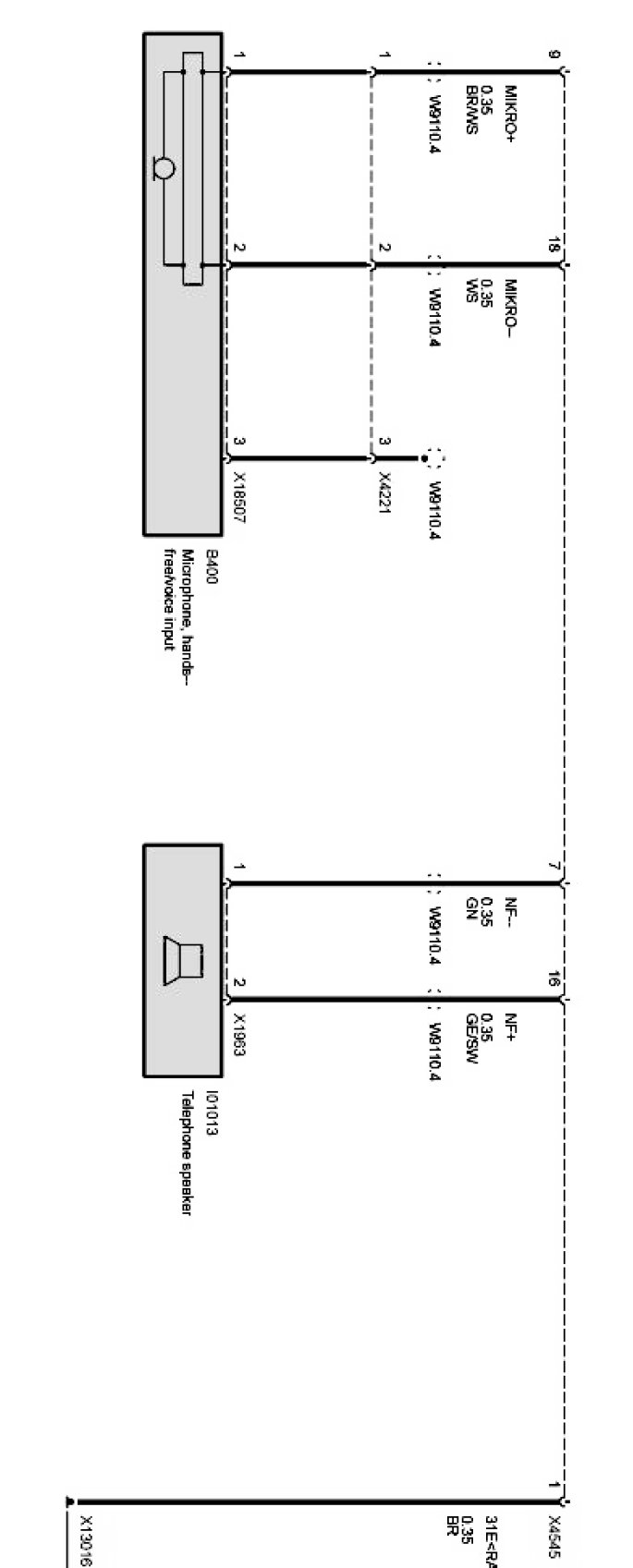

Telephone Provisions With Mayday Switch (As of 06/00 Up to 09/01)
