Home >> BMW >> 2001 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Radio >> Radio (With Convertible With Hifi System (10 Speakers) Up to 03/01)

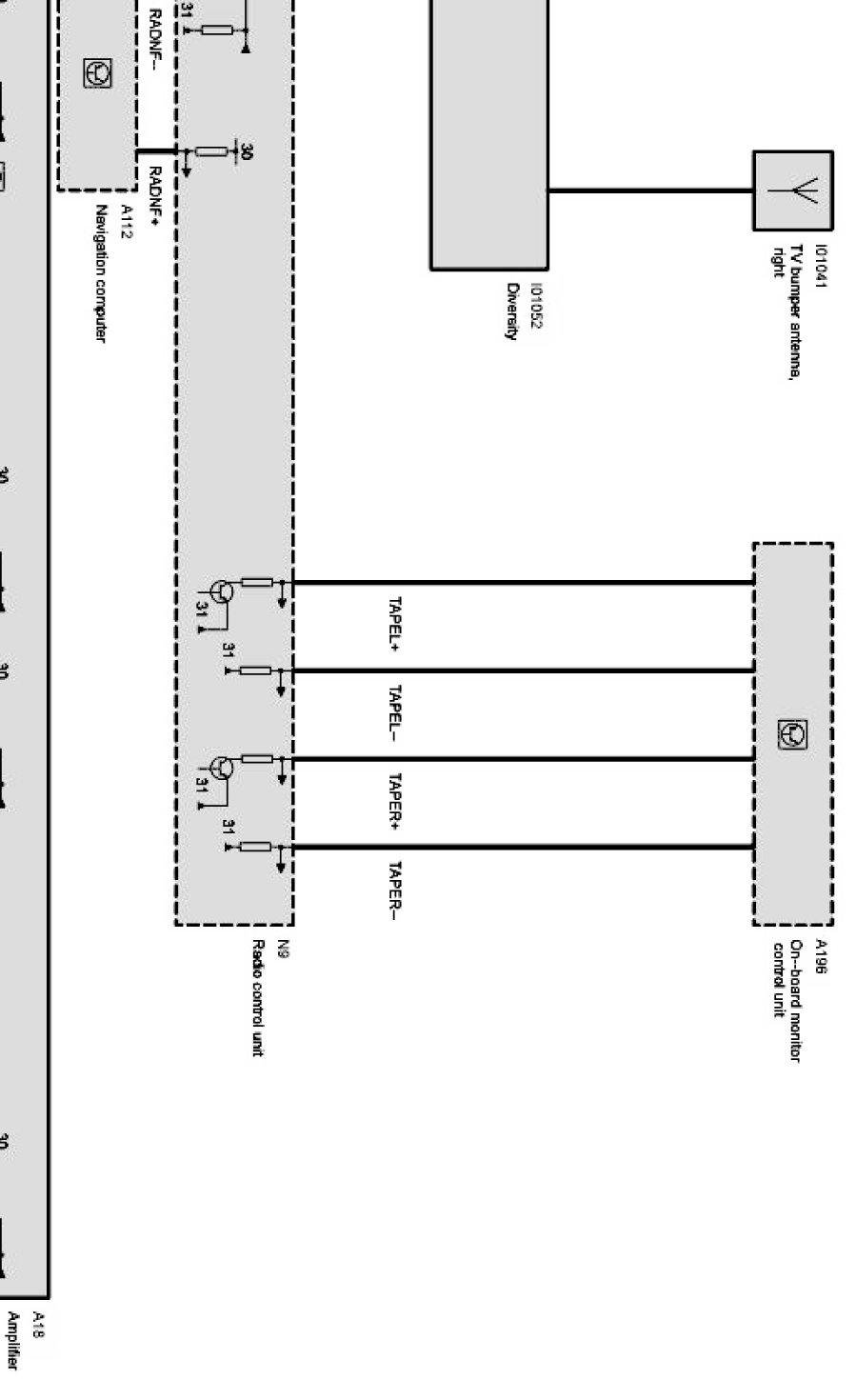

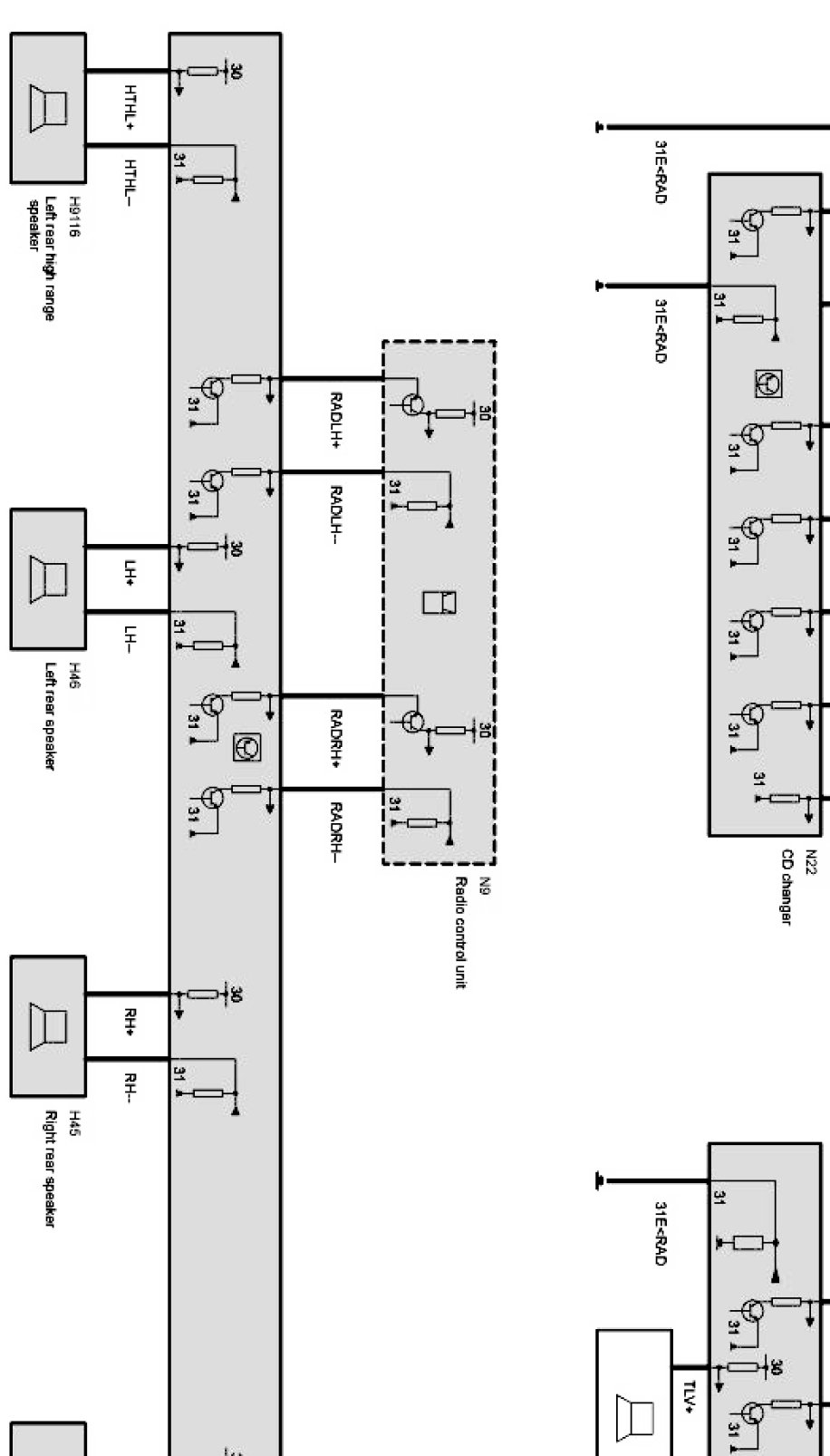

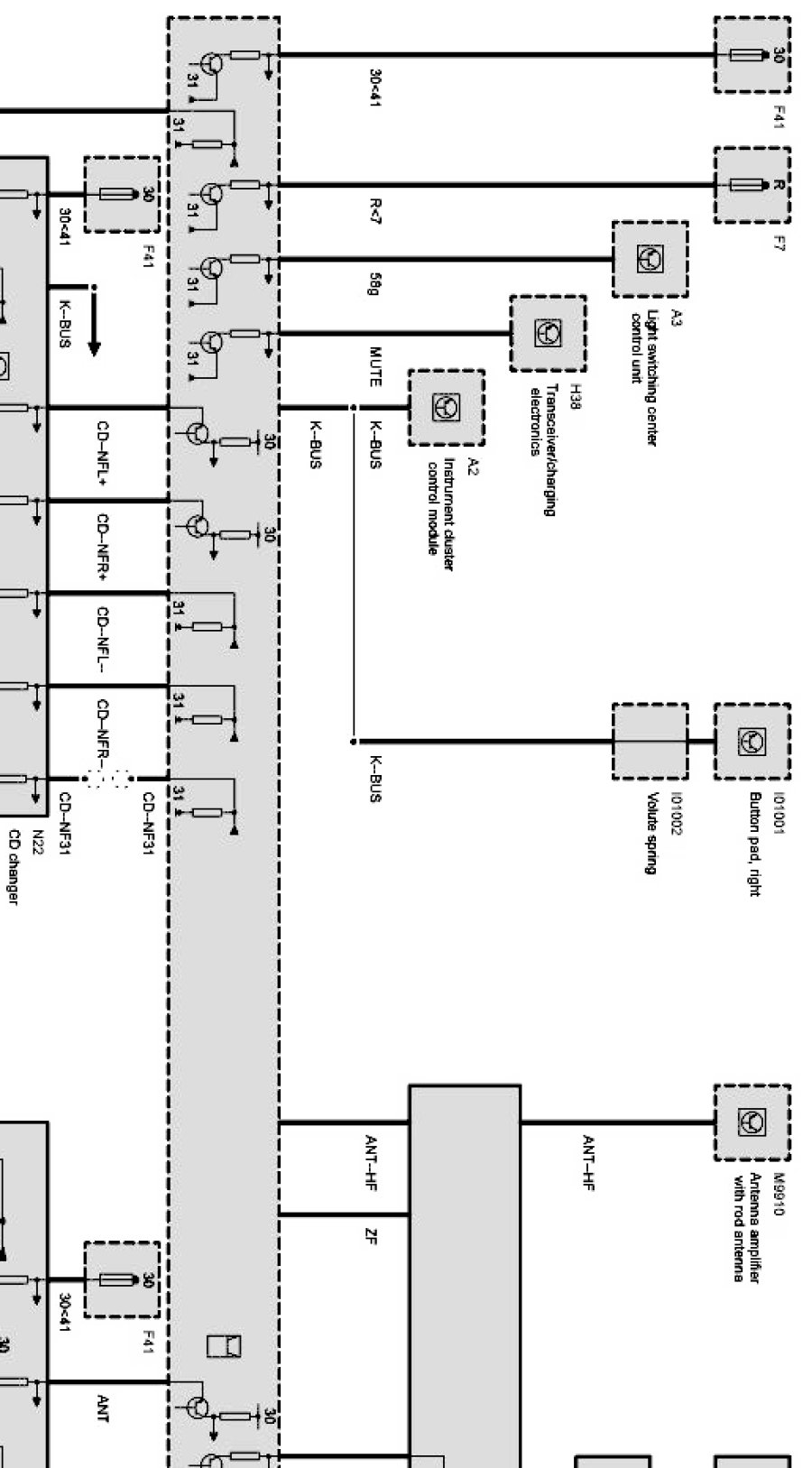

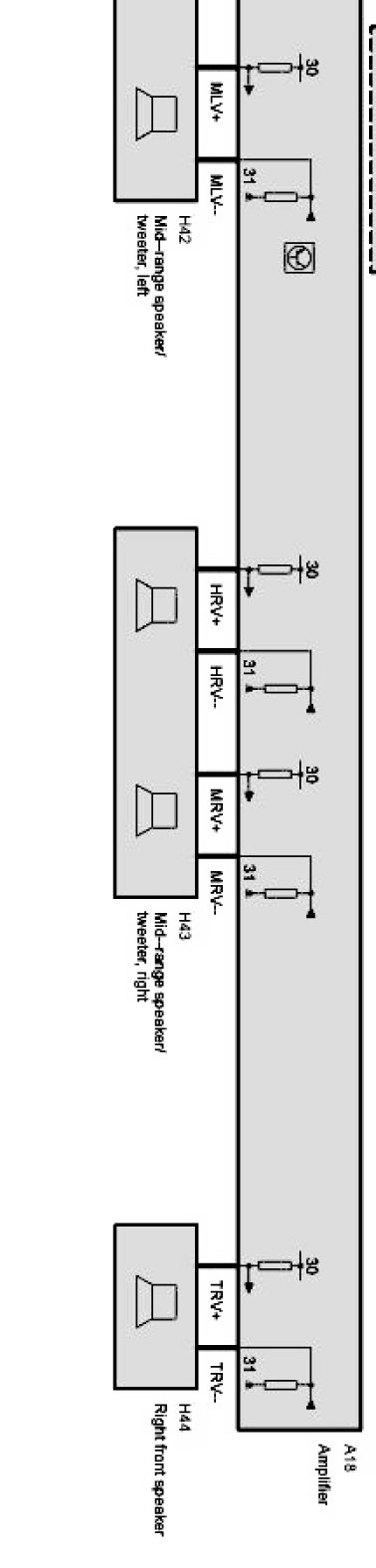

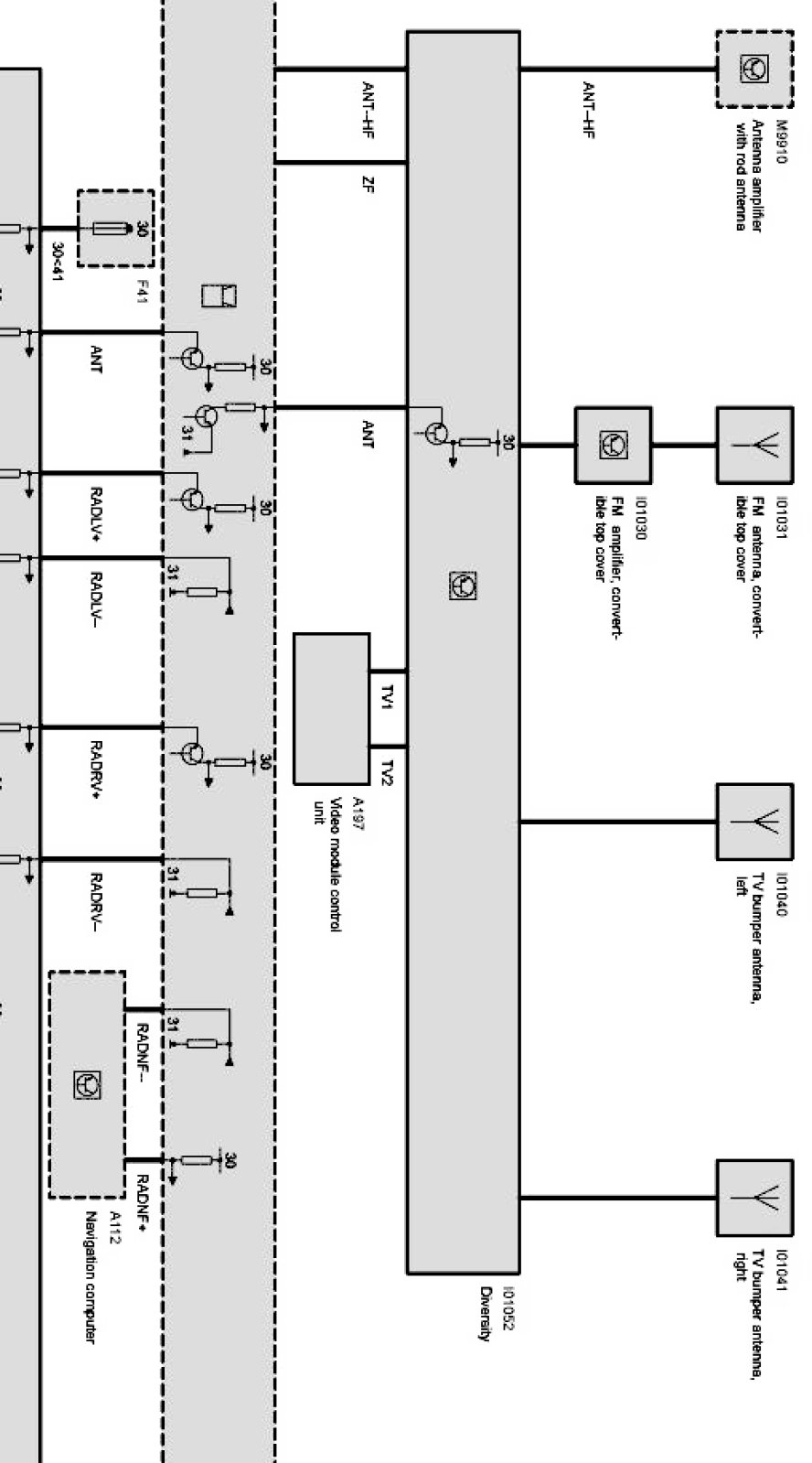

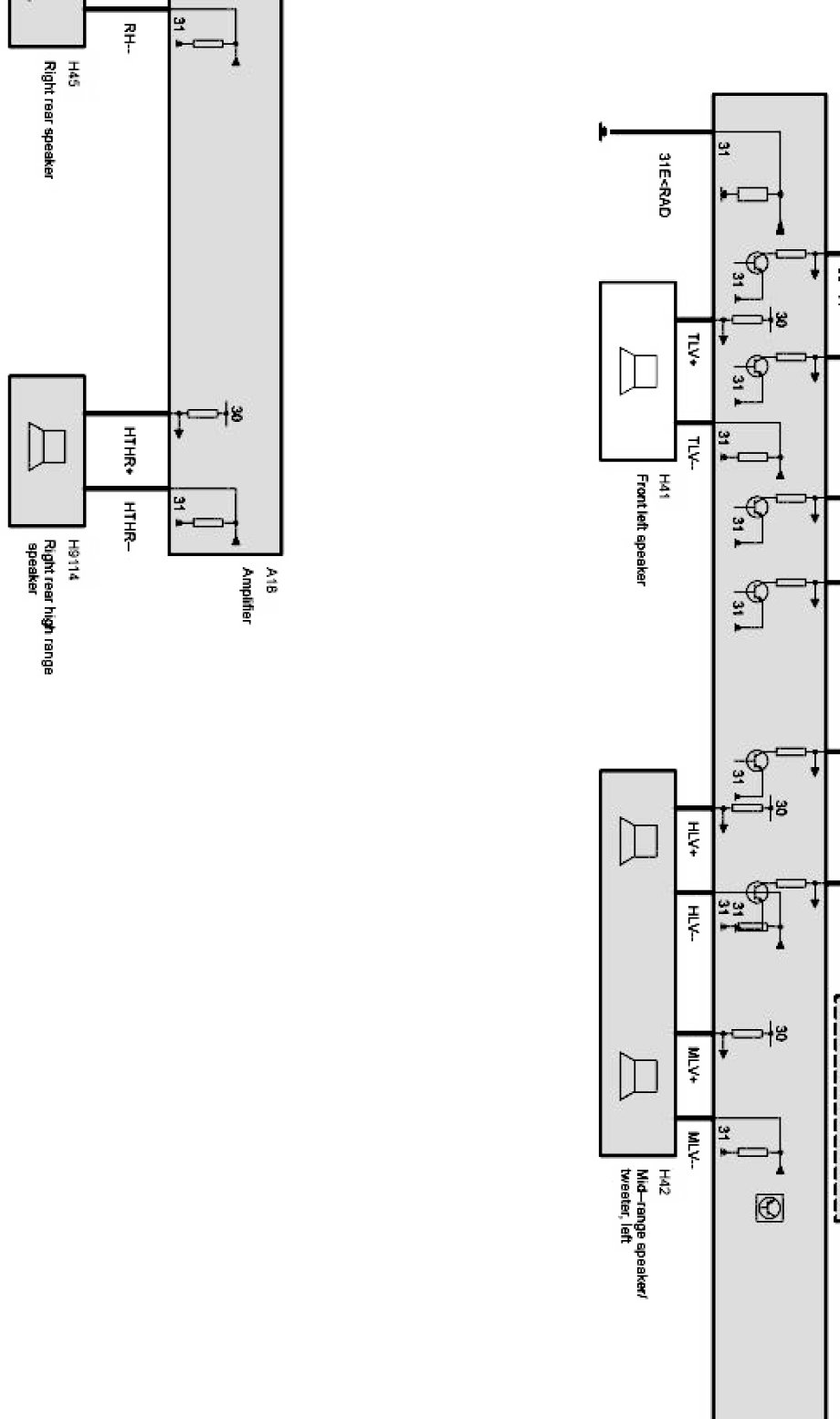

Radio (With Convertible With Hifi System (10 Speakers) Up to 03/01)
