Home >> BMW >> 2001 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors From X3 >> X319 >> E46 Tail Light, Left ((Saloon or Coupe or Convertible) Up to 09/01)

E46 Tail Light, Left ((Saloon or Coupe or Convertible) Up to 09/01)

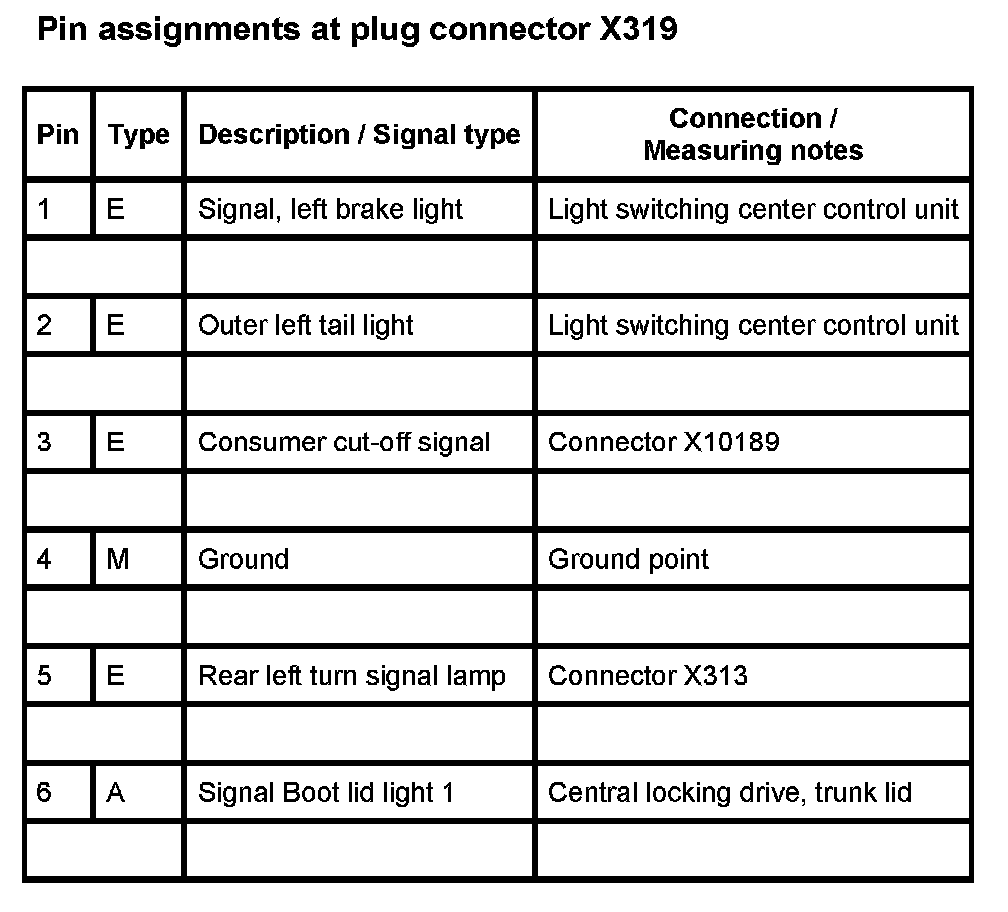

X319:
