M3 Convertible (E46) L6-3.2L (S54)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connectors From X3
>>
X318
>>
E47 Tail Light, Right ((Saloon or Coupe or Convertible) Up to 09/01)
E47 Tail Light, Right ((Saloon or Coupe or Convertible) Up to 09/01)

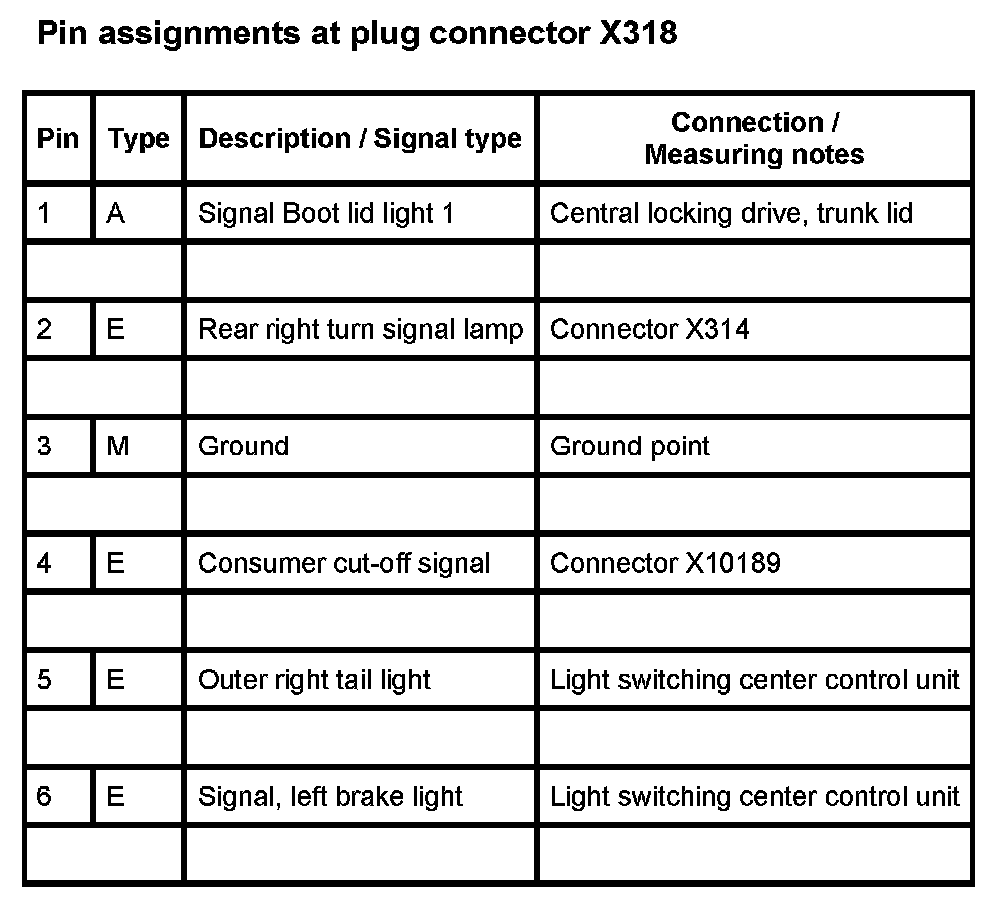

X318:
