Output Signals

Output Signals

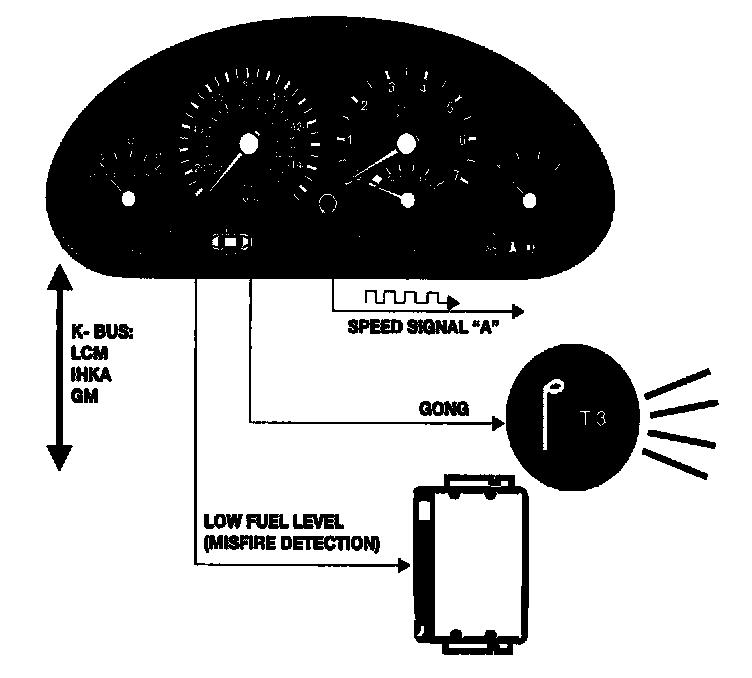

SPEED SIGNAL "A" - The vehicle speed signal is available as an output for control modules that require precise vehicle speed information.

"K" BUS INTERFACE - The K Bus is used to transfer data between the cluster and other modules on the link. The diagnostic interface also passes over the K Bus for troubleshooting with the DIS Tester.

LOW FUEL - Based on the processing for the low fuel indicator lamp, this output is also sent to the MS42.0 control module. The signal is stored along with a mis-fire detection fault for troubleshooting purposes.

GONG OUTPUT - T3, The T3 tone is used for check control warnings.
