E46 Bus Systems




E46 Bus Systems

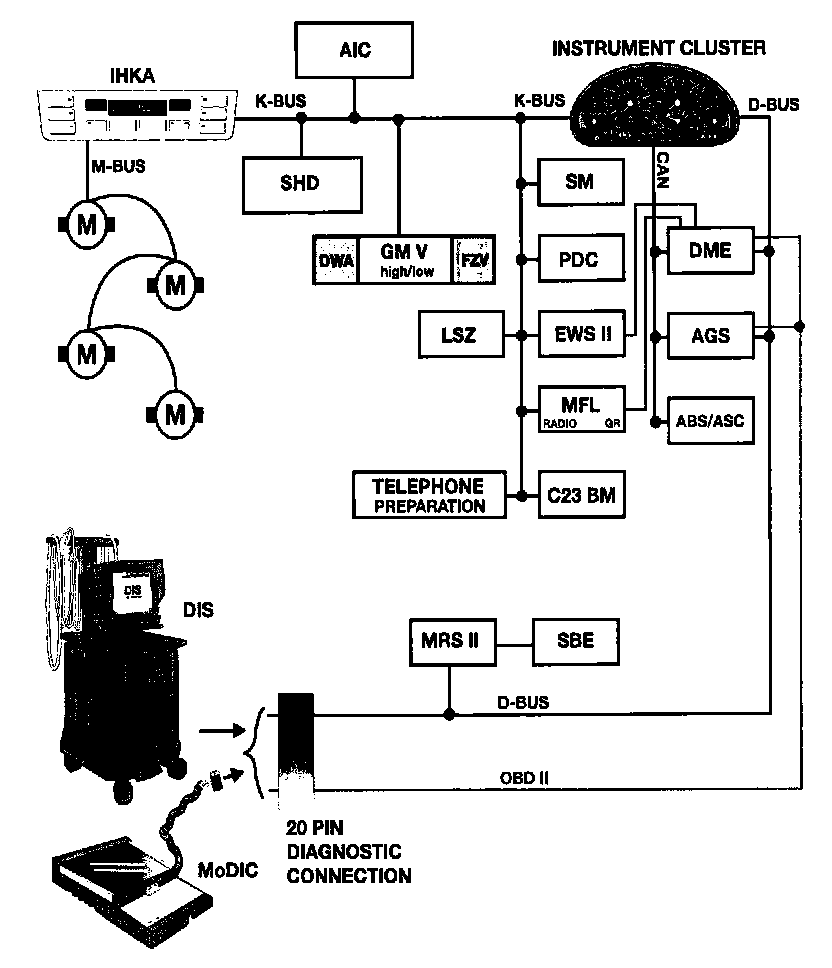

Bus Schematic

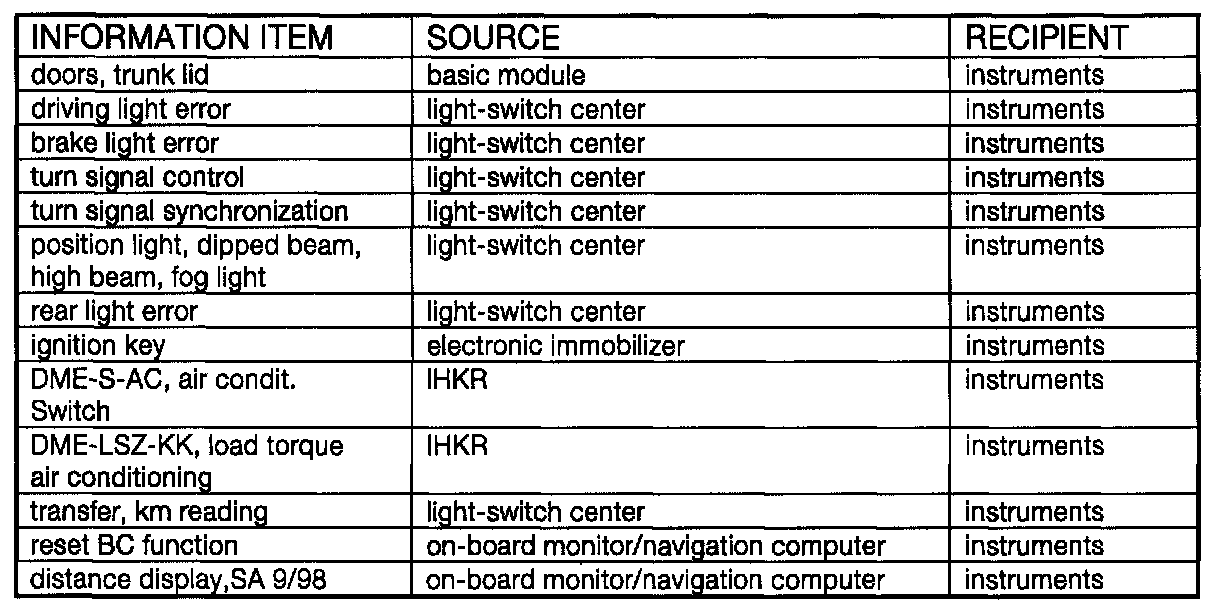

Signals Which Arrive At The Instrument Cluster Via The K-Bus

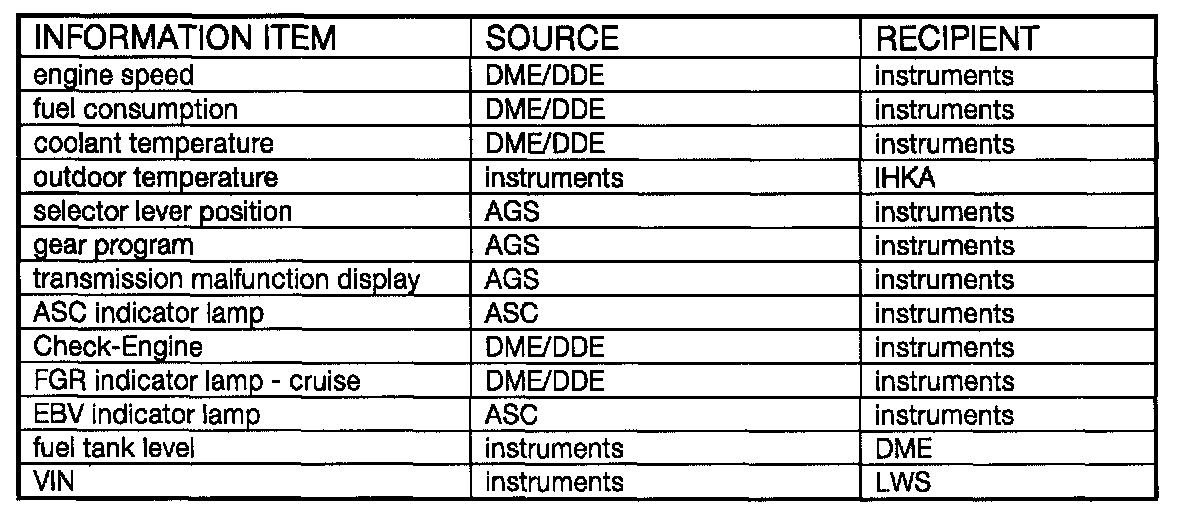

Signals Which Arrive At The Instrument Cluster Through The Can-Bus
