Shift Arm Support

Replacing Shift-Arm Support

Note: Remove transmission underbody protection if necessary.

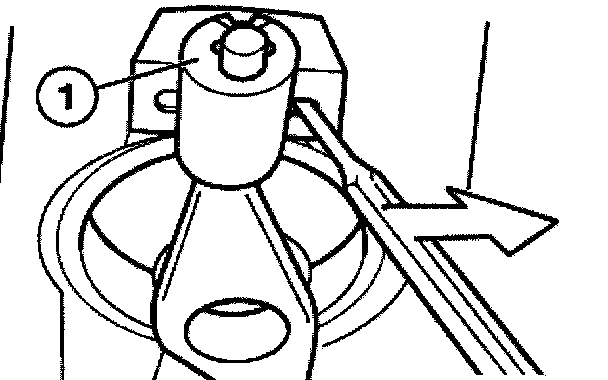

Lever out support bearing (1) from bracket.

Detach support bearing from shift arm.





Installation:

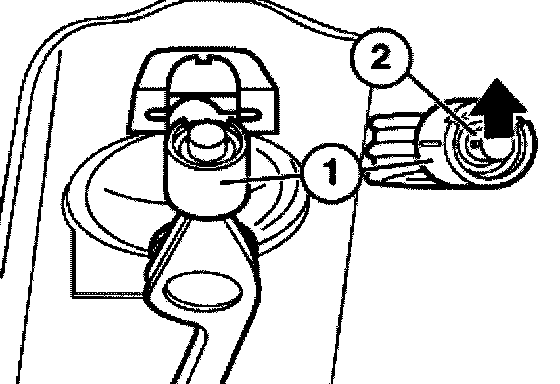

Insert support bearing (1) with arrow (2) pointing up into retainer.





Detach support bearing (1) from shift arm.

Installation:
Grease bearing journal of shift arm.
For grease, refer to BMW Service Operating Fluids.

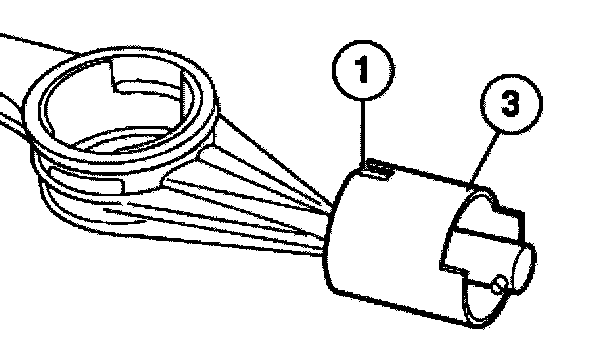

Attach support bearing (1) with opening (3) facing rear to shift arm.
