S5D 320Z Transmission

Replacing Input Shaft Seal

Note: After completion of work, check transmission oil level.

Caution:
^ Use only the approved gear oil in this manual transmission.
^ Failure to comply with this requirement will result in serious damage to the transmission.

Transmission removed. Remove release unit and release lever.





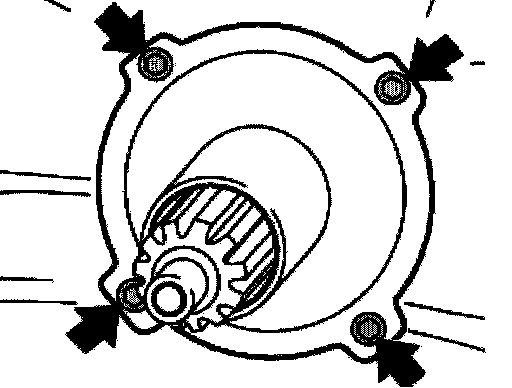

Unfasten screws and remove guide tube.






Note: Two covered removal holes (1) are located on the end face of the radial sealing ring.

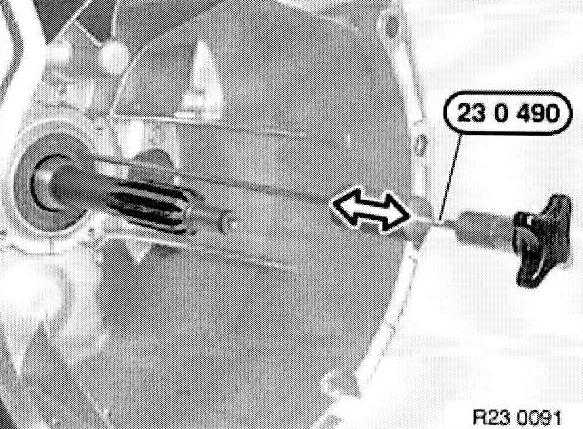

Screw special tool 23 0 490 into one of two removal holes.
Pull radial sealing ring out of transmission housing with impact weight.

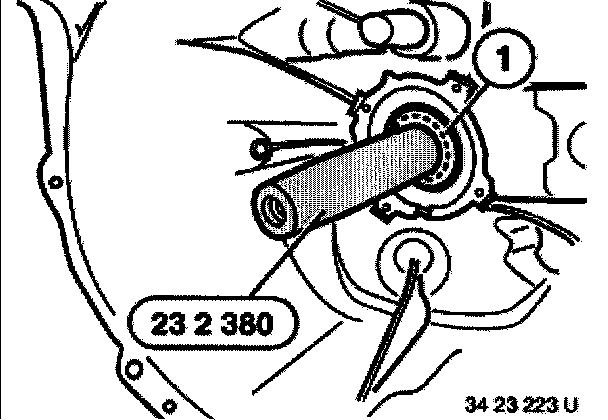

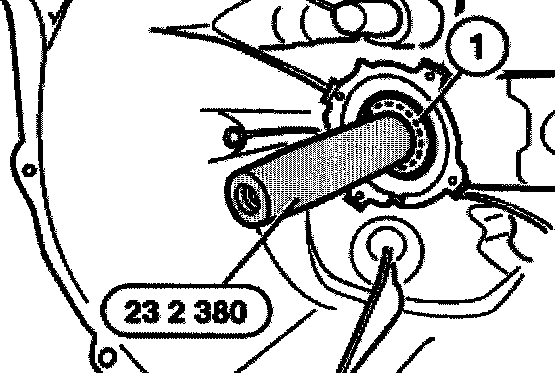

Fit special tool 23 2 380 onto transmission input shaft.
Coat sealing lips of new radial seal (1) with transmission oil and slide firmly home on transmission case.
Remove special tool 23 2 380 from drive shaft.

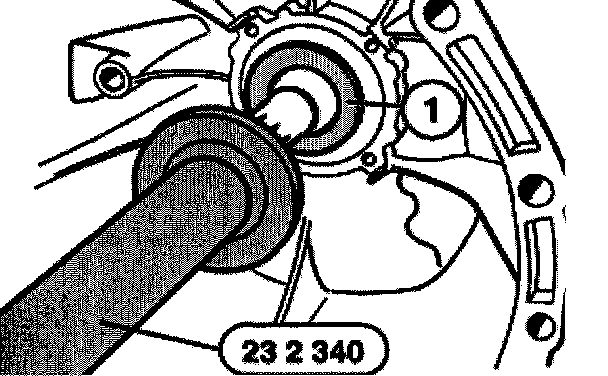

Drive radial seal (1) firmly home with special tool 23 2 340.

Note: To drive in: use a plastic hammer.
