Clutch Release Bearing: Service and Repair

Replacing guide tube for clutch release gear (S5D 310Z / S5D 320Z)
Remove transmission.
Remove clutch release bearing and release lever from guide tube.





Release screws.
Tightening torque, 23 11 2AZ.

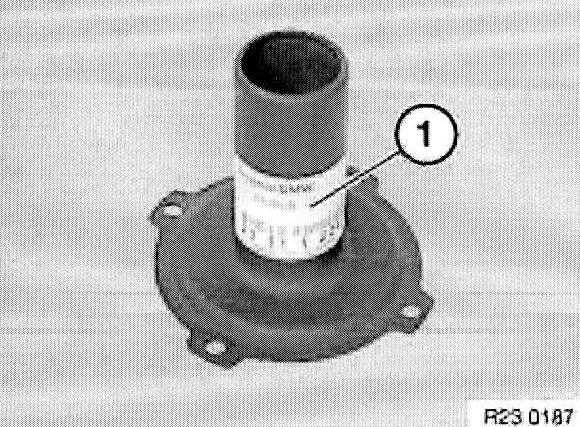

Remove guide tube (1).





Note: Remove all traces of sticker (1) with a suitable solvent.
