Input Parameter, Mixture/Ignition

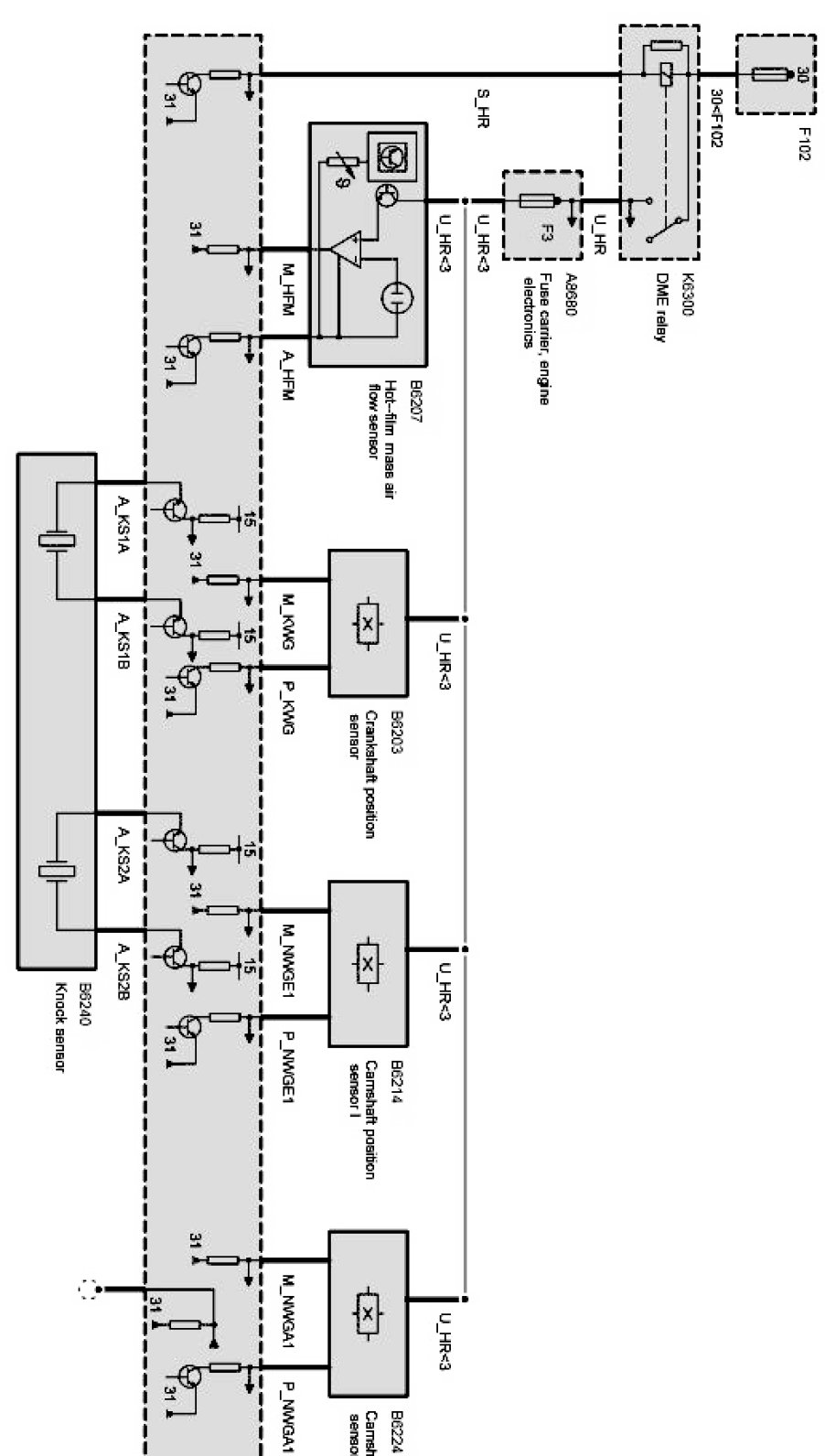

Input parameter, mixture/ignition Part 1:

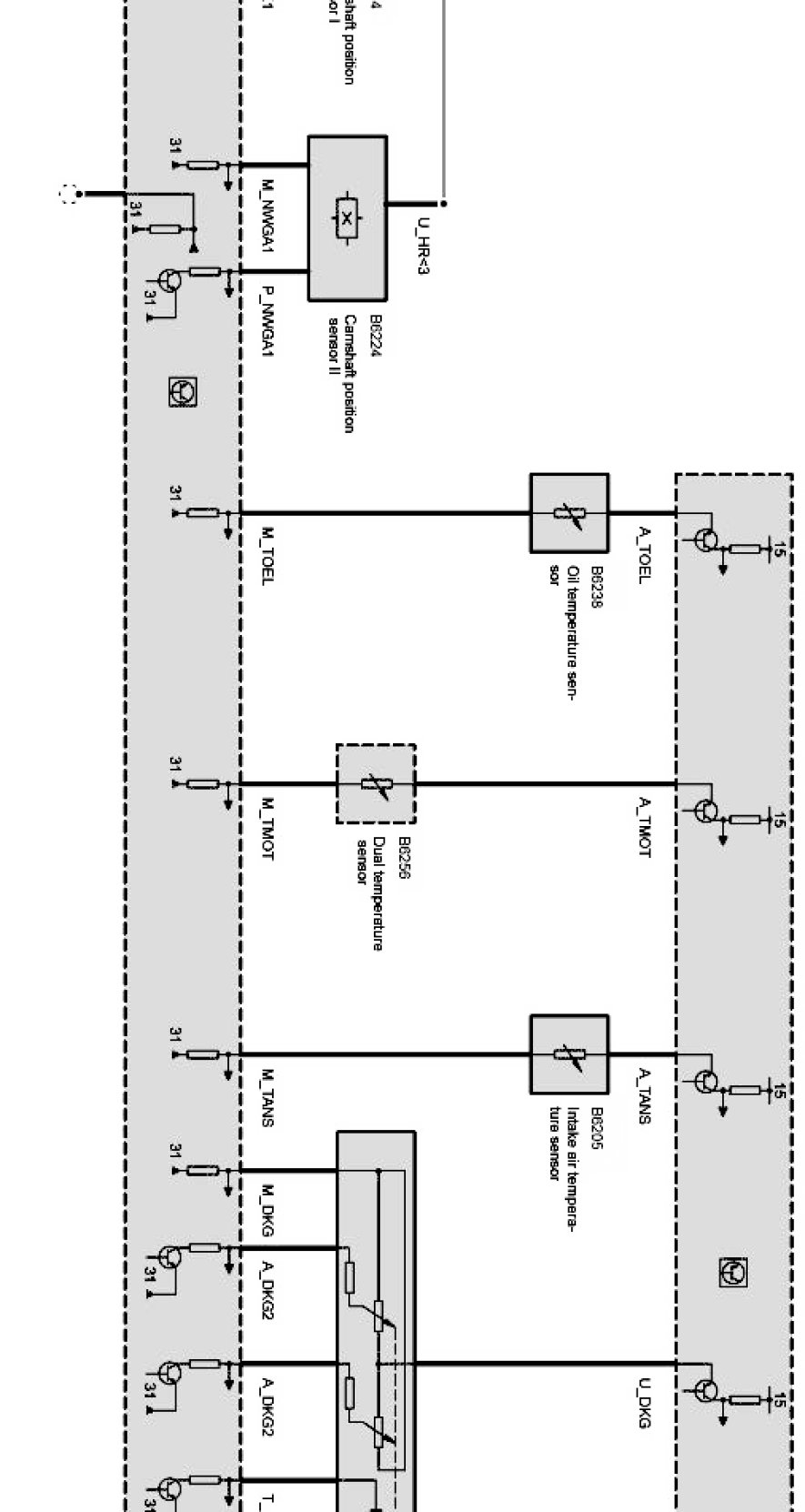

Input parameter, mixture/ignition Part 2:



Input parameter, mixture/ignition Part 3:



Input parameter, mixture/ignition Part 4:
