Home >> BMW >> 2001 >> 330Ci Convertible (E46) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Audio, Video and Navigation >> Navigation (NAV Navigation Computer MKII or NAV Navigation Computer) >> Navigation ((DME Motor Electronics MS42 or MS43 ) W/ Auto Trans W/NAV Navigation Computer W/ DSC MK20)

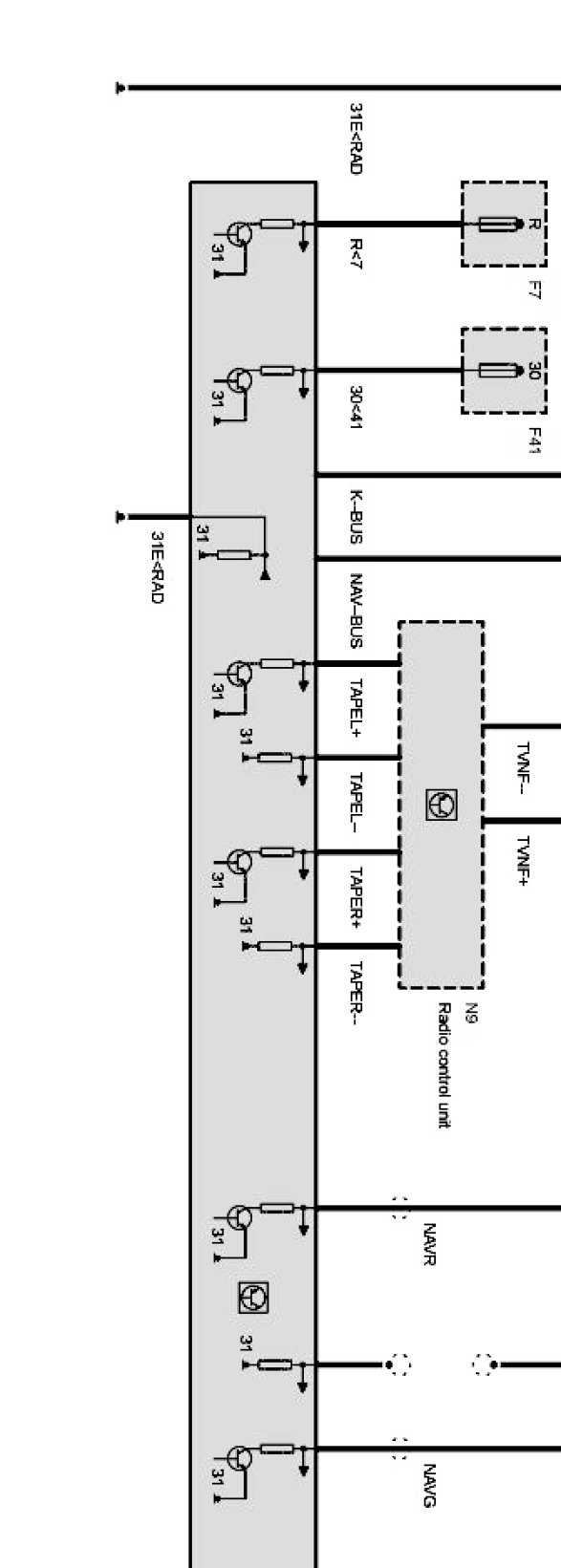

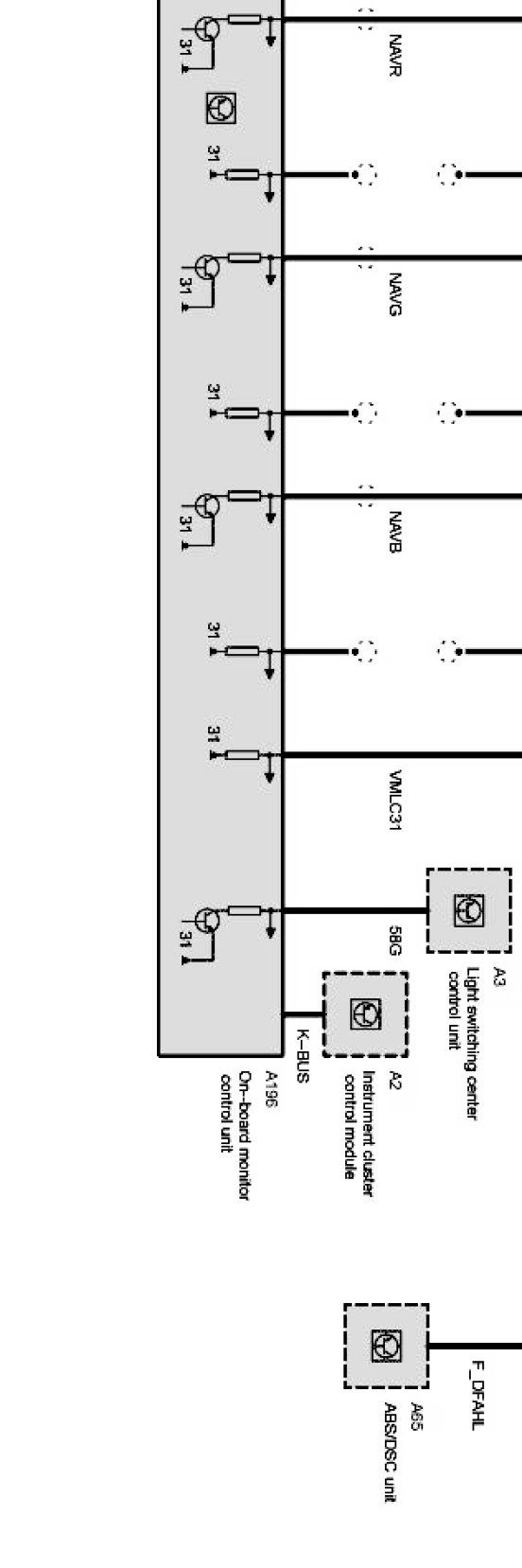

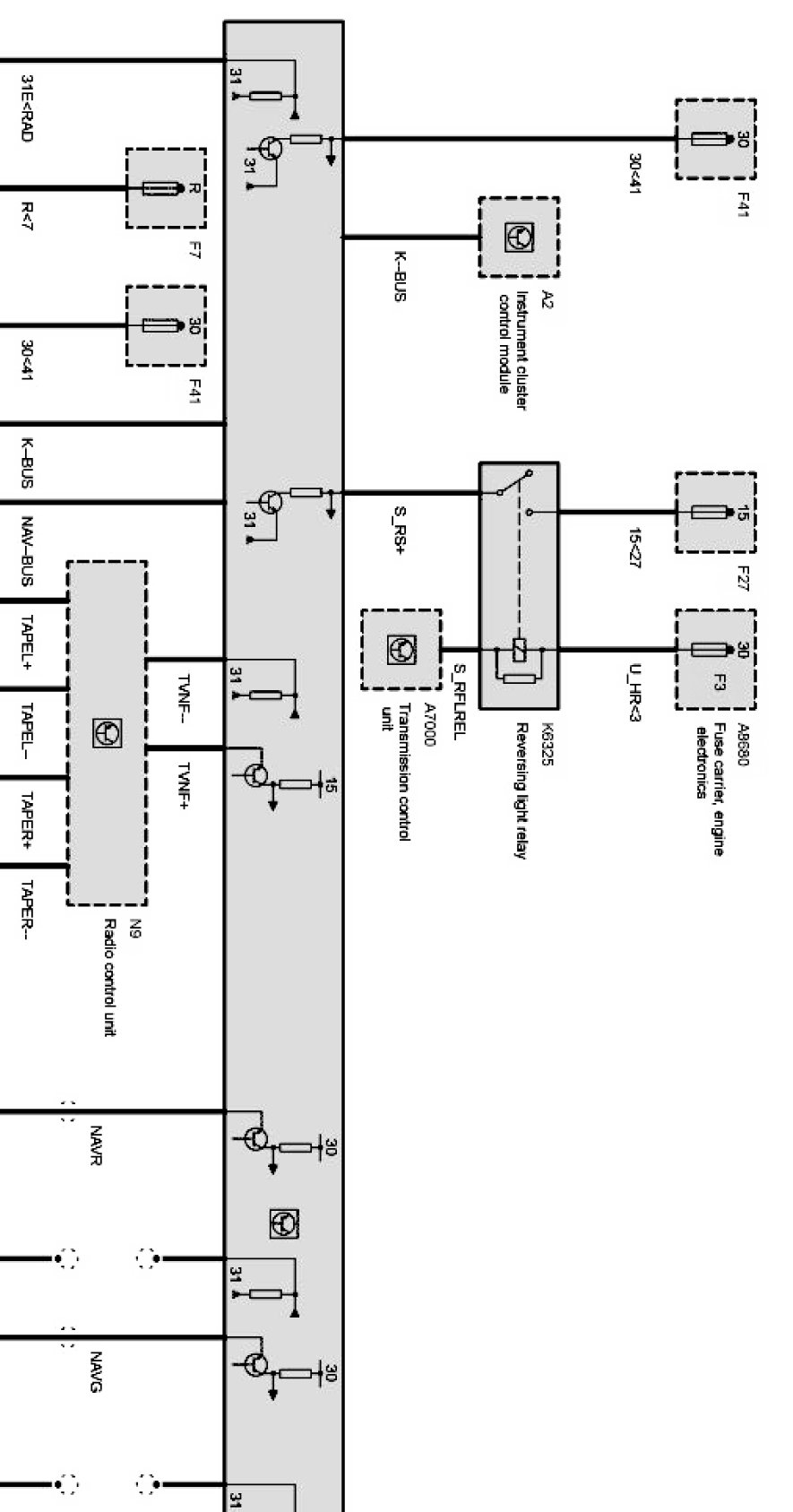

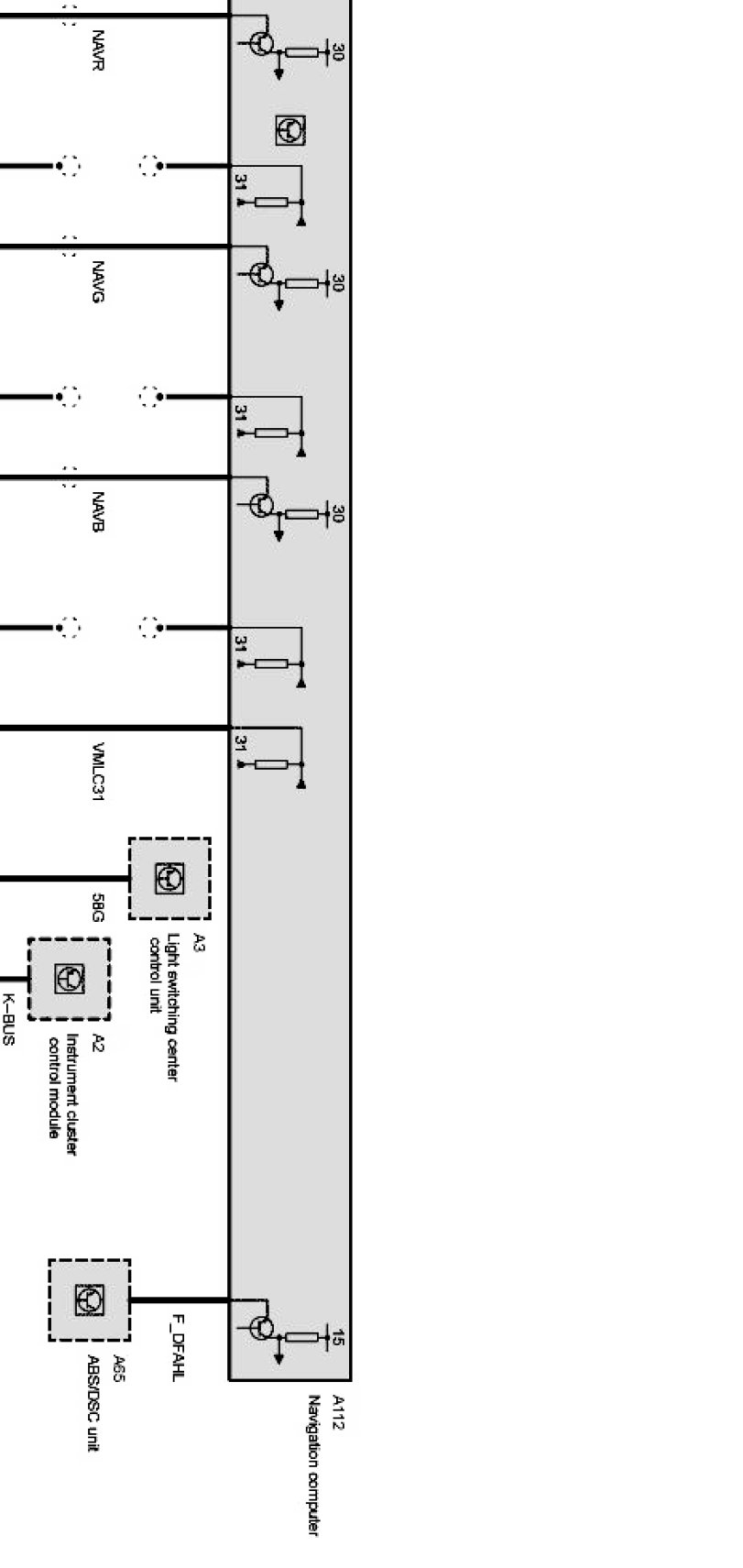

Navigation ((DME Motor Electronics MS42 or MS43 ) W/ Auto Trans W/NAV Navigation Computer W/ DSC MK20)
