Replacement

Remove/replacing left or right output shaft (compact, Z3)

Remove wheel, refer to Steering and Suspension.





Lift out retaining plate.

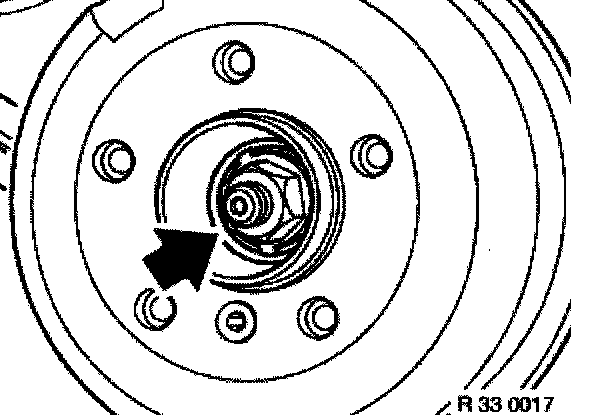

Unfasten nut.





Installation:
Apply light coat of oil to contact face of nut.
Tightening torque, refer to Specifications.

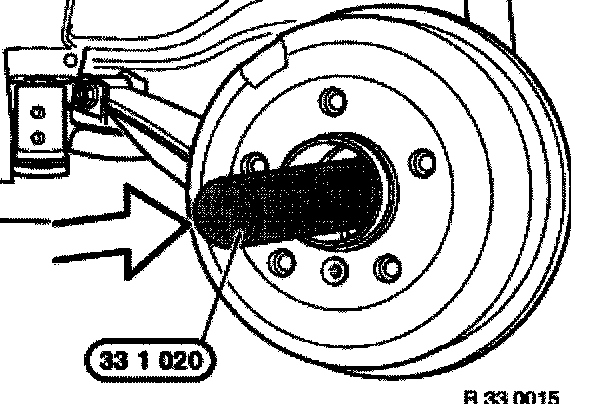

Drive in new retaining plate with special tool 33 1 020.

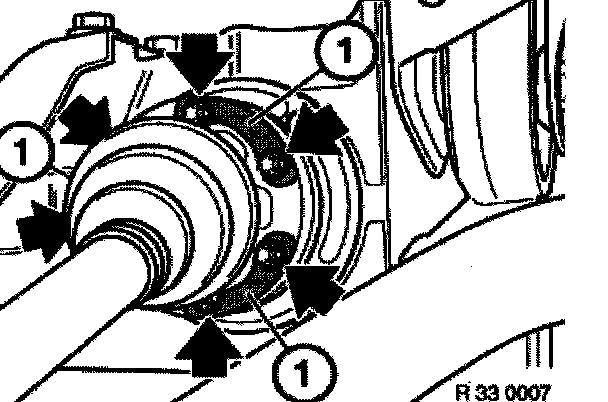

Unscrew output shaft from car and suspend on a piece of wire.

Installation:
Use washers (1).
Tightening torque, refer to Specifications.

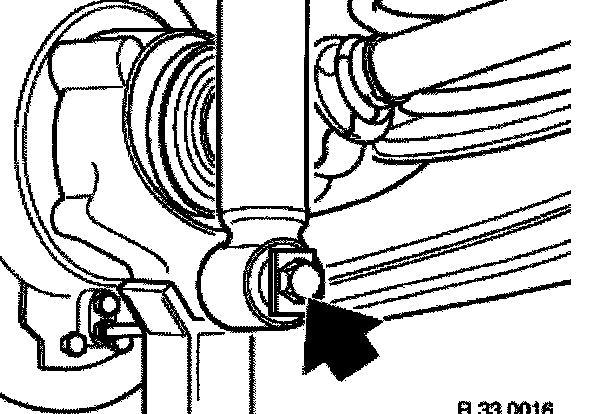

Support semi-trailing arm with a workshop hoist, unfasten screw and lower semi-trailing arm.

Installation:
Tightening torque, refer to Specifications.





Caution:
Prevent the output shaft from falling down.

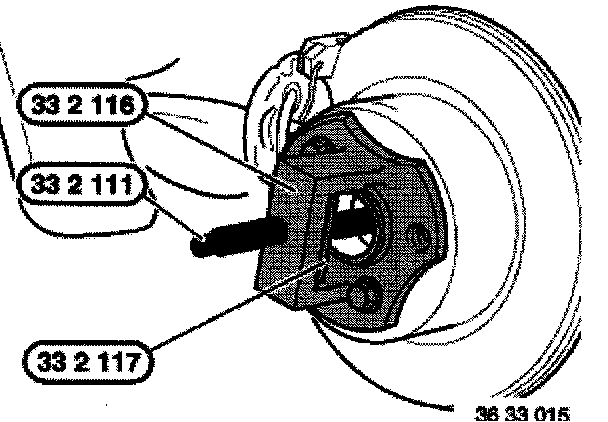

Mount special tools 33 2 111/116/117 with two wheel bolts.
Press out and remove output shaft.

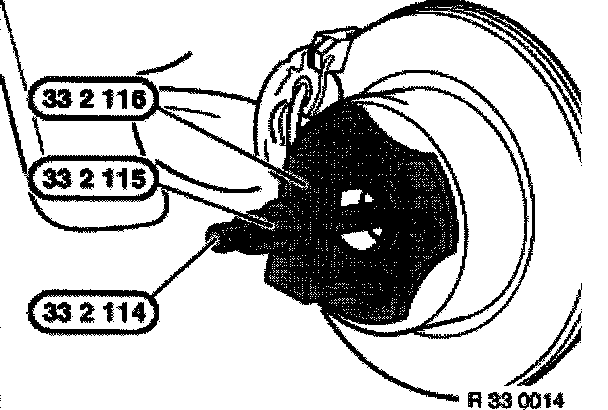

Pull in output shaft using special tools 33 2 114/115/116.
