Stabilizer Bar

(In
Remove or replacing front stabilizer

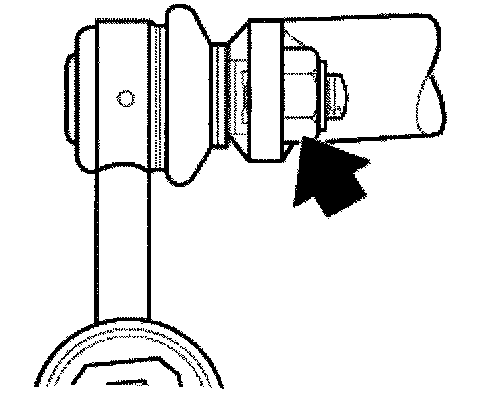

Stabilizer connection on spring strut:
Unscrew left and right nuts.

Installation note:
Wrench surface (1) on ball pin must be parallel to absorber axis.
Replace self-locking nuts. Tightening torque, refer to Specifications.





Stabilizer connection on control arm:
Unscrew left and right nuts.

Installation note:
Replace self-locking nuts. Tightening torque, refer to Specifications.

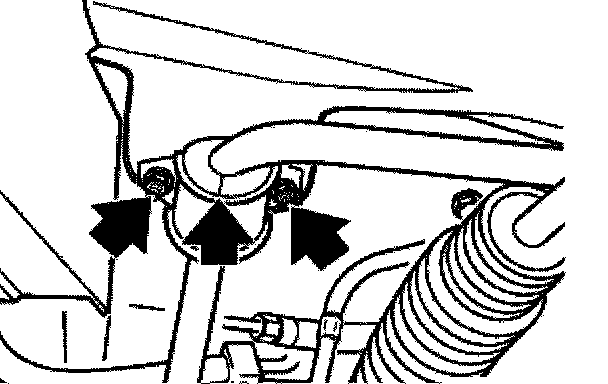

Unscrew left and right nuts.
Take off stabilizer.

Installation note:
Remove grease from rubber mounts and stabilizer.
Open end of rubber mount faces downwards.
Replace self-locking nuts.
- Tightening torque (In normal position) M8: 22 Nm.
- in normal position, refer to Alignment. Service and Repair
