Home >> BMW >> 2000 >> Z3 Coupe (E36/7) L6-2793cc 2.8L DOHC (M52 TU) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Electronic Transmission Control (EGS: A5S 360R) >> Shift Lock, Data Link, Kick-Down Switch

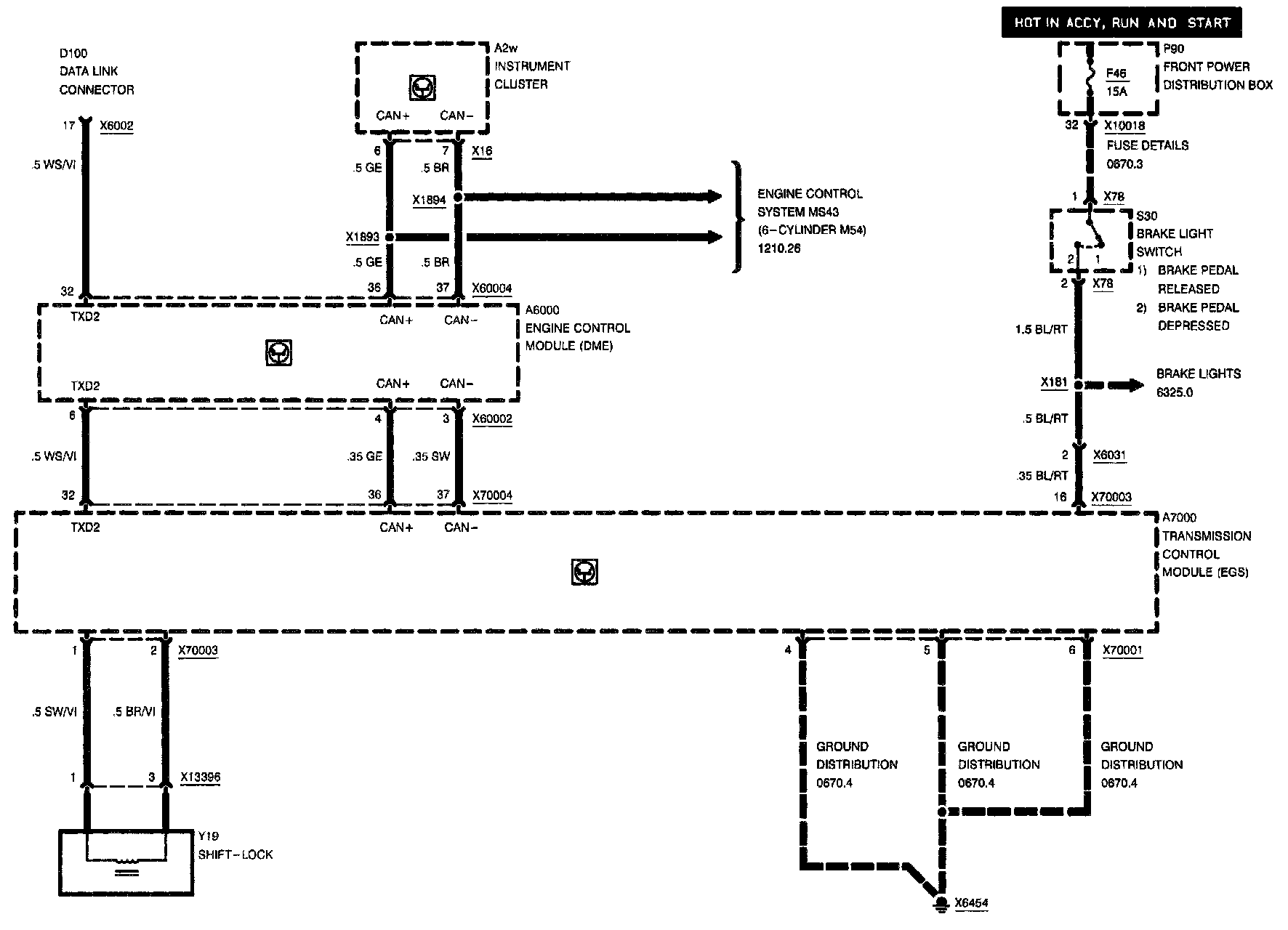

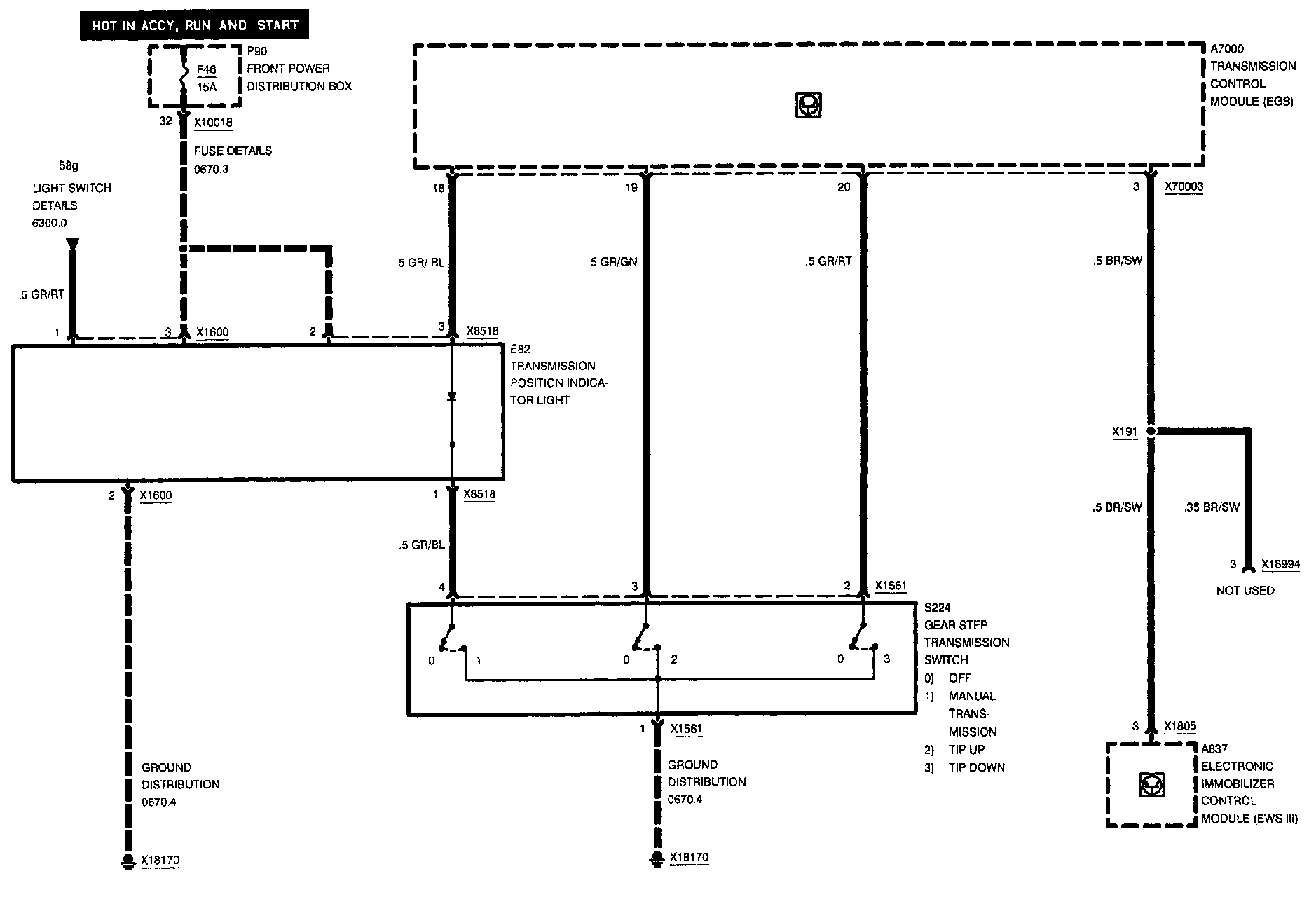

Shift Lock, Data Link, Kick-Down Switch




Shift Lock:









Data Link:









Kick-Down Switch / Valve Unit:
