Special Tools - DSCIII Test Cable

NO.
04 06 00

DATE
February 2000

TITLE
Tools and Equipment

SUBJECT
DSC III Test Cable

MODEL
E46 from 6/99 Z3 from 4/99 E38 from 9/97
E39 5401 from 9/97 E39 5281 from 9/98

SITUATION
Distribution of the following tools will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your PDC. Refer to Parts Information bulletin 01 01 95 for tool warranty details. All prices on this bulletin are introductory prices and are only valid during the Automatic Tool Shipment.





TOOL INFORMATION

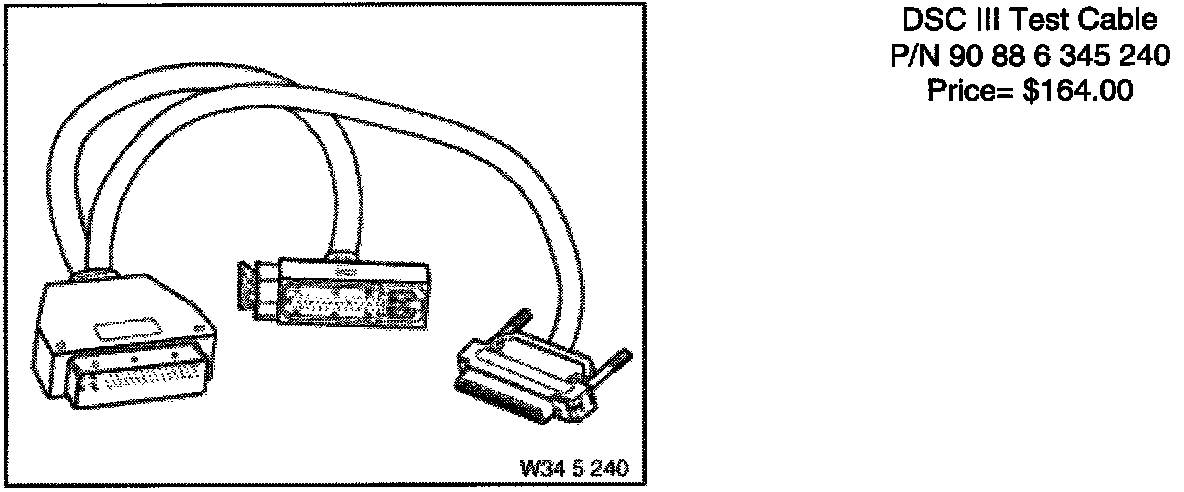

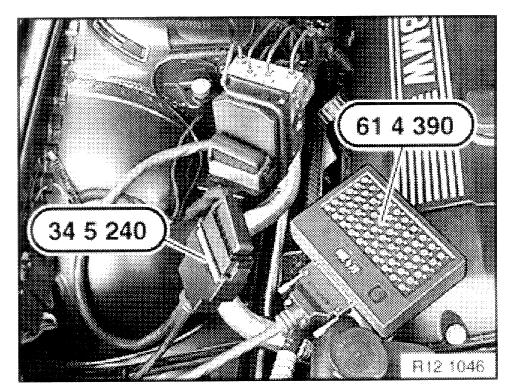

Used in conjunction with break out box 90 88 6 614 390 to troubleshoot the ABS/DSC control module. This test cable has 42 pins.

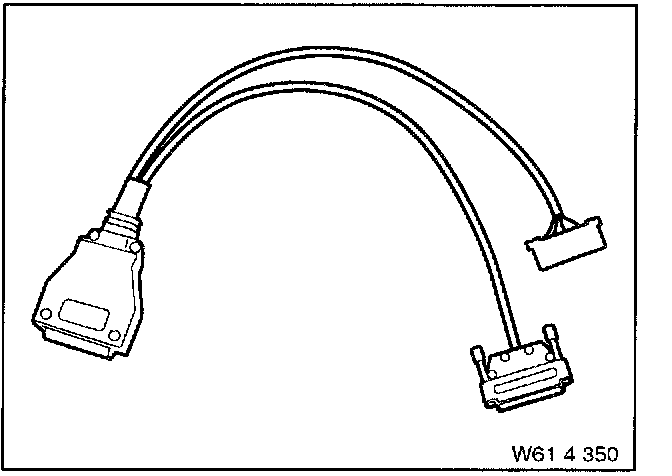

23 pin V adapter test cable
90 88 6 614 350
Price $135.00

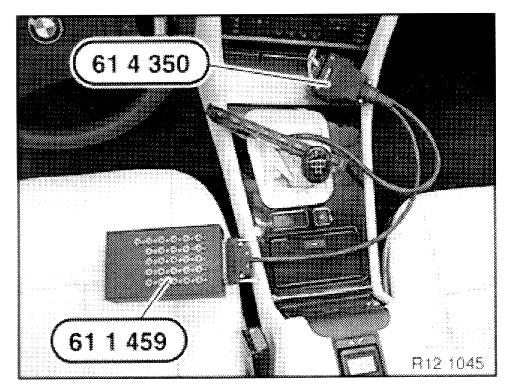

A 23 pin adapter cable used in conjunction with break out box 88 88 6 611 459 to troubleshoot, ELO 2.8 mm and ELO 5.2 mm. connectors.

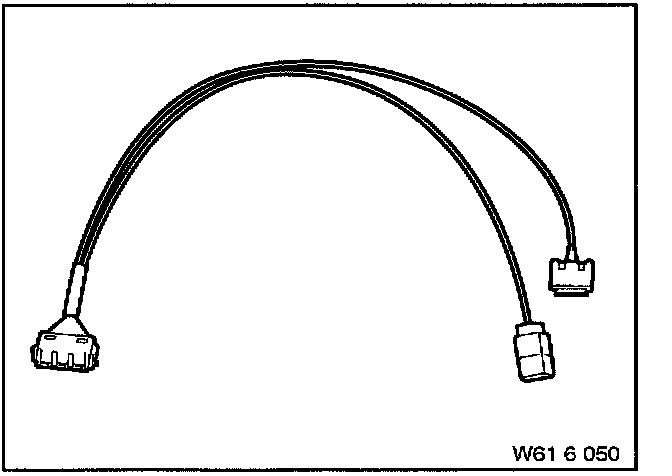

6 pin oval V adapter test cable
90 88 6 616 050
Price = $38.00

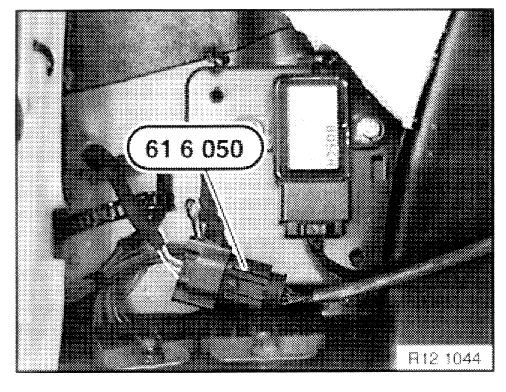

Used to troubleshoot systems with AMP - MQS Micro Quadlock System connectors (Example - rotation rate sensor).

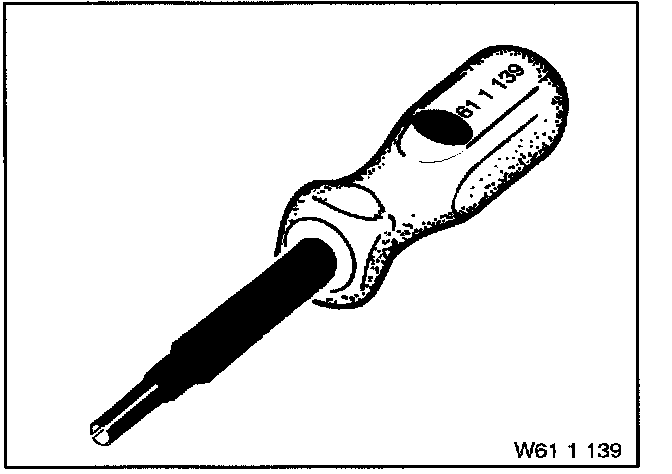

Contact Removal Tool
90 88 6 611 139
Price = $19.95

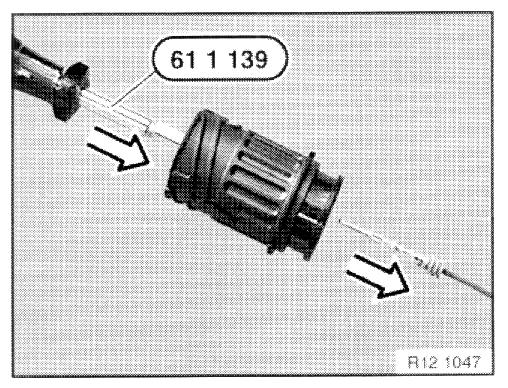

Used to remove 1.5 mm contacts from the housing.

Distribution of the following tool will not be through the Automatic Tool Shipment Program. Tools may be purchased through your PDC. Refer to Parts Information bulletin 01 01 95 for tool warranty details.

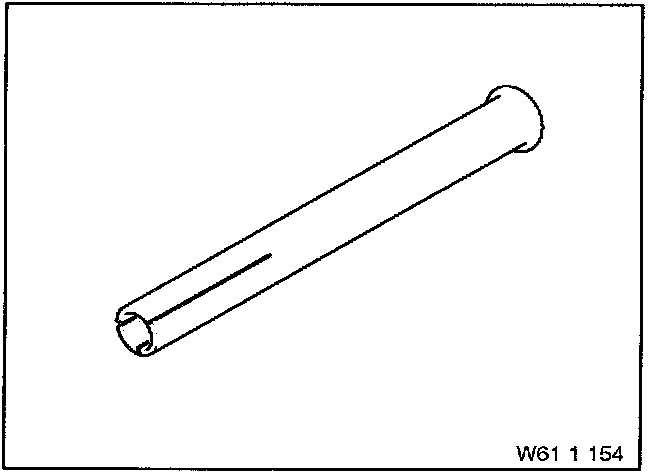

Spare 1.5 mm sleeve
P/N 90 88 6 611 154
Price $2.80

Used to replace the 1.5 mm sleeve on special tool 90 88 6 611 139 if
damaged.
