Data Link Connector, Pins 2 and 19, and OBD II Connector
Data Link Connector, Pins 2 and 19, and OBD II Connector
Data Link : Connector,Pins 2,19,OBD II Connector:

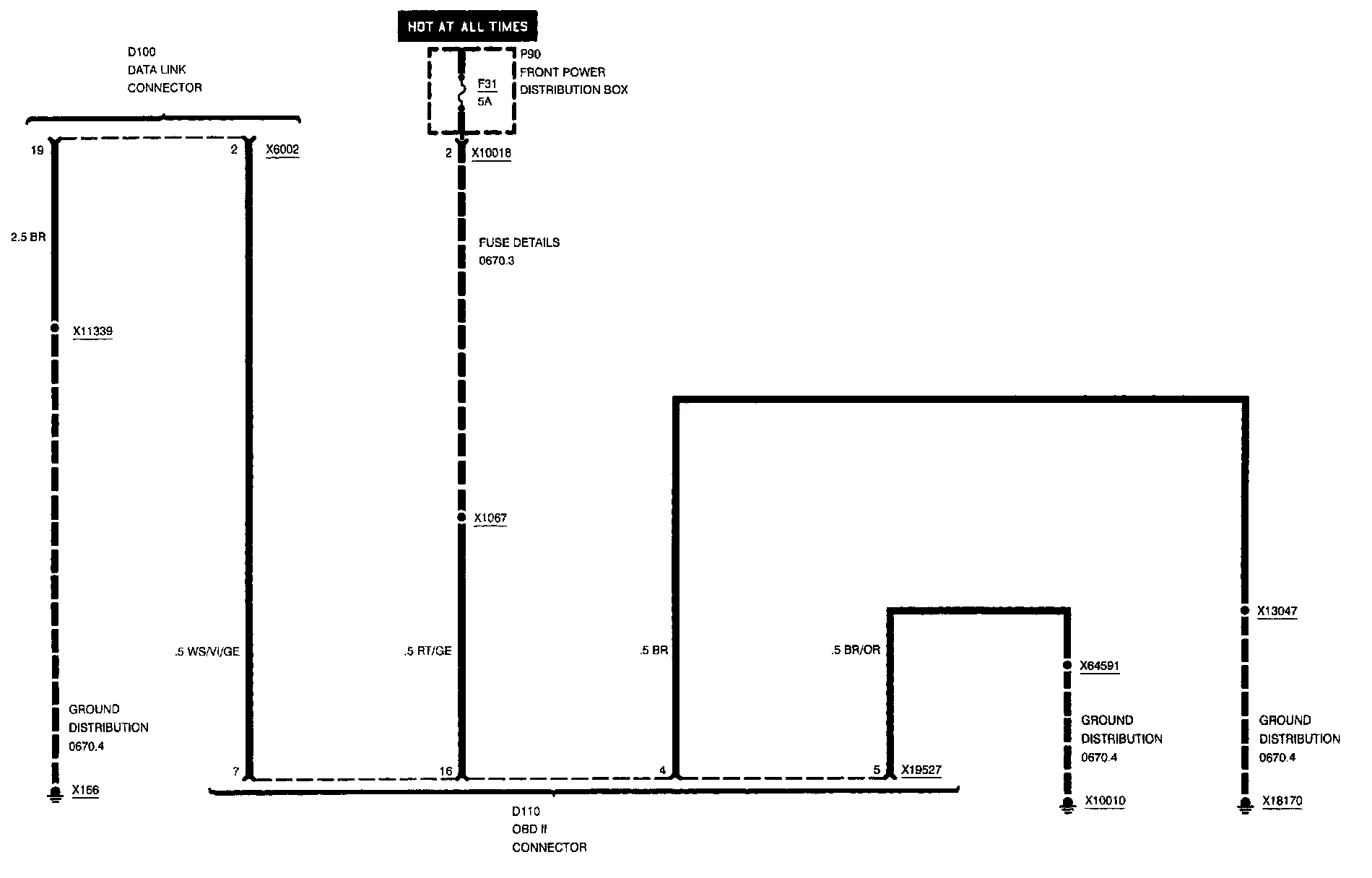

Data Link: Data Link Connector, Pins 2, 19, And OBD II Connector:
