Removing and Installing or Replacing Clutch Operating Cylinder

Remove Or Replacing Clutch Operating Cylinder

Note: After completion of work, bleed clutch hydraulic system.
Refer to 21 00 006.

Remove transmission underbody protection.





Close off supply hose to clutch-sensor cylinder with special tool 13 3 010.

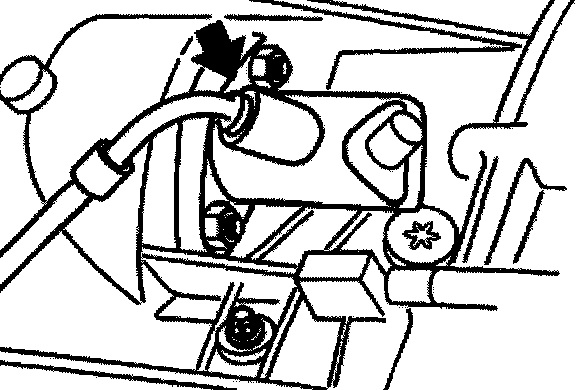

Disconnect pressure line from clutch slave cylinder.

Installation:
For tightening torque.
Refer to Technical Data 21 52 1 AZ

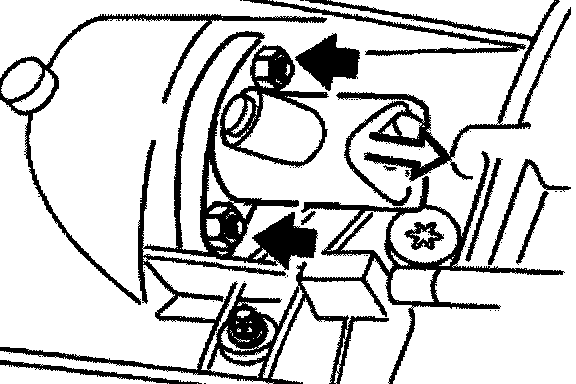

Unscrew nuts.

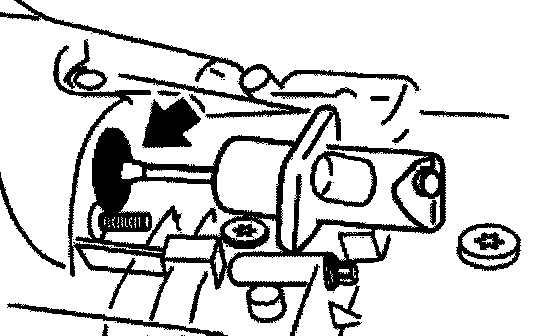

Note: Relieve clutch slave cylinder slowly, as otherwise air may be sucked in via the sealing sleeve.





Installation:
For tightening torque.
Refer to Technical Data 21 52 5AZ

Installation:
Clean pressure pin and support face on release lever.
Apply light coat of grease to pressure pin.
Grease, refer to BMW Service Operating Fluids.

For bleeding clutch hydraulic system see Service and Repair
