Home >> BMW >> 2000 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Fuses 32, 33, 34, and 35

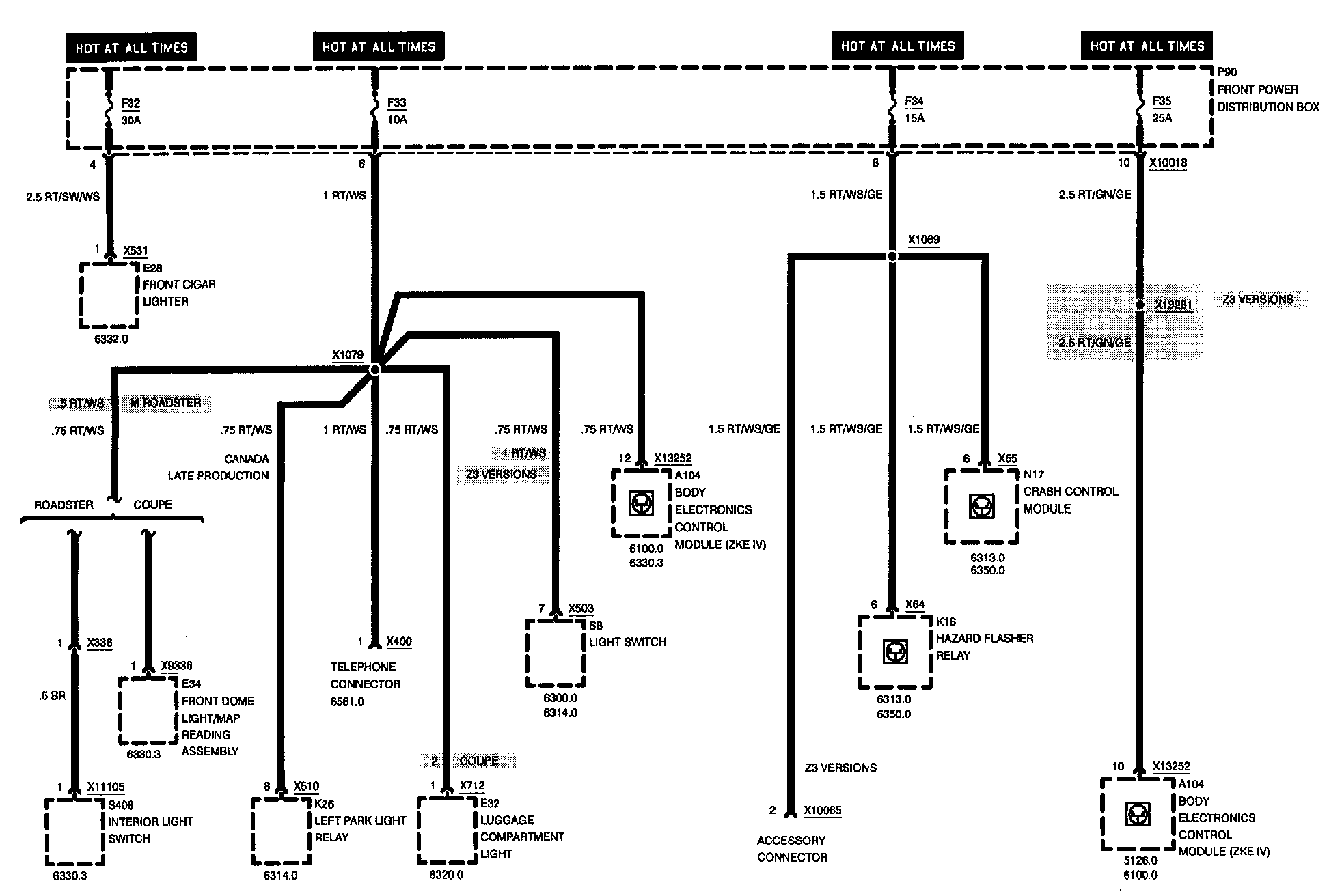

Fuses 32, 33, 34, and 35

Fuse Details : Fuses 32, 33, 34, AND 35:
