Air Bag: Locations

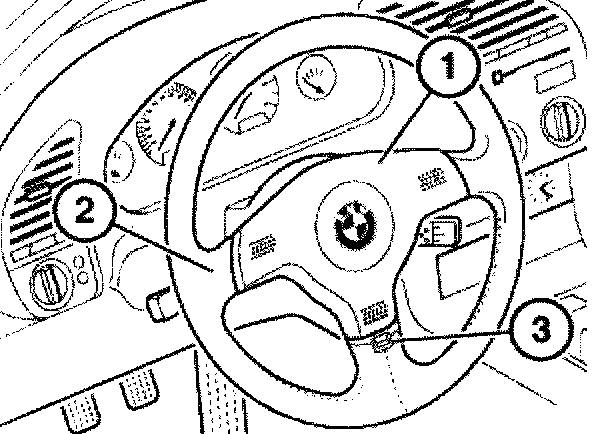

Components:
1. Airbag unit (airbag, gas generator, ignition squib)
2. Steering wheel (contact rings or coil spring, electronics)
3. Indicator lamp
