M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Description and Operation
>>
Climate Control Systems (General Information)
>>

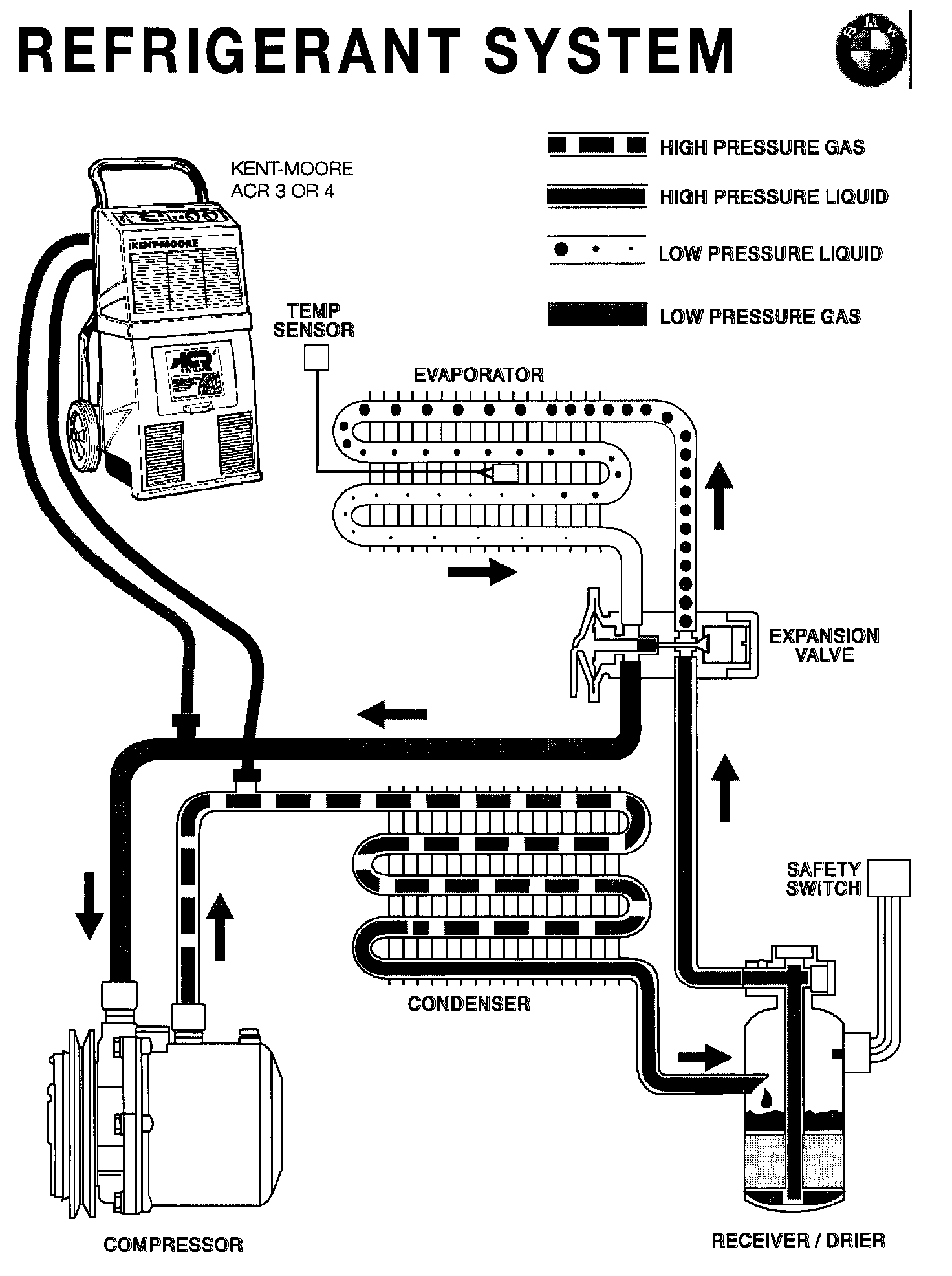

Refrigerant Circuit
Refrigerant Circuit
Refrigerant Chart:
