Replacing Final Muffler


Removing And Installing/Replacing Rear Muffler

Caution!
Support rear mufflers with lifter.

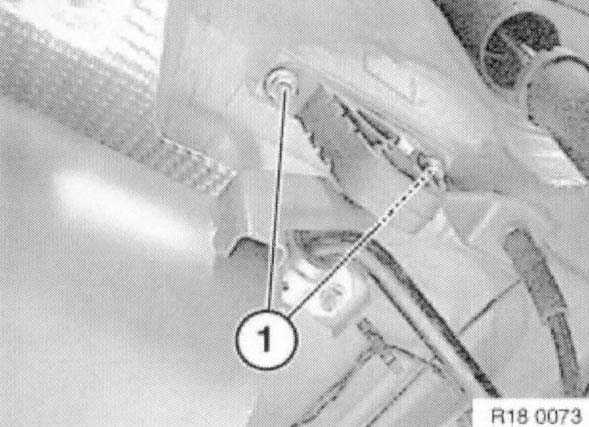

Release screw connections (1) between center muffler and rear muffler.

Installation:
Check gaskets, replace if necessary.
Replace self-locking nuts.
Coat threads with -CRC- copper paste.

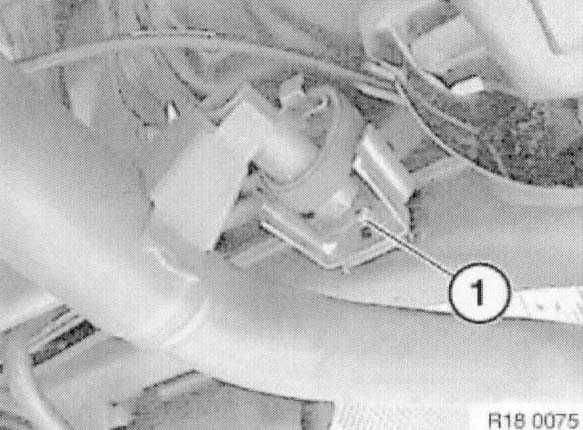

Release screw (1).

Installation:
After full installation of exhaust system, align exhaust brackets until free from tension by moving and then tighten down.

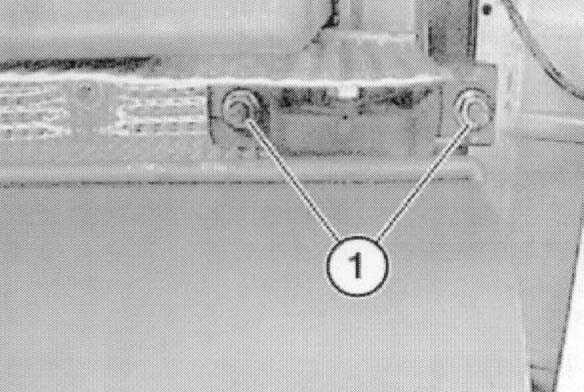

Release hexagon nuts (1).

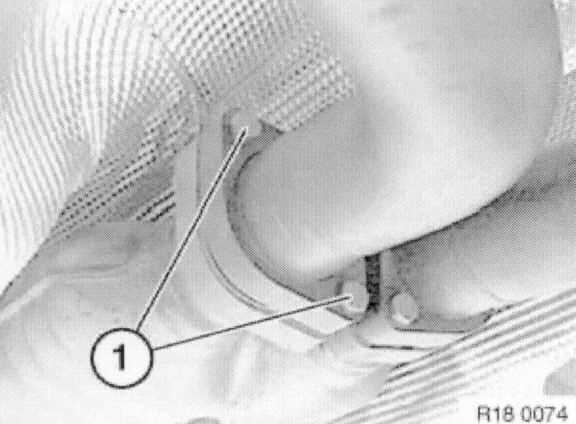

Release hexagon nuts (1).
Remove rear muffler towards bottom.
