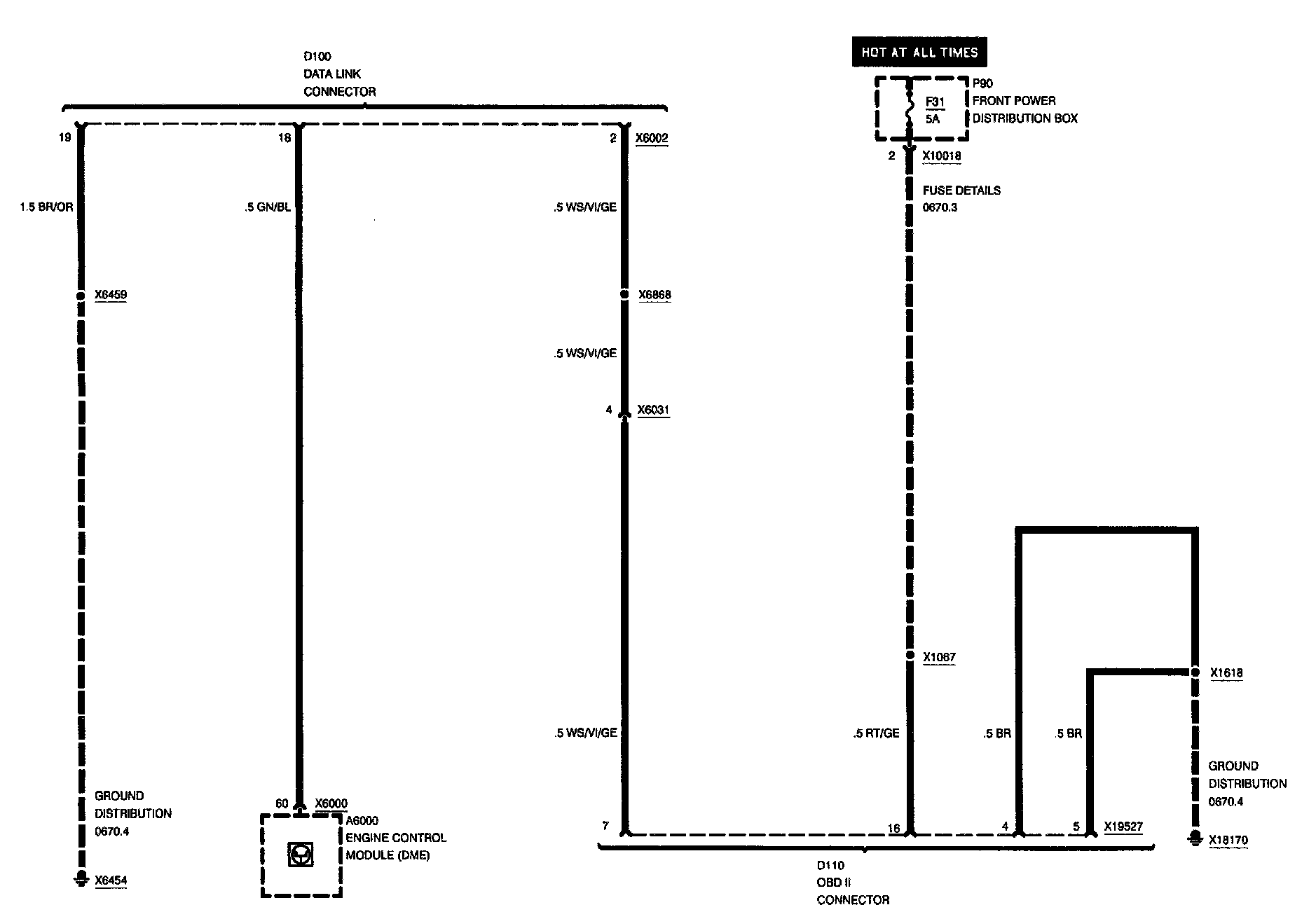

Data Link Connector, Pins 19, 18, 2, and OBD II Connector
Data Link Connector, Pins 19, 18, 2, and OBD II Connector
Data Link : Connector, Pins 19,18,2,OBD II Connector:
