Home >> BMW >> 2000 >> M Coupe (E36/7) L6-3152cc 3.2L DOHC (S52) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> Ground X6454

Ground X6454

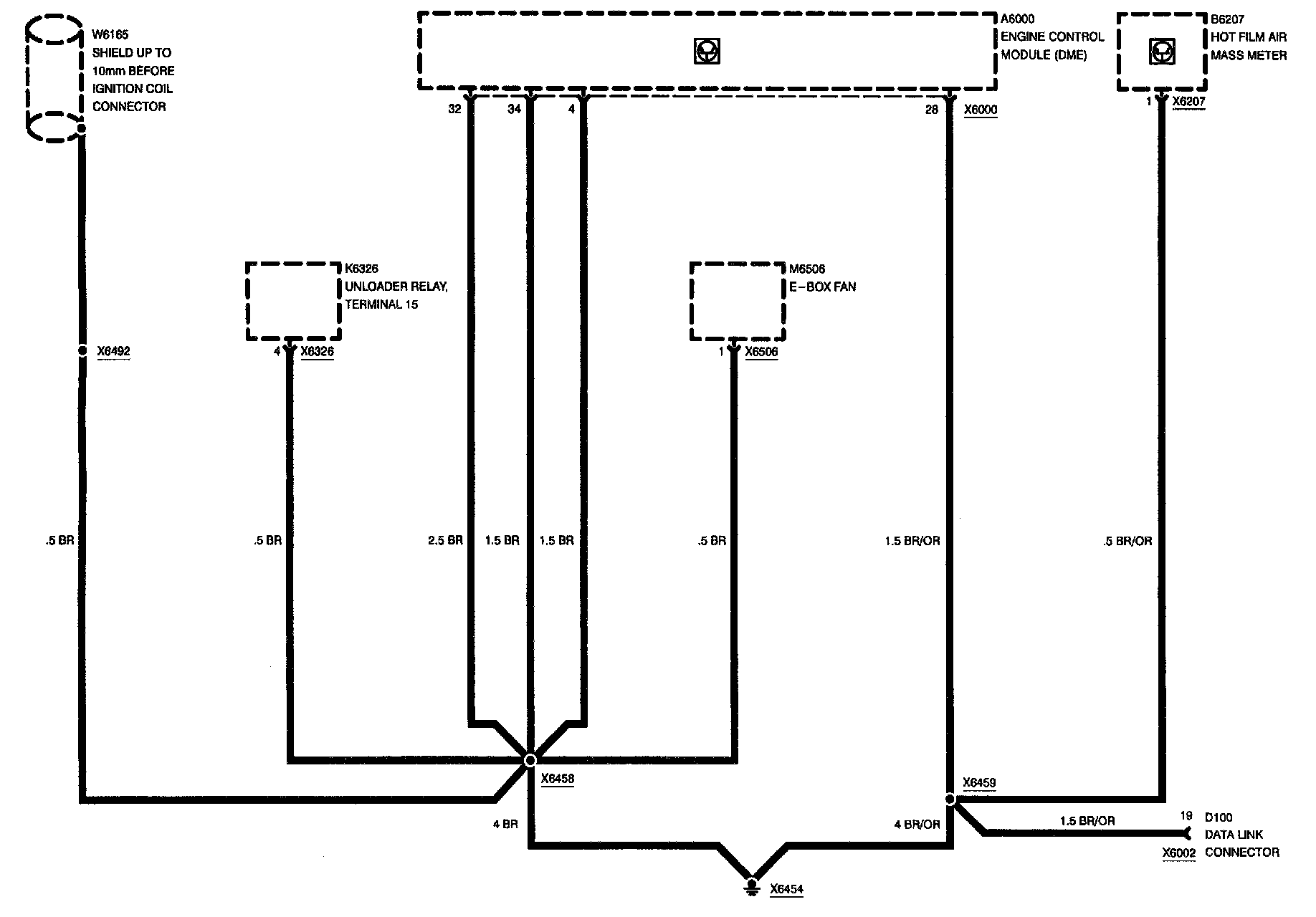

Ground Distribution : Ground X6454:



Ground Distribution : Ground X6454:
