Replacing Panel On Rear Apron At Top

Removing and Installing Panel On Rear Apron At Top (Z3 Coupe, M Coupe)







Open trunk lid and fold back floor mat.
Unlock rotary clips (1) (turn through 90 °) and pull out trim (2) towards interior/top.







Release plastic nuts (1) on left/right.







Lever trims (1) out of openings with special tool 00 9 316 and remove.

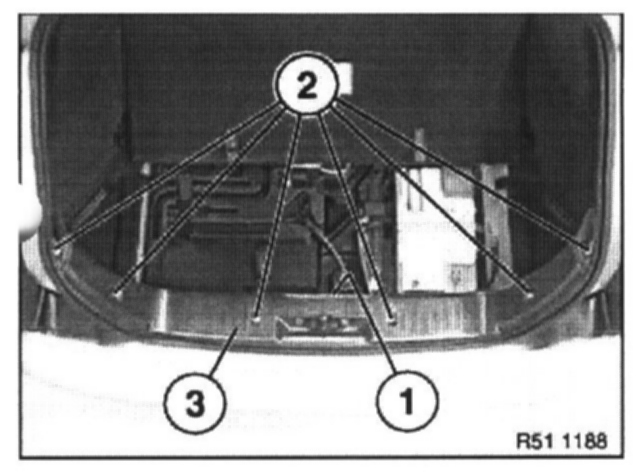

Release expansion rivet (1).
Release screws (2) and remove trim (3) for tail panel at top.
