Passenger Assist Handle: Service and Repair
51 16 480 Removing And Installing/Replacing Front Grab Handle (Z3 Coupe, M Coupe)

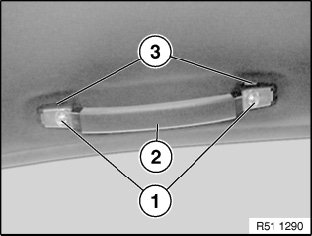

Lift out and remove trim (1).
Unfasten screws (1) and remove grab handle (2) with supports (3).
