Replacing Panel For Roof Pillar At Rear (C-Pillar)

Removing and Installing/Replacing Panel For Roof Pillar At Rear (C-Pillar), Left or Right (Z3 Coupe, M Coupe)

Remove and install breast in luggage compartment at rear,

Service and Repair






Unscrew bolt (1).
Unclip panel (2) for roof pillar at top rear towards interior and remove.







Installation:

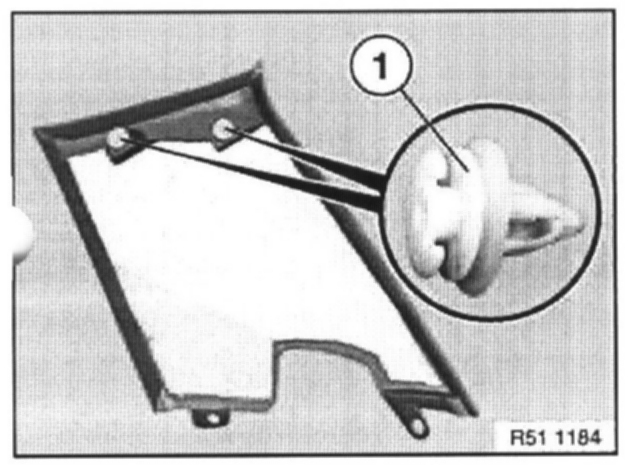

If necessary, replace defective clips (1).
