Fuel Pump Relay: Service and Repair

Replacing Fuel Pump Relay

Turn off ignition.
Remove glovebox on right.

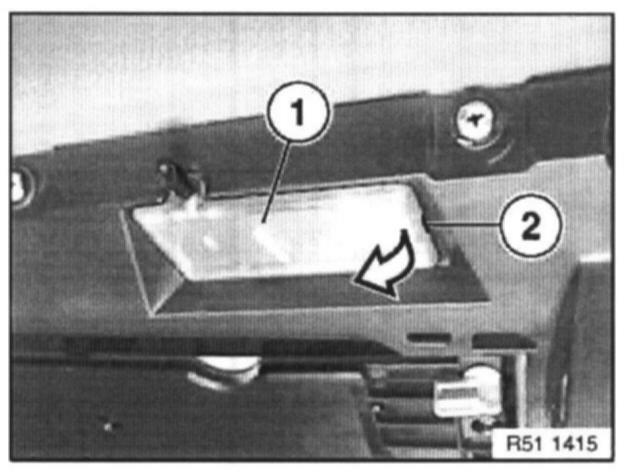

Unclip glovebox light (1) from opening (2).
Disconnect plug connection of glovebox light and remove light.

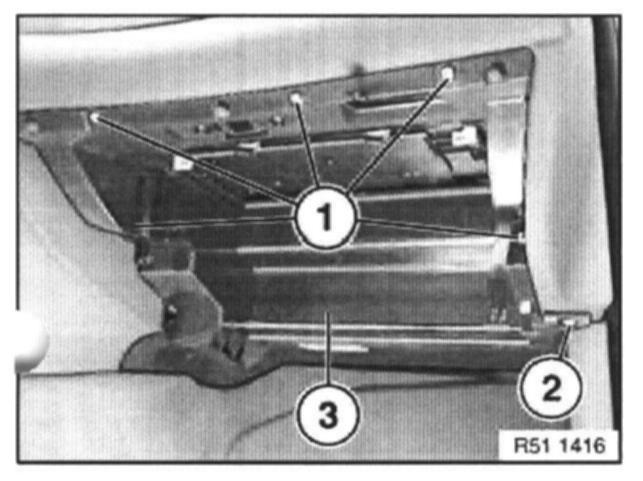

Release screws (1) and pin (2).
Remove insert (3) downwards.

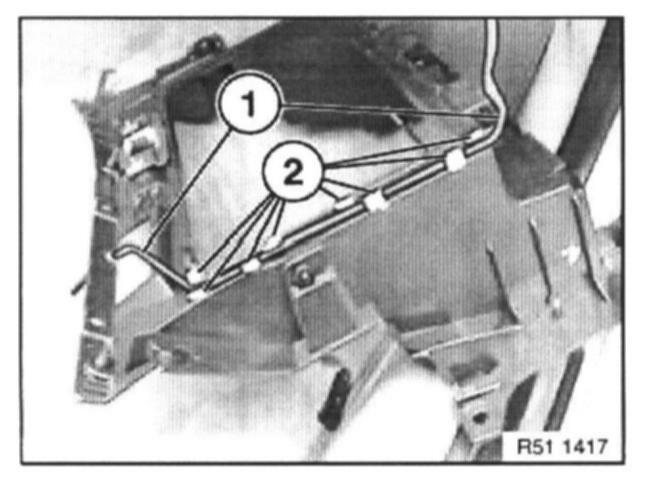

Feed out wire (1) for glovebox light from guides (2).

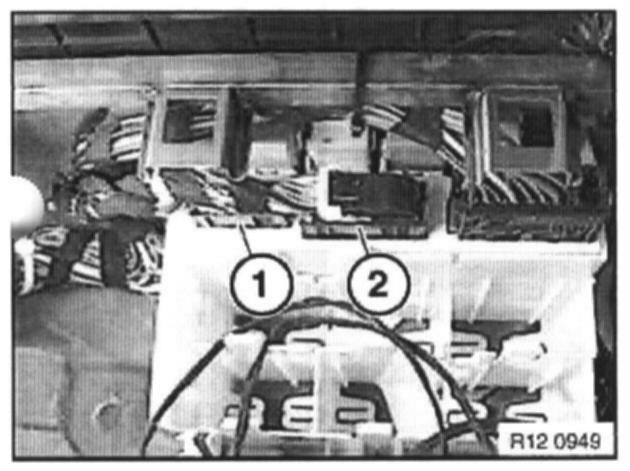

Disconnect plug connections (1 and 2) on general module.

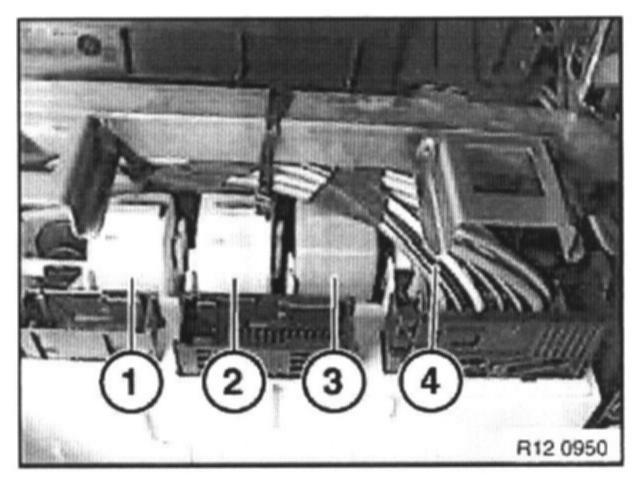

Remove fuel pump relay (1) from pin base.







NOTE:
Interrogate fault memory of DME control module.
Check stored fault messages.
Rectify faults.
Then clear fault memory.

For additional instructions on troubleshooting, refer to DIS.
