Spring Linkage

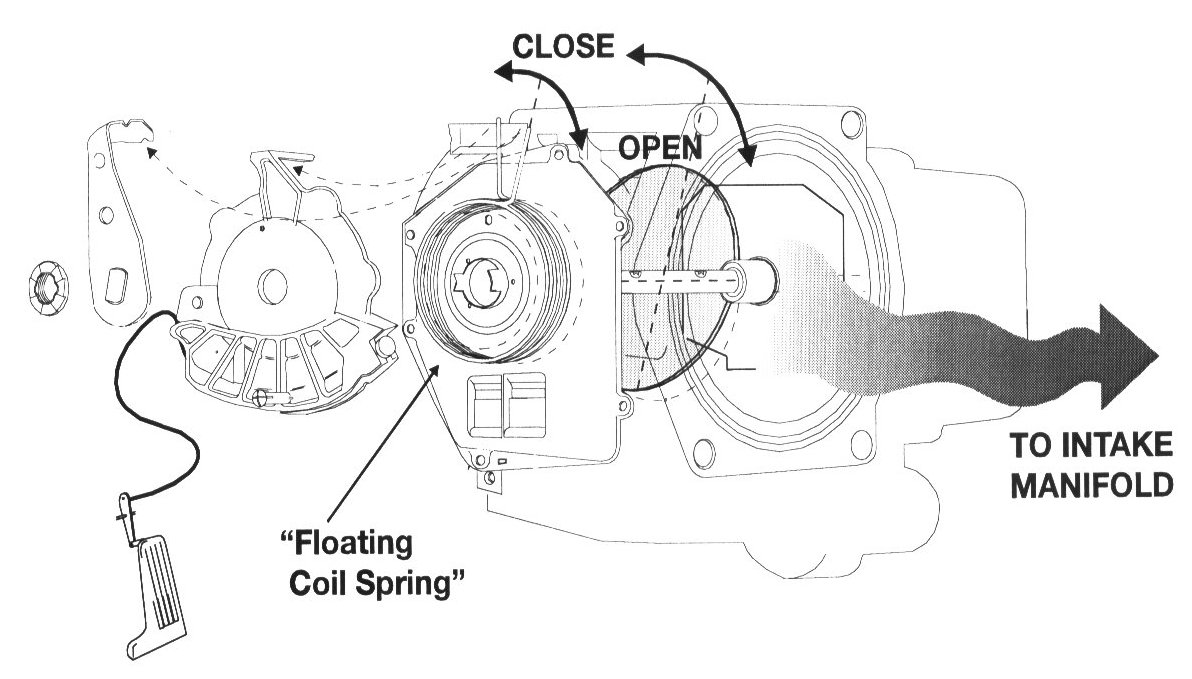

The throttle cable (foot pedal controlled) is connected to a pulley on the side of the MDK. The pulley is linked by springs to one end Of the throttle shaft, the MDK electric motor is attached to the other end of the throttle shaft.

With the pulley linked by springs to the throttle shaft, this allows ASC intervention to override the driver's set throttle position.
