Home >> BMW >> 2000 >> 323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Description and Operation >> Siemens MS 42.0 Engine Control System >> I-P-O >> System Overview I-P-O

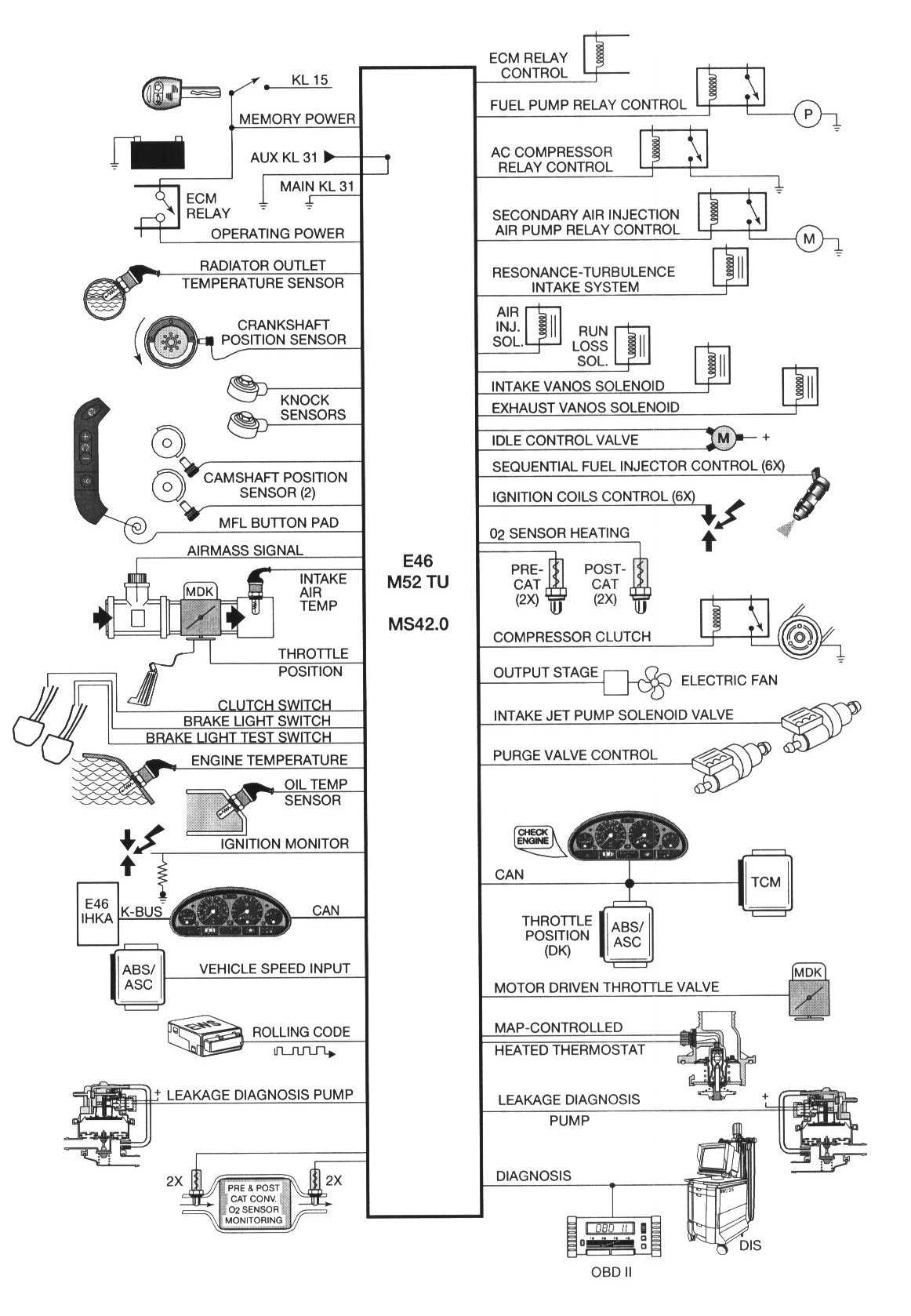

System Overview I-P-O




System Overview I-P-O
