Oil Level Sensor: Service and Repair

Replacing Level Switch For Engine Oil

Turn off ignition.
Release oil filter cap so that engine oil from oil filter can flow back into oil pan.
Remove underbody paneling.
Drain engine oil.

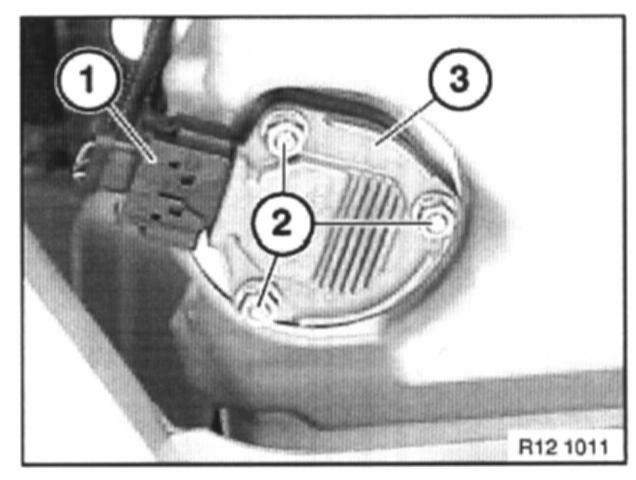

Disconnect plug connection (1).
Release nuts (2).
Remove level switch (3).

Installation:
Clean sealing surface on oil pan and replace level switch seal.







Installation:
Fill system with engine oil.
Resecure oil filter cap.
Tightening to specs.
