Home >> BMW >> 2000 >> 323Ci Convertible (E46) L6-2494cc 2.5L DOHC (M52 TU) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Drive >> Transmission Control >> Transmission Control GS8.60.0 (EGS Transmission Control 8.60.0 or EGS Transmission Control 5HP) >> Output Speed Sensor >> Transmission Control Unit (From 09/99 With DME Motor Electronics MS42)

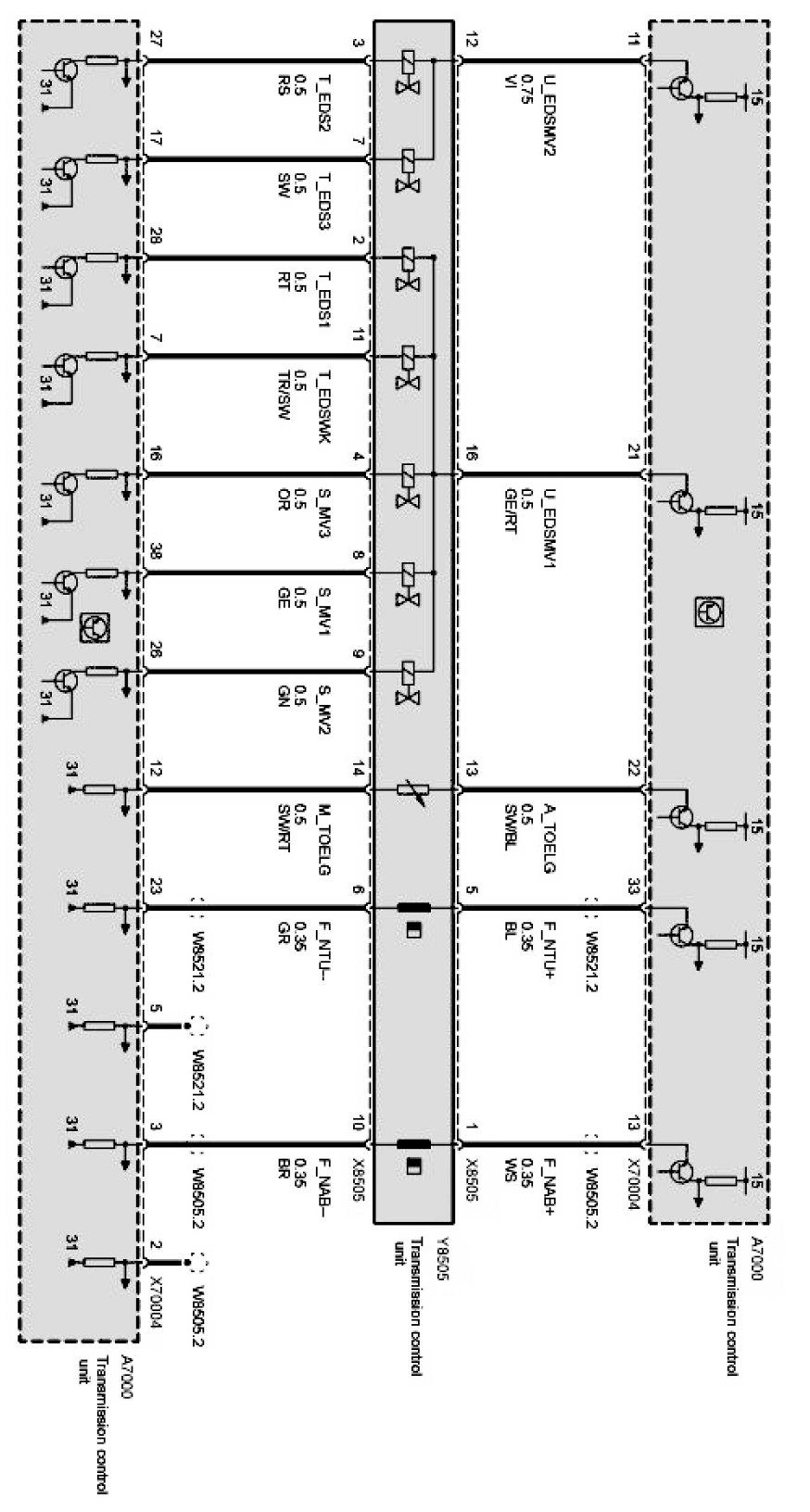

Transmission Control Unit (From 09/99 With DME Motor Electronics MS42)

Transmission shift device:
